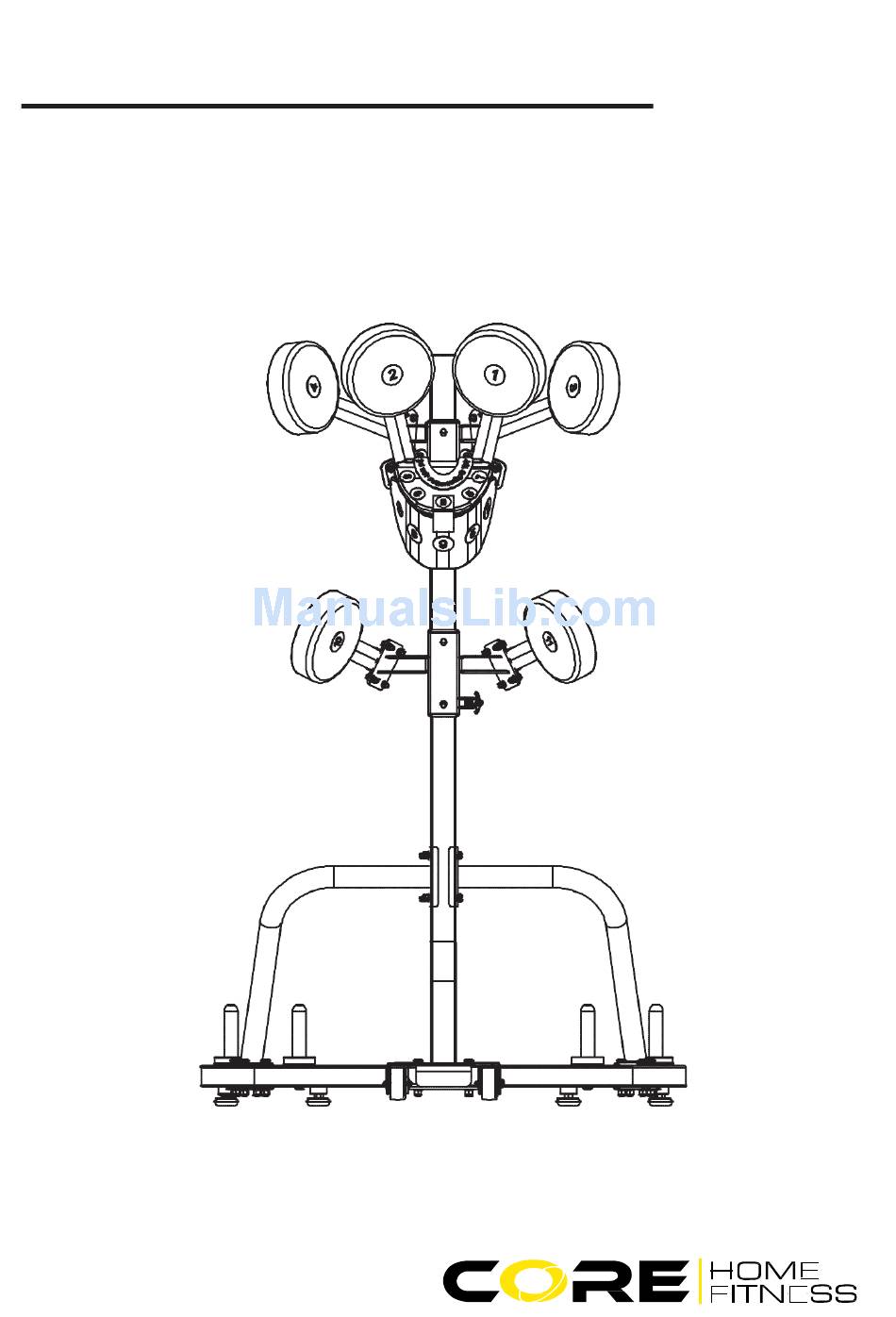

- Page 1 FIGHT MASTER OWNER’S MANUAL Retain This Manual For Reference...
-
Page 2: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN..................……... IMPORTANT SAFETY NOTICES..............…….. 2 FIGHT MASTER WARNING LABEL PLACEMENT………………………………..4 FIGHT MASTER HARDWARE PACK..…............…..… FIGHT MASTER ASSEMBLY INSTRUCTIONS..........……... FIGHT MASTER PAD HEIGHT ADJUSTMENT.........…………..….. 12 FIGHT MASTER WEIGHT PLATE PLACEMENT..........….. 12 FIGHT MASTER EXPLODED DIAGRAM……………………………………………… 14 FIGHT MASTER PARTS LIST……………………………………………... -
Page 3: Important Safety Notices
Additionally, you agree to indemnify, defend and hold Core Home Fitness. harmless from any third party claims arising from such high risk activities or any other Core Home Fitness product. - Page 4 INSTRUCTIONS: 48.6‖ W x 45‖ L x 69.6‖ H 1. Product Dimension: Product Weight: 131 lbs 19.7" W x 70.9‖ L x 8.9‖ H 2. Master Box Dimension: Gross Weight: 151 lbs CARE AND MAINTENANCE 1. Periodically lubricate moving parts with WD-40 or light oil. 2.
-
Page 5: Fight Master Warning Label Placement
FIGHT MASTER WARNING LABEL PLACEMENT... -
Page 6: Fight Master Hardware Pack
FIGHT MASTER HARDWARE PACK... -
Page 7: Fight Master Assembly Instructions
FIGHT MASTER ASSEMBLY INSTRUCTIONS STEP #1 - Assemble the pads assy. a) Remove and unwrap all products from shipping boxes. Lay all parts out in a clean open area to prepare for assembly. b) Locate the upper adjust frame, #1 PAD , metal cleat then use 4pcs Hex bolts, 8 pcs flat Diagram 1 washers and 4 pcs Hex lock nuts and put them in place as shown per below... - Page 8 STEP #2 - Assemble the pads assy. continued a) Locate the lower adjust frame, #10 PAD and metal cleat then use 4pcs Hex bolts, 8 pcs flat Diagram 2 washers and 4 pcs Hex lock nuts and put them in place as shown per below adjust the angel then tighten all the fasteners.
- Page 9 Diagram 3 Diagram 4 STEP #4 –Assemble middle position assy.: a) Locate the middle position assy. gusset plate with single hole 、middle position pad and gusset plate,ø21 then put 4pcs hex bolts , 8pcs flat washers, 4 pcs Hex lock nut, per Diagram5 then tighten all the fasteners.
- Page 10 Diagram5 STEP #5 – Assemble base assy. and main frame assy.: a) Locate the main frame 、 base assy. ( both left and right ) 、 rectangle metal plate then use 4pcs Hex bolts、8pcs flat washers and 4pcs Hex lock nuts in place then tight en the fasteners.
- Page 11 b) Locate bracket assy. (both left and right) , use 2pcs Hex bolts (M10X90) then install it onto main frame. Install left bracket by using 4 pcs Hex bolts (M10X80) and 1pcs rectangle metal plate onto base assy. Right bracket assy. is the same installation way as left. (Diagram 7) c) Tighten all the other fasteners.
- Page 12 STEP #6 –Assemble Assy.: a) Install lower adjust frame assy. onto main frame then adjust its location then tighten the pop pin assy. b) Install upper adjust frame assy. onto main frame then adjust its location then tighten the pop pin assy.
- Page 13 Height Adjustment: a) Unlock the Adjustable Frame (5 and 9) using the Lock Knobs. b) Move the Adjustable Frames to the desired height. c) Lock the Adjustable Frames in place using the Lock Knobs. MAKE SURE THE LOCK KNOB IS LOCKED AND THAT THE LEFT AND RIGHT FRAMES ARE AT THE SAME LEVEL BEFORE USAGE.
-
Page 14: Fight Master Exploded Diagram
FIGHT MASTER EXPLODED DIAGRAM... - Page 15 FIGHT MASTER RACK PARTS LIST Part # Description Remark #1 PAD ASSY #2 PAD ASSY #3 PAD ASSY #4 PAD ASSY Adjust frame, upper Middle position assy. #10 PAD ASSY #11 PAD ASSY Adjust frame, lower Bracket assy.— left Bracket assy.— right Base assy.
-
Page 16: Limited Warranty
LIMITED WARRANTY Core Home Fitness （the “Company” ） warrants this product to be free from defects in workmanship and materials as follows： Who is Covered This Limited Warranty covers only the original purchaser of the product. This Limited Warranty is not transferable to anyone else. - Page 17 Product Category Warrant y Term Limitations Gym Units Frames / Welds- Limited lifetime. Warranted for indoor use only Warranted for indoor use only. 10 and 15 pount plates should not be used on bar alone when dropping bumper plates and barbell to the Weight Plates Limited Lifetime.
- Page 18 CORE HOME FITNESS 8401 Southern Boulevard Youngstown, Ohio 44512, USA E-mail:Support@CoreHomeFitness.com BM100-CHF-01E REV A...
