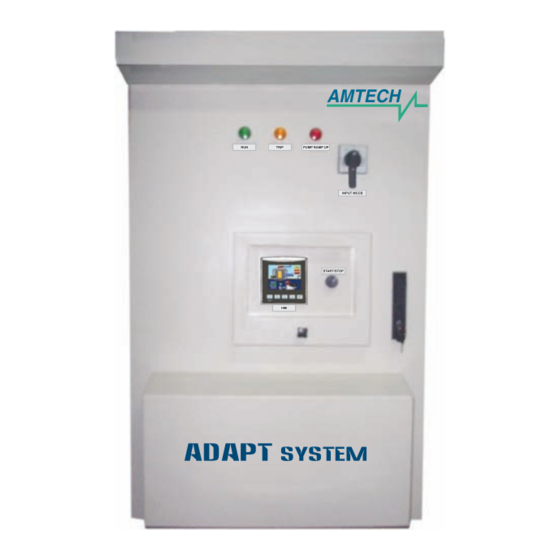

- Page 1 ADAPT System 400V System, 0.5Hp (0.4kW) ~ 100Hp (75kW) NOTICE 1. Read this guide thoroughly before using the ADAPT System, and store in a safe place for reference. 2. Make sure that this manual is delivered to the final user. AMTECH SGAD-01, Rev.
- Page 2 PREFACE THANK YOU for purchasing the “ADAPT SYSTEM”. “ADAPT SYSTEM” offers you the ultimate solution in Sucker Rod Control. It is a smart system that integrates a Variable Frequency Drive and an SRP controller. PLEASE READ THIS MANUAL THOROUGHLY before use, and keep the manual at hand for later reference.
- Page 3 Precautions for Safety Items to be observed to prevent physical damage or property damage and to ensure safe use of this product are noted on the product and in this instruction manual. Please read this instruction manual and enclosed documents before starting operation to ‰...
- Page 4 System Installation:- Panel Mounting: - Unpack the panel & check both keys for Panel & HMI door. Check whether any damage is there or not. Refer the drawing & check each item panel with Bill of material attached with drawing. Mount the panel at sufficient height.
- Page 5 Powering the Panel :- Connect Input 3-phase supply to the input terminal i.e. R, Y, B, Earth. Connect the Drive output terminal to motor i.e. R, Y, and B. Now, switch off the MCB-. Switch ON the mains supply. Switch ON the mains MCCB for 2 second & OFF again to verify the supply to the drive. If drive is started &...
- Page 6 Installation of Drive:- If the drive is started healthy then enter the following listed parameter from the Drive keypad. Default Parameter Æ Æ Æ Æ Set the C 09 – 7 = 9 i.e. Parameter default. Set the A 05 – 0 = 1 Set the A 05 –...
- Page 7 Current feedback goes from AO1 of the drive to the PLC Analog input-1 should be adjusted so that Torque current detected by the PLC & drive becomes same. Basic: - Drive will give the analog output1 as 0 to 5 v for 0 to rated motor current. For e.g.
- Page 8 Contact Us 3852 Oakcliff Industrial Court Doraville, GA. 30340 Phone : 770-469-5240 : 678-894-4043 E-mail : info@amtechdrives.com : www.amtechdrives.com Rep/Distributor Address:...
