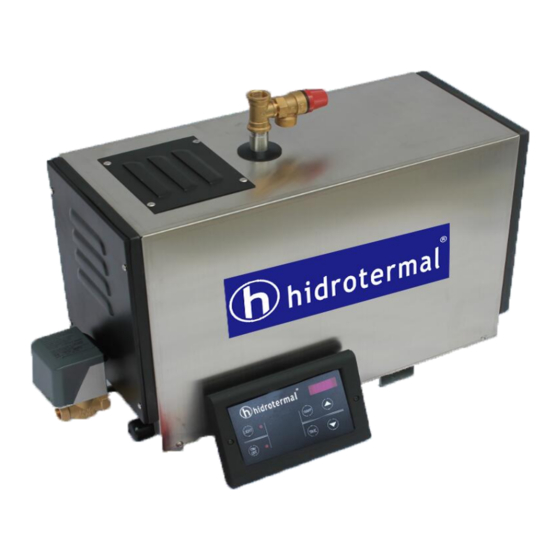

Hidrotermal Hidro-SS Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
STEAM GENERATOR
Hidro-SS Series
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hidro-SS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Hidrotermal Hidro-SS Series

Summary of Contents for Hidrotermal Hidro-SS Series

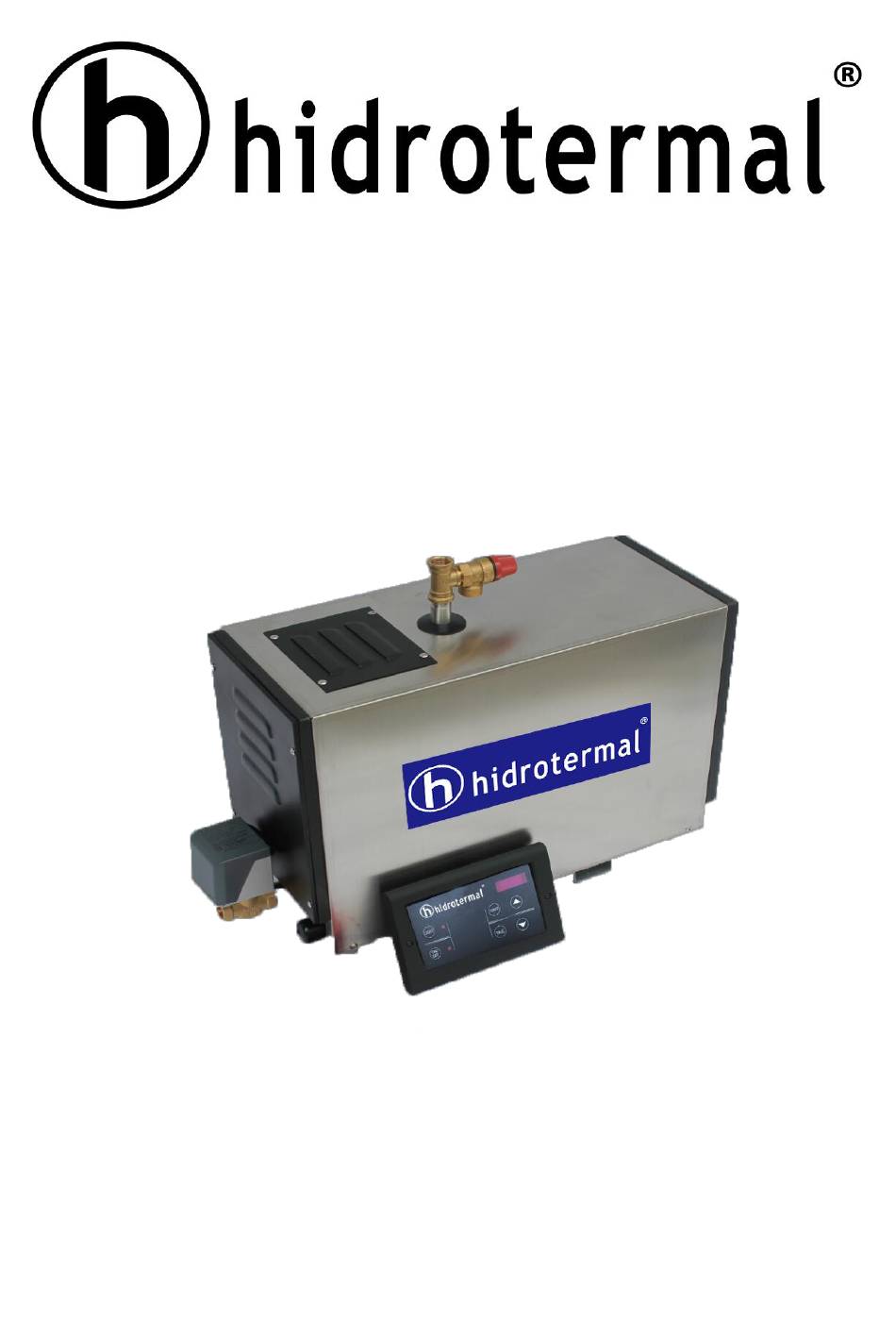

  • Page 1 STEAM GENERATOR Hidro-SS Series USER MANUAL...

  • Page 2: Before You Begin

    BEFORE YOU BEGIN CHECK ALL ELECTRICAL CONNECTIONS TO ALL COMPONENTS WITHIN THE HEATER FOR TIGHTNESS. CONNECTIONS CAN BECOME LOOSE DURING SHIPMENT AND HANDLING. WARNING Only qualified personnel should install and maintain this equipment. Unauthorized alteration or improper maintenance of this unit may release the manufacturer from any warranty claims.
  • Page 3 Introduction Thank you for selecting our stainless steel steam generator. It has rational structure, reliable performance, steady effort, convenient installation, easy control, slinky exterior. There are different specifications of generator for different size of pool, such as Hidro-SS45, Hidro-SS60, Hidro-SS80, Hidro-SS90, Hidro-SS120, Hidro-SS150, Hidro-SS180. The controller -HD135T is combined with multiple functions.

  • Page 4: Controller Specifications

    Steam Generator Specifications Power Voltage Current Wire Room Dimensions Model Phase (kw) (N×mm² ) (CBM) (mm) 220V 20.5 Hidro-SS45 220V 11.8 4*2.5 380V 5*2.5 220V 27.3 Hidro-SS60 220V 15.7 380V 5*2.5 500×230×400 220V 31.8 Hidro-SS70 220V 18.4 380V 10.6 220V 36.4 Hidro-SS80 220V...
  • Page 5 1. Installation and Procedure A) The steam generator should be installed in a dry, well ventilated location, and provided adequate drainage. You can install the steam generator under a closet, attic, shelf, or basement. And it must be locked without movement. Please See Figure1. B) This series steam generator can be installed on the wall or on the floor, but the unit must be level precisely.
  • Page 6 2. Install the pipe ( See Figure 2): All plumbing shall be installed by a qualified plumber. A. Connect the water inlet via ball valve by 1/2” metal hose pipe for water supply. B. Connect the steam line with 1/2"copper tube for steam release. (CANNOT use the metal or zincification pipe to replace the copper tube).
  • Page 7 3. Installation of controller and temperature probe. A) The controller should be installed outside of the steam room with convenience access for operations. Please install it as near as possible to the room's door. The recommended height is 1.5meter above from the ground. See Figure 3 B) Dig a hole in the wall with size 40x80mm before installation.
  • Page 8 Check all the connections and make sure everything is correct before turning on. All the functions of steam generator is controlled by the controller. see figure4. 4-2. Temperature and time preset A) ON/OFF: Power light. Turn on the steam generator by power button. The function light is on, temperature window indicates the steam room temperature.

  • Page 9: Installation

    5. Auto-draining System New strong automatic draining system, it can auto-back flush to wipe out scale completely, reduce the mineral accumulation and extension the service life extremely. Actuat Rinse Auto-draining valve Water inlet current Two- 5-1. Installation A) Set up the Two-ways valve and Actuator together, then install it to the water outlet -rinse valve.

  • Page 10: Daily Maintenance

    6. Maintenance 6-1. Daily Maintenance During daily operation, the auto-draining system will let the water flush the water tank for 1 minute each time when machine stops working. 6-2. Periodic Maintenance Regular checking is requested to avoid the leakage or parts damage for the steam head, pressure relief valve, accessories, connections of hermetic parts.

  • Page 11: Troubleshooting Guide

    7. Trouble Shooting Guide There are user serviceable parts in the generator. All repairs should be performed by a qualified service person. The Trouble Shooting Guide below is for general reference only. PROBABLE CAUSES ACTION TO BE TAKEN SYMPTOMS 1. Steam generator hasn't been 1.
  • Page 12 8. Chart of Connection Steam 4.5~9kW 220-240V 1ph~ / 2x110V 1ph ~ Steam Generator Steam Generator Live wire Live wire 2x110V 1ph~ 220-240V 1ph~ Max 9kW Max 9kW Steam 12-18kW 220-240V 1ph~ / 2x110V 1ph ~ 2x110V 1ph~ 220-240V 1ph~ Live wire Live wire...
  • Page 13 Steam 4.5~18kW 220-240V 3ph~ Steam 4.5~18kW 380-400V 3ph~ 380-400V 3ph~...
  • Page 14 9. Choose a Right Steam Generator For comfort and leisure, to choose a correct steam generator is same important as to design the steam room. A. Considerations in Choosing a Model 1. Water Quality More impurities or minerals in water, should the steam generator be rinsed more often. Automatic cleaning should be taken into consideration so as to save manual labors if the water quality is poor.
  • Page 15 10. How to build a steam bath room Generally, steam rooms are built with glass steels or acrylic materials and building materials. Easy installation and good insulation characterize both the glass steels and acrylic materials. However, they are sufficiently poor heat resistant, especially easily break and get damaged, while the cost is high.
