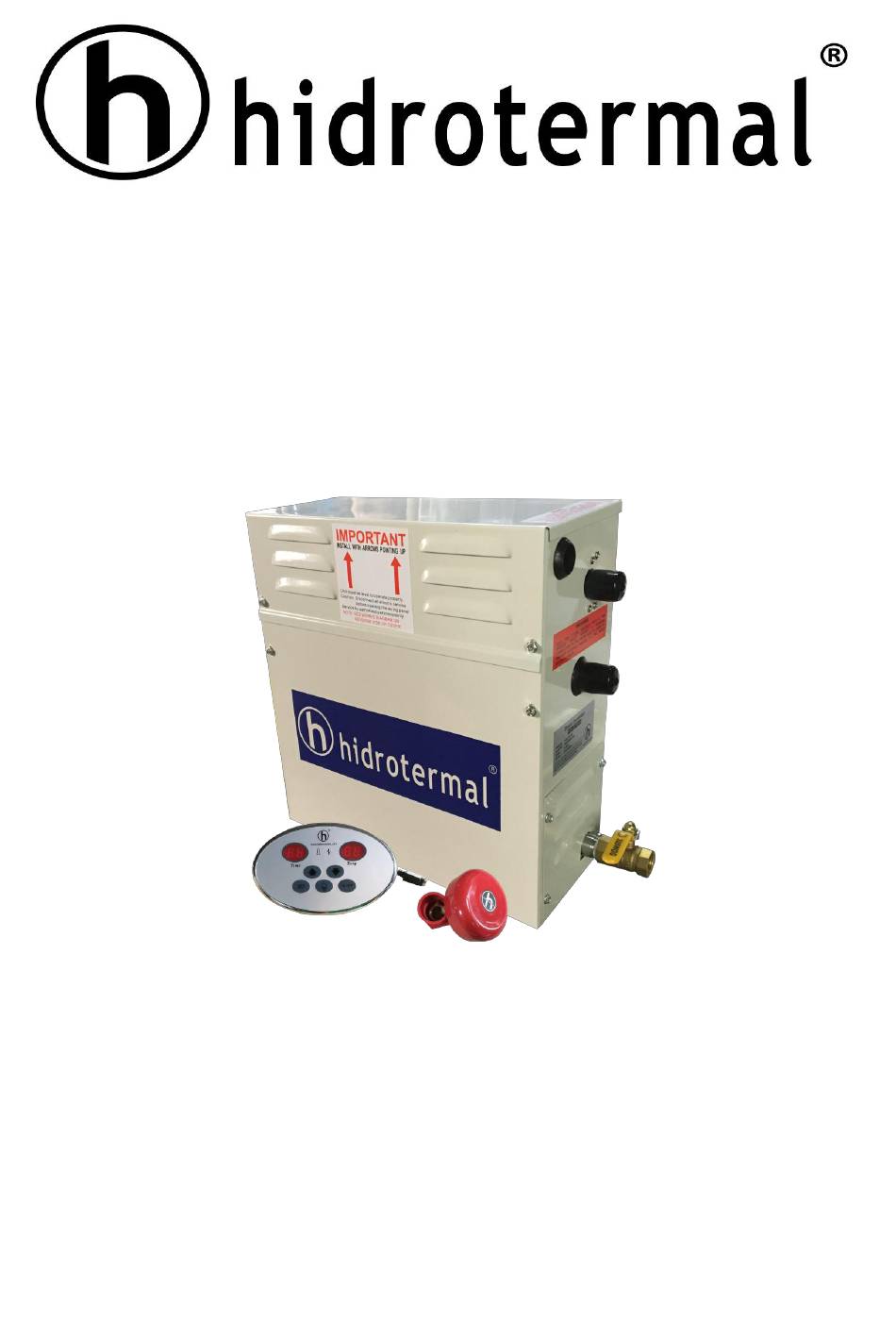

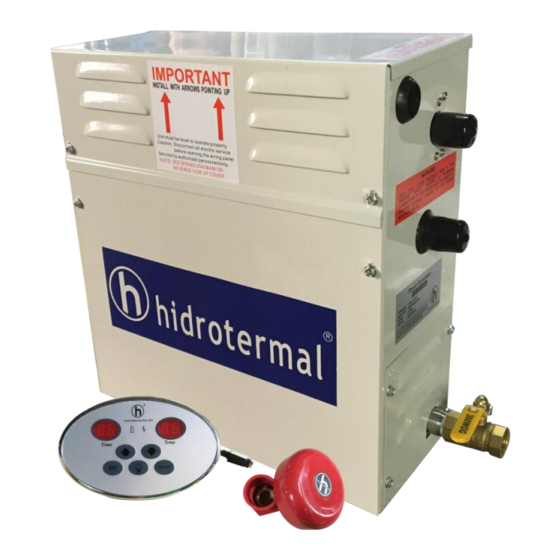

- Page 1 STEAM GENERATOR Hidro-ST Series USER MANUAL...
-
Page 2: Before You Begin
BEFORE YOU BEGIN CHECK ALL ELECTRICAL CONNECTIONS TO ALL COMPONENTS WITHIN THE HEATER FOR TIGHTNESS. CONNECTIONS CAN BECOME LOOSE DURING SHIPMENT AND HANDLING. WARNING Only qualified personnel should install and maintain this equipment. Unauthorized alteration or improper maintenance of this unit may release the manufacturer from any warranty claims. - Page 3 Steam Generator Specifications Copper wire Power Voltage Current Model No. Room (CBM) Phase number (KW) (mm²) Hidro-ST30 220V Hidro-ST45 220V Hidro-ST60 220V Hidro-ST60B 380V Hidro-ST80 380V Hidro-ST90 380V Hidro-ST105 10.5 380V Hidro-ST120 380V Hidro-ST150 380V Hidro-ST180 380V All specifications are subject to the latest one; changes without prior notice.
-
Page 4: Installation Place
1. Installation and Procedure 1-1. Installation Place A. The steam generator should be installed in a dry, well ventilated location, and provided adequate drainage. You can install the steam generator under a closet, attic, shelf, or basement. And it must be locked without movement. -
Page 5: Installation And Wire Connection
1-2. Installation and Wire connection A. Connect the water inlet, install rinse valve and drainage pipe. Refer to A-Connection Scheme. B. Connect the power supply wires respectively to L1, L2, and L3 on the junction box. Neuter wire must be connected to N and electrical grounding must be connected to earth. Refer to B-Power Connection. -
Page 6: Power Connection
2)-Power Connection ATTENTION: The place for installation of the steam generator should match following conditions: A. Position the steam generator so that the piping connections, controller, cables are convenient and accessible for operations and service B. The steam generator could not be frozen or moistened, and the temperature should not exceed 40 ℃ （Never install the generator inside the steam bathroom or outdoors.) C. -
Page 7: Controller Installation
2. Operational Setting 2-1. Controller installation A. The controller should be installed outside of the steam room with convenience access for operations. Please install it as near as possible to the room's door. The recommended height is 1.5meter above from the ground. B. - Page 8 WARNING A. Electrical shock hazard------there are no user serviceable parts in the generator. All installations and relevant services shall be performed by qualified personnel to avoid electrical shock hazard,. B. Steam bathing time should be less than half an hour. Bathing too long may cause heart beating too fast, light heartache, feeling weak or dizzy.
-
Page 9: Troubleshooting Guide
4. Trouble Shooting Guide There are user serviceable parts in the generator. All repairs should be performed by a qualified service person. The Trouble Shooting Guide below is for general reference only. PROBABLE CAUSES ACTION TO BE TAKEN SYMPTOMS 1. Steam generator hasn't been 1. - Page 10 5. Choose a Right Steam Generator For comfort and leisure, to choose a correct steam generator is same important as to design the steam room. A. Considerations in Choosing a Model 1. Water Quality More impurities or minerals in water, should the steam generator be rinsed more often. Automatic cleaning should be taken into consideration so as to save manual labors if the water quality is poor.
- Page 11 6. How to build a steam bath room Generally, steam rooms are built with glass steels or acrylic materials and building materials. Easy installation and good insulation characterize both the glass steels and acrylic materials. However, they are sufficiently poor heat resistant, especially easily break and get damaged, while the cost is high.
