Summary of Contents for HOBBYEAGLE A3 MINI

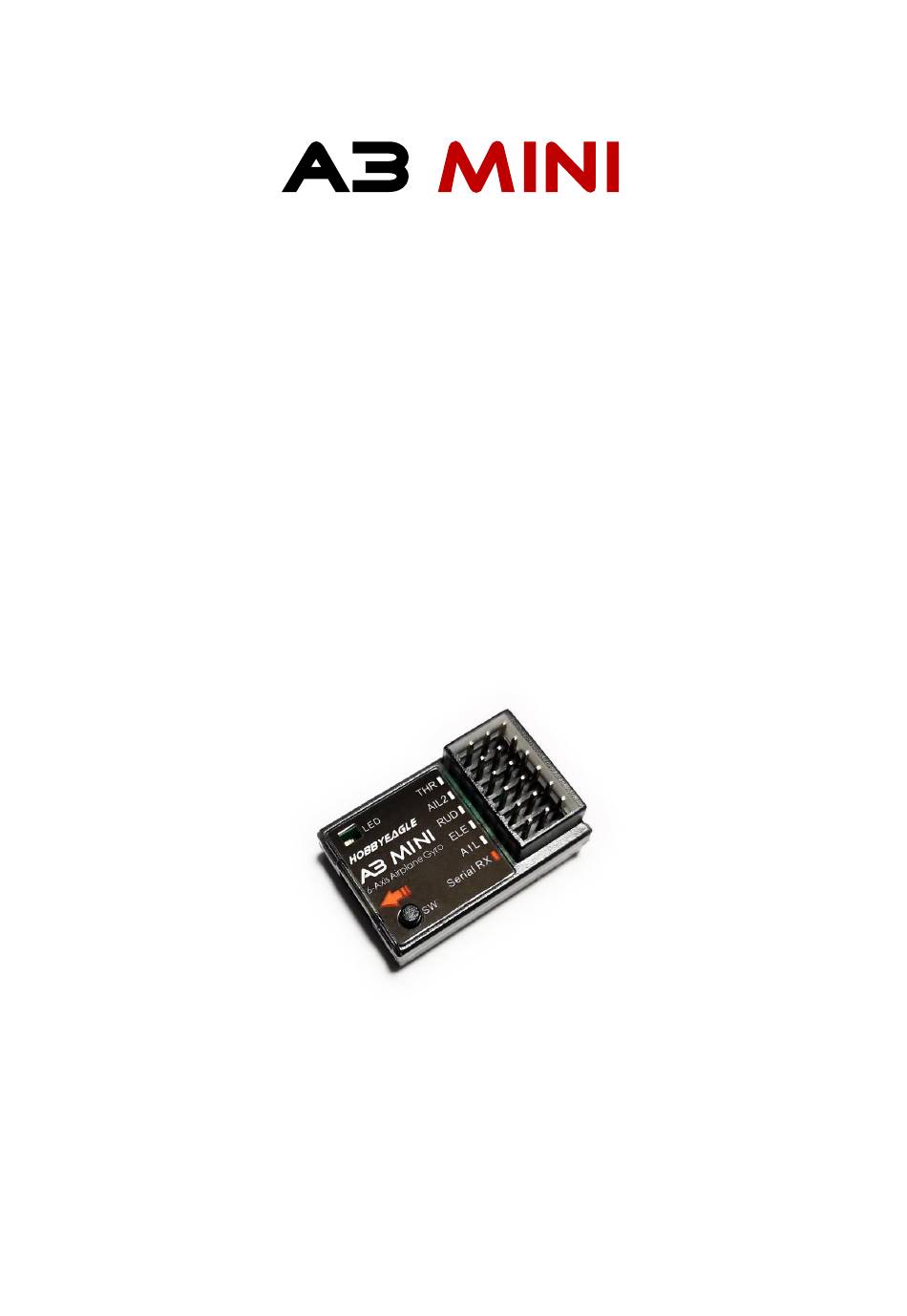

- Page 1 User Manual V1.0 Nov, 2021 Revision WWW.HOBBYEAGLE.COM 1 / 10...
-
Page 2: Important Notes
Thank you for purchasing our products. A3 Mini is a high-performance and functional 6-axis mini gyro system designed for R/C airplanes. The smaller size and more compact design make it more suitable for the small electric airplanes. With the new feature of multi-protocol serial receiver support, it could be compatible with most single line mini receivers on the market. -
Page 3: Installation
ANGLE, LEVEL and HOVER modes. ① Flat, face up ② Flat, face down ③ Upright, button down ④ Upright Inverted, button up WWW.HOBBYEAGLE.COM 3 / 10... - Page 4 A3 Mini supports PPM and multi-protocol digital serial receivers which allows you to connect the receiver to [Serial RX] with only one single wire. Depending upon the protocol selected, A3 Mini will use the preset channel assignment to recognize the channels from the receiver. Refer to the table below and check if your radio transmits the channels in the correct order.
-
Page 5: Servo Connection
Most flying-wings have no rudder, in this case, [RUD] is unnecessary to connect. FLIGHT MODES A3 Mini provides 6 flight modes which can be switched by a 3-position switch of the transmitter during flight. The factory default mode allocation of the switch is NORMAL - LEVEL - ANGLE. The color of the LED shows the current flight mode of the gyro while in use. - Page 6 The HOVER mode, also known as the ‘Auto-Hover mode’, provides the same functionality as the LEVEL mode. The only difference is that when you release the sticks, the airplane will be brought to vertical position (nose up) and keeps hovering. This mode is designed to help you to learn hovering maneuver WWW.HOBBYEAGLE.COM 6 / 10...
-
Page 7: Gain Adjustment
Remote Master Gain A3 Mini also supports the remote master gain control. You can make a linear adjustment by using a volume or slide lever on your transmitter or make a 3-level gain selection using a 3-position switch. This function is optional, the master gain will always default to 100% if you do not connect it. - Page 8 Quickly move the nose of the airplane downward around the pitch axis, the elevator surface should flap up as shown below. Check the gyro direction for Rudder Quickly move the nose of the airplane to the left around the yaw axis, the rudder surface should flap right as shown below. WWW.HOBBYEAGLE.COM 8 / 10...
- Page 9 Quick Gyro Reversing A3 Mini also provides you a quick approach to reverse the gyro direction without connecting it to a PC or a programming card. For example, to reverse the gyro direction of Aileron, press and hold the button...
-
Page 10: Specifications
It is recommended to use the new Program Card X for A3 Mini, please upgrade the card to the latest version using the A3 Configurator.
