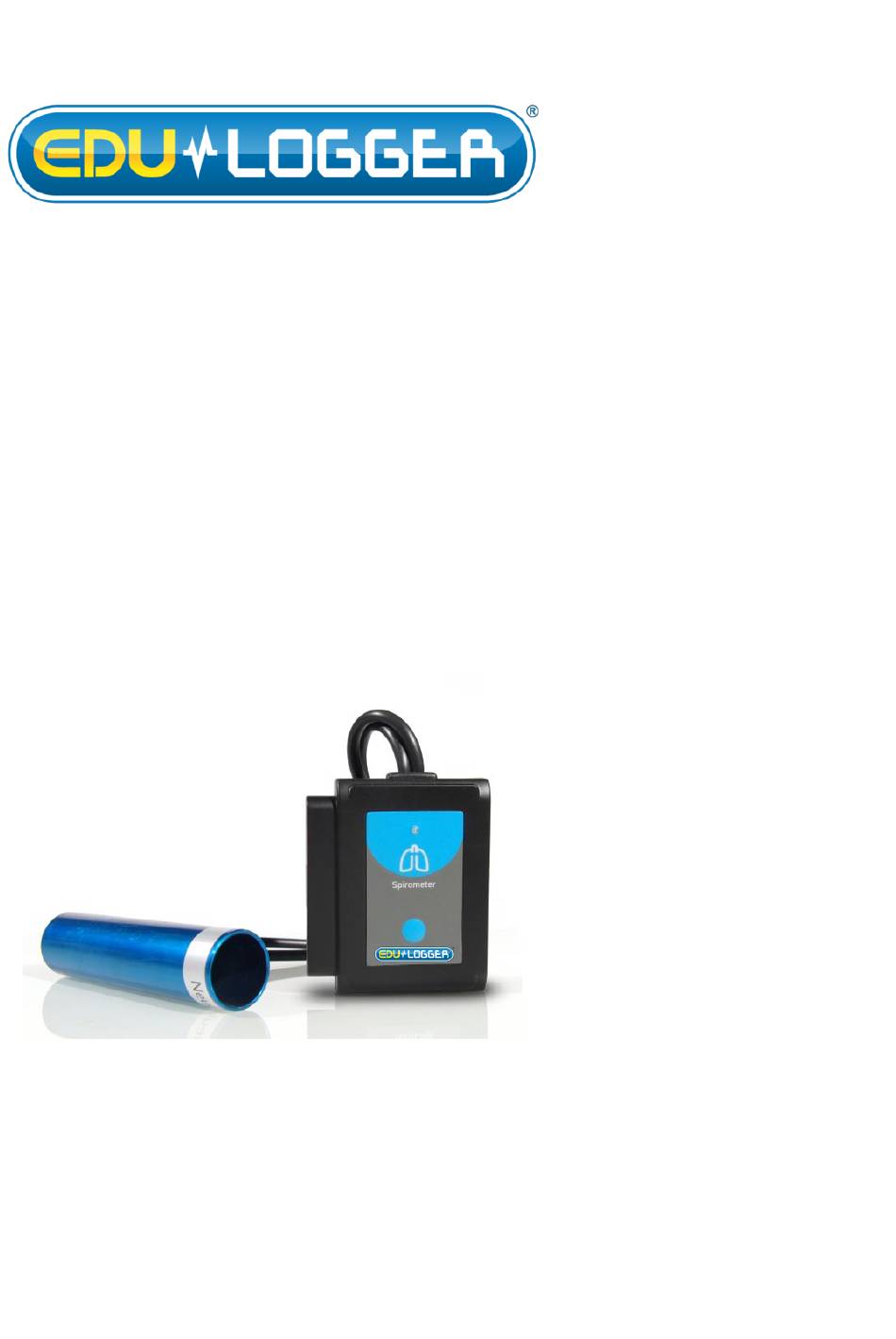

  • Page 1 Edu-Logger Spirometer Logger Sensor Guide 900-226...
  • Page 2 Hundreds of possible experimental subjects that can be done with the 900-226 sensors are: gas flow rates and gas flow laws, exercise experiments, studying lung function, lung physiology and many more.
  • Page 3 Quick start procedure: PC or Mac Computer Materials needed:  900-226 Spirometer Sensor  Laminated Paper (included)  900-213 USB Module  USB to mini USB cable (included with the 900- 213 module) Your spirometer sensor needs to be connected to a 900-213 module.
  • Page 4 900-268 module. The 900-268 module will create a closed Edu-Logger WiFi network which will stream the Edu-Logger data to a device of your choosing. Once your device is wirelessly connected to the Edu- Logger network you can run experiments and collect data through a browser of your choosing.
  • Page 5 LED to the far left turns blue; this can take up to one minute. Take your tablet or smart phone, go to the WiFi settings and select the Edu-Logger network which matches the 900-268 Module ID found on back 900-268 device.
  • Page 6 3 times on the panel key. Repeating this operation will return the unit to WiFi mode. Operation with Edu-Logger viewer Materials needed:  900-226 Spirometer Sensor  Laminated Paper (included)  900-272 Viewing Module  900-215 Battery Procedure: Prior to initial use, please review the “Using the...
  • Page 7 (Off-line experiments are for when you do not have a sensor connected directly to a computer, tablet, smartphone, or Edu-Logger viewer). Materials needed:  900-226 Spirometer Sensor  Laminated Paper (included)  900-215 Battery Materials needed to configure your offline experiment: ...
  • Page 8 Click the “Restore sensor’s factory defaults” on the menu. If prompted to clear the graph, click either the “Off-line experiment” or “On-line experiment” (whichever you are using). Click “Clear experiment results”. Resume from step 4. Included with sensor:  Edu-Logger 900-226 Spirometer Sensor Guide (this document).
  • Page 9  LED indicator of experiment status (blinks while collecting data).  Pre-calibrated sensing equipment.  Metal sensor tube attached by 2 durable rubber- coated wires.  Two pressure sensors connected to the metal tube to accurately determine Note: Edu-Logger products are intended for educational use.
  • Page 10 Videos, literature and other probes can be found www.edulab.com Technical background: The philosophy behind Edu-Logger’s plug and play technology is based on each sensor’s ability to store its own data due to an internal flash memory chip and micro-controller in each plastic Edu-Logger body.

  • Page 11: Warranty

     Never submerge the Edu-Logger plastic body in any liquid.  Do not allow liquid into the spirometer sensor’s body.  After use, gently wipe away any foreign material from the spirometer sensor.  Store in a box at room temperature out of direct sunlight.
  • Page 12 Thank you for using Edu-Logger! Flexible, simple, fast, forward thinking. www.edulab.com info@edulab.com V10012013...
