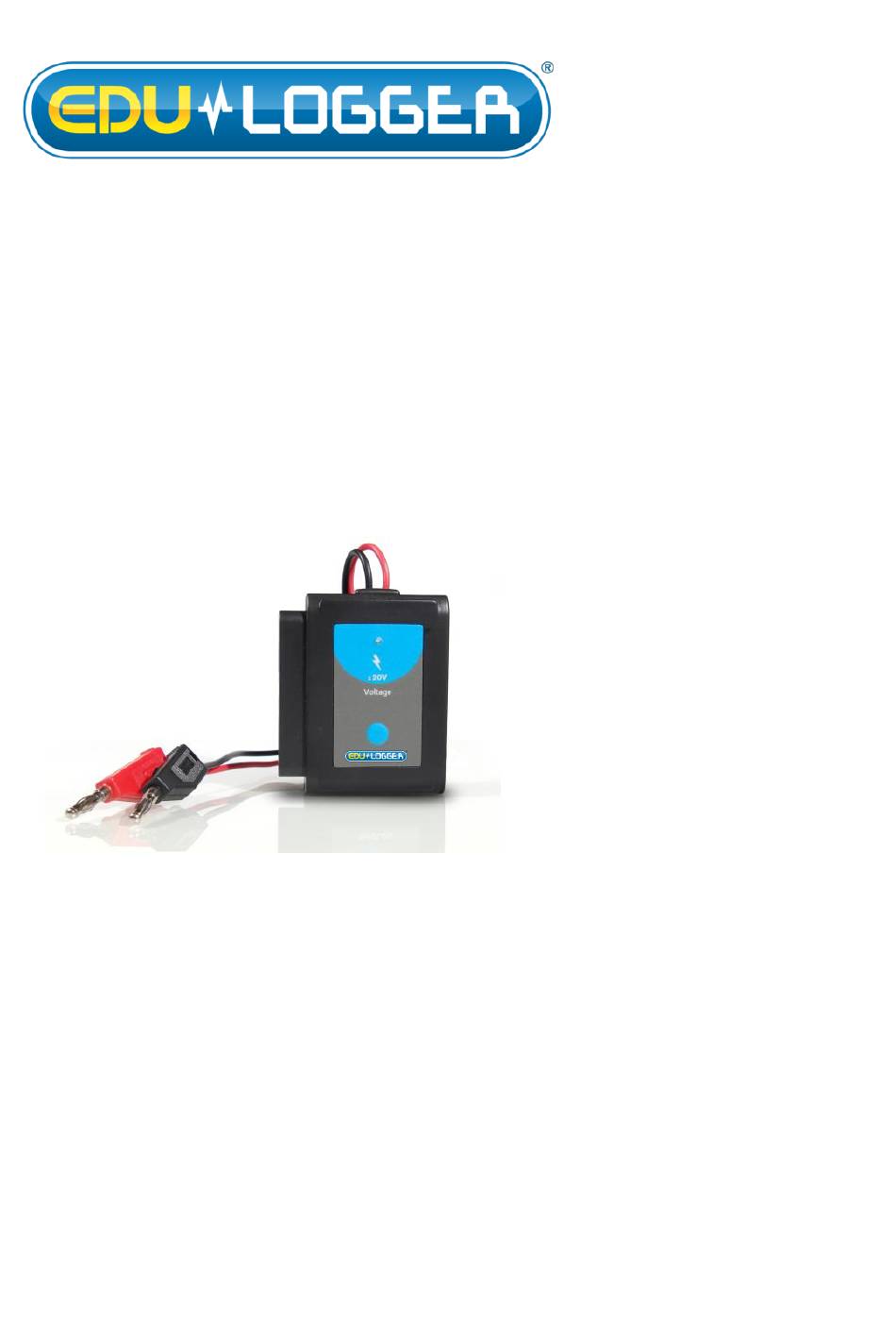

Edu-Logger Voltage
Logger Sensor Guide
900-201

Advertisement

loading
Need help?

Need help?

Do you have a question about the 900-201 and is the answer not in the manual?

Questions and answers

Related Manuals for Edu-Logger 900-201

Summary of Contents for Edu-Logger 900-201

  • Page 1 Edu-Logger Voltage Logger Sensor Guide 900-201...
  • Page 2 The sensor comes pre-calibrated so you can start experimentation right out of the box using this guide. Hundreds of possible experimental subjects that can be performed with the 900-201 sensor are: Fuel cells, battery chemistry, electrical parallel circuits, electrical series circuits and electronics.
  • Page 3 Quick start procedure: PC or Mac Computer Materials needed:  900-201 Voltage Sensor  900-213 USB Module  USB to mini USB cable (included with the 900- 213 module) Your voltage sensor needs to be connected to a 900- 213 module. The 900-213 module then connects to a computer via a USB to mini-USB cable.
  • Page 4 Your voltage sensor needs to be connected to a 900- 268 module. The 900-268 module will create a closed Edu-Logger WiFi network which will stream the Edu- Logger data to the device of your choosing. Once your device is wirelessly connected to the Edu-Logger network you can run experiments and collect data through a browser of your choosing.
  • Page 5 LED to the far left turns blue; this can take up to one minute. Take your tablet or smart phone, go to the WiFi settings and select the Edu-Logger network which matches the 900-268 Module ID found on back 900-268 device.
  • Page 6 Repeating this operation will return the unit to WiFi mode. Operation with Edu-Logger viewer Materials needed:  900-201 Voltage Sensor  900-272 Graphic Display Module  900-215 Battery Module Procedure: Connect the voltage sensor to the left side of the viewer.
  • Page 7 (Off-line experiments are when you do not have a sensor connected directly to a computer, tablet, smartphone, or Edu-Logger viewer). Materials needed:  900-201 Voltage Sensor  900-215 Battery Module Materials needed to configure your offline experiment:  900-213 Module, 900-268 module or 900-272 Module ...
  • Page 8 Click the “Load data from sensors” button. Select which experimental data to upload (5 experimental runs can be stored at one time on the 900-201 voltage sensor). Restoring sensor’s factory default settings: Procedure: Connect the 900-213 module to a PC, Mac, tablet, or smart device.
  • Page 9 Included with sensor:  Edu-Logger 900-201 Voltage Sensor Guide (this document).  Red (positive probe) and black (negative probe) wires connected directly to the sensor's body.  4 mm red and black plugs for the positive and the negative wires.
  • Page 10 Videos, literature and other probes can be found www.edulab.com Technical background: The philosophy behind Edu-Logger’s plug and play technology is based on each sensor’s ability to store its own data due to an internal flash memory chip and micro-controller in each plastic Edu-Logger body.

  • Page 11: Warranty

    Maintenance and storage:  Never submerge the Edu-Logger plastic body in any liquid.  Do not allow liquid into the voltage sensor’s body.  After use, gently wipe away any foreign material from the sensor.  Store in a box at room temperature out of direct sunlight.
  • Page 12 Thank you for using Edu-Logger! Flexible, simple, fast, forward thinking. www.edulab.com info@edulab.com T: +44 (0) 1366 385777 V10012013...
