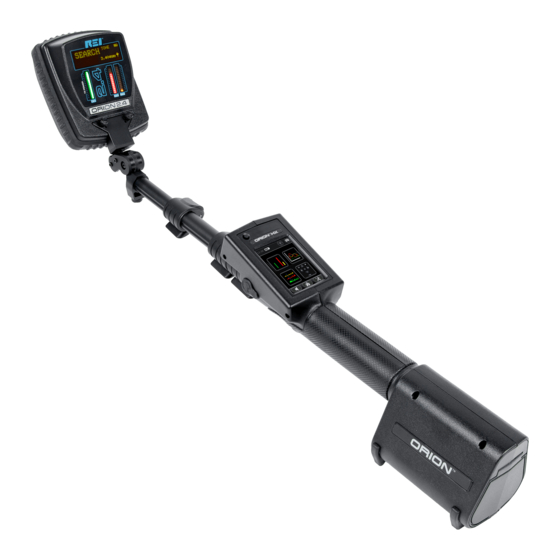

REI ORION HX Quick Start Manual

Quick Start Guide
This card is intended to familiarize the user with some of the basic ORION HX functions and capabilities. Minimal explanation is
provided. Detailed explanations of ORION HX functions and procedures are provided in the User's Manual.

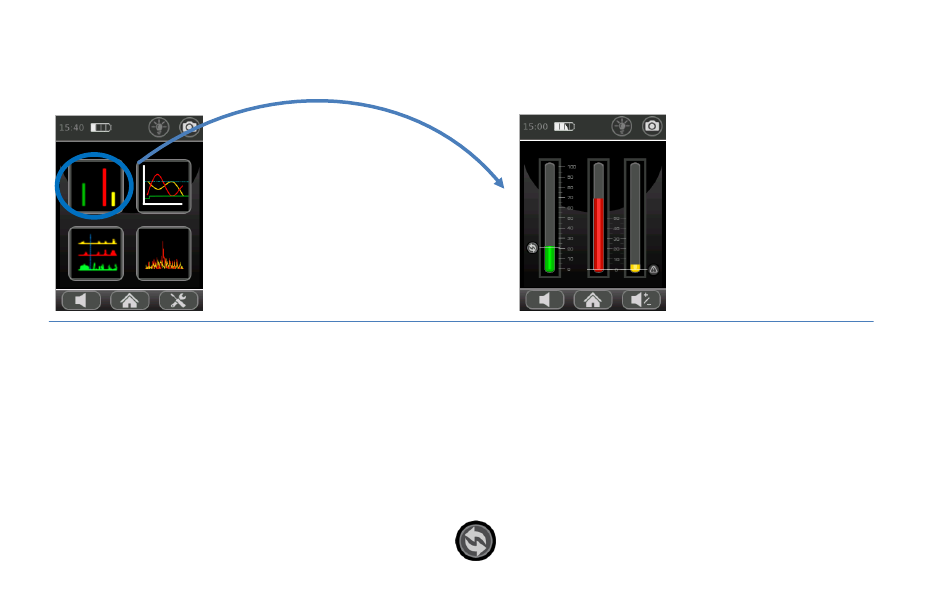

When the ORION HX first powers up,
the initial screen will be the Home
Screen. Press the Bar Graph icon to
access the Bar Graph screen.
nd rd
To Test with 2 or 3 Harmonic Test Tag:
1. Press the Power Button at the top left of the Touchscreen
Display to power on the unit.
2. From the Home Screen, press the Bar Graph Icon to access the
Bar Graph Screen.
3. On the Bar Graph Screen, repeatedly tap the top half of the
Power Level indicator (the green bar) to increase transmit
power to 100%
4. Press the Power Button again to select Manual Transmit Mode.
The Auto Transmit Mode indicator will disappear from beside
the Power Level indicator.
5. Hold the ORION HX head just above the provided 2
Test Tag. The LED inside the enclosed test tag will light
verifying that the ORION HX is transmitting. Notice the bar
graphs are maxed out.
6. Press the Power Button again to select Auto Transmit Mode.
The Auto Transmit Mode indicator will reappear.
7. Hold the ORION HX head just above the 2
Test Tag. After settling, the bar graphs and display will indicate
either a "semiconductor" or "corrosive" junction.
Auto Transmit
Mode Indicator
nd
Harmonic
nd rd
or 3 Harmonic
