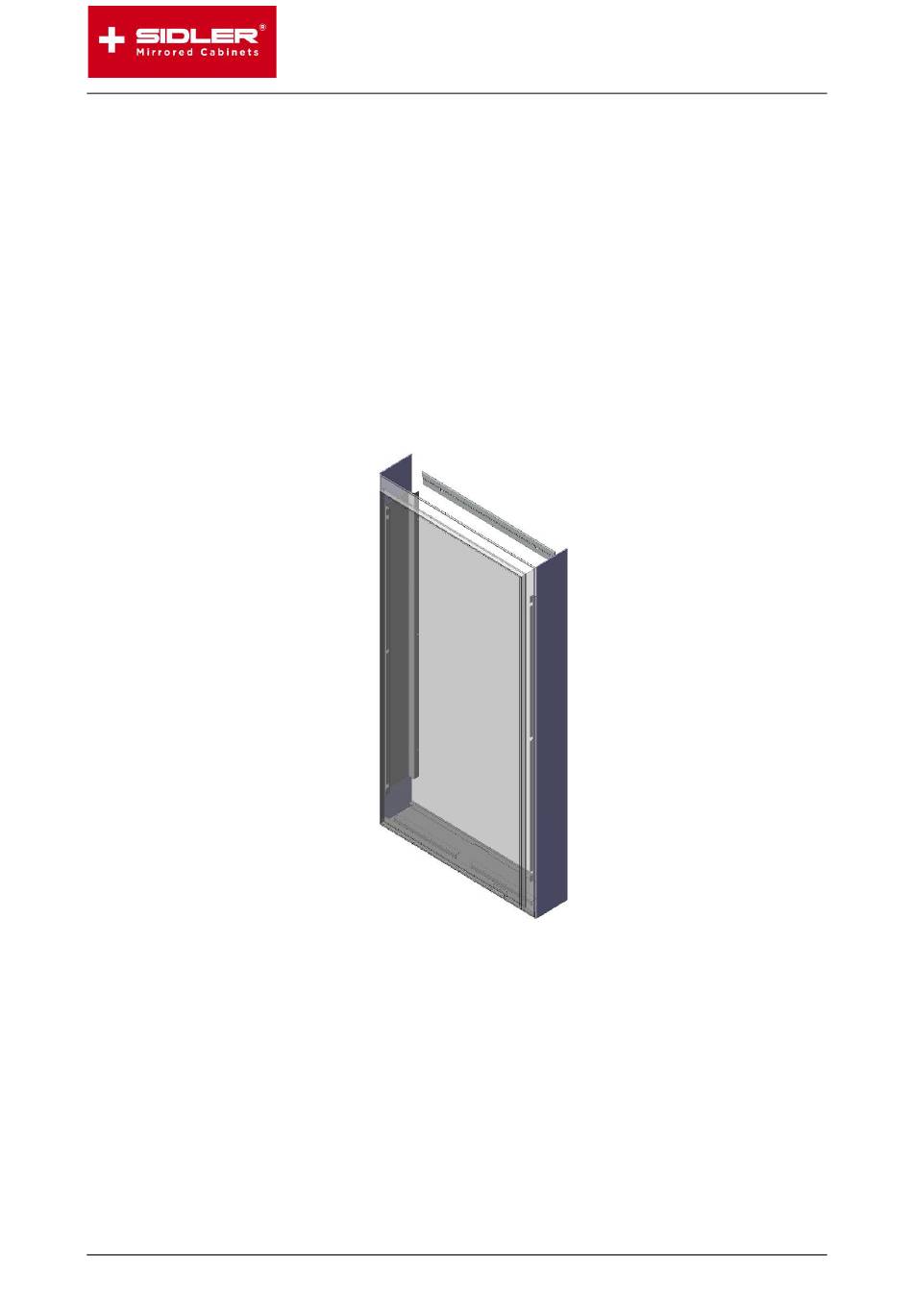

OPERATING INSTRUCTIONS
Mode d'emploi

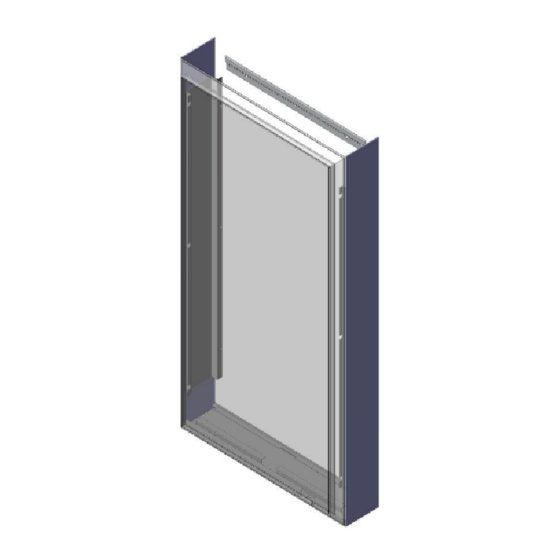

WALL MOUNT KIT INCLUDING SIDE MIRRORS
KIT FIXATION MURALE Y COMPRIS LES MIROIRS
LATÉRAUX
FOR MIRRORED BATHROOM CABINETS
M
: SIDLER® Q
ODEL
UADRO
Read the instructions carefully before installing the mirror cabinet.
Lisez attentivement les instructions avant d'installer l'armoire de
toilette.
Keep these instructions for future reference.
Conservez-les instructions pour future référence.
V 2.0
1/8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QUADRO 1.1006.999 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SIDLER QUADRO 1.1006.999

  • Page 1 WALL MOUNT KIT INCLUDING SIDE MIRRORS KIT FIXATION MURALE Y COMPRIS LES MIROIRS LATÉRAUX FOR MIRRORED BATHROOM CABINETS : SIDLER® Q ODEL UADRO Read the instructions carefully before installing the mirror cabinet. Lisez attentivement les instructions avant d’installer l’armoire de toilette.
  • Page 2 OPERATING INSTRUCTIONS Mode d’emploi IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of burns, fire, electric shock, or injury: • This product is for household use only • WARNING – do not use outdoors • WARNING – use this furnishing only for its intended use as described in these instructions •...
  • Page 3 OPERATING INSTRUCTIONS Mode d’emploi IST OF ALL COMPONENTS TO BE INSTALLED ISTE DES PIÈCES À INSTALLER The components pos.2 and pos.6 are included in the delivered mirror cabinet. Pos. Description Dimension Comment side mirror / miroir latéraux wall mount only mounting bracket / support de montage wall mount only sheet metal / tôle...
  • Page 4 OPERATING INSTRUCTIONS Mode d’emploi – G ’ NSTALLATION UIDE UIDE D INSTALLATION Step 1 – Mounting bracket Étape 1 - Support de montage a) Mount the mounting bracket (pos. 2) according to the schematic drawings below. Recommend height: center of mounting holes at 77’’. Make sure that the mounting bracket is fastened to at least one wall stud.
  • Page 5 OPERATING INSTRUCTIONS Mode d’emploi Step 2 – Preparing wiring / assembling side mirrors Étape 2 - Préparation du câblage / assemblage des rétroviseurs latéraux a) Bend the two flaps open at the back of the mirrored cabinet b) Mount the side kits pos.5 V 2.0...
  • Page 6 OPERATING INSTRUCTIONS Mode d’emploi Step 3 – Mount bottom cover Étape 3 - Montez le couvercle inférieur pos.4 Step 4 – Thread wires through back opening Étape 4 - Enfilez les fils dans l'ouverture arrière V 2.0...
  • Page 7 OPERATING INSTRUCTIONS Mode d’emploi Step 5 – Mount the Cabinet Étape 5 - Montez l'armoire Hang the cabinet into mounting bracket Pos. 2 pos.2 b) Center the mirror cabinet over the vanity and fasten it at the lower mounting holes as shown below, by using the anchors (pos.4 or pos.5). Bottom fasteing positions proceed with OPERATION INSTRUCTIONS Quadro...
  • Page 8 OPERATING INSTRUCTIONS Mode d’emploi LIMITED WARRANTY SIDLER will provide a two-year warranty in respect of defects associated with the Product, commencing from the date of delivery, subject to the following conditions: The Product must have been professionally mounted and installed by a certified licensed contractor in accordance with the Safety Standards Act, S.B.C.
