SIMPLIFIED ILLUSTRATED MAINTENANCE MANUAL
ON/OFF PUMP
SWITCH
Phase 1
Phase 2
Phase 3
SMOKI srl
FOR SOOT ABATMENT SYSTEM SMOKI MAXI
INSPECTION DOOR
4 BAR PUMP PRESSURE
MANOMETER
EVERY WORKING DAY - Page 1
BIWEEKLY MAINTENANCE - Page 2 to 3
ROUTINE MAINTENANCE (EVERY 2 MONTHS) Page 4 to 7
300, 400 and 500
DISCHARGE VALVE
TO DRAINAGE SYSTEM
HOSE CONNECTED TO
THE WATER SUPPLY
NETWORK
created by Viola Gianfranco
Advertisement
Related Manuals for SMOKI MAXI 300
Summary of Contents for SMOKI MAXI 300

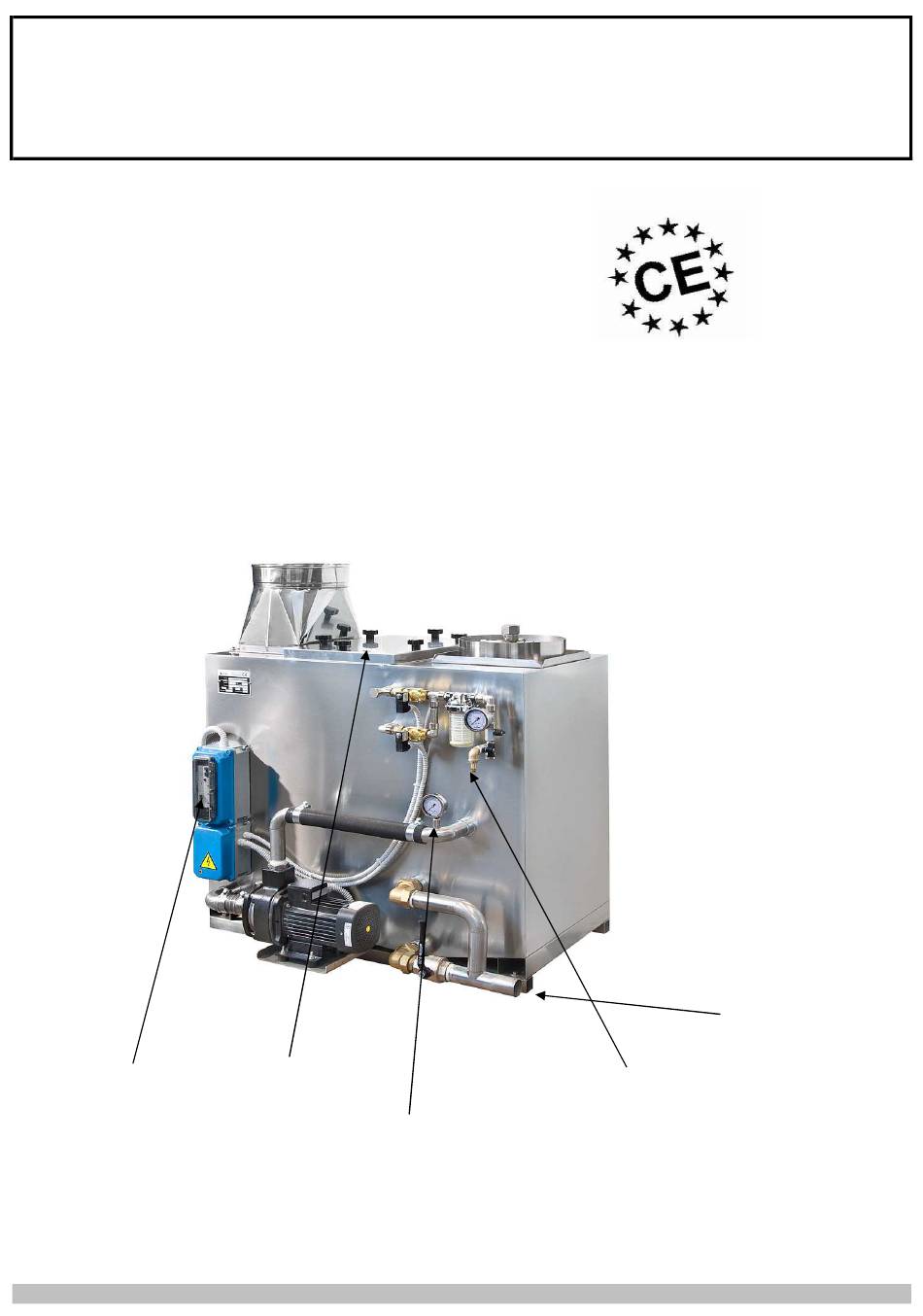

- Page 1 SMOKI srl Complying with CE construction directions SIMPLIFIED ILLUSTRATED MAINTENANCE MANUAL FOR SOOT ABATMENT SYSTEM SMOKI MAXI 300, 400 and 500 DISCHARGE VALVE TO DRAINAGE SYSTEM ON/OFF PUMP INSPECTION DOOR HOSE CONNECTED TO SWITCH THE WATER SUPPLY 4 BAR PUMP PRESSURE...
