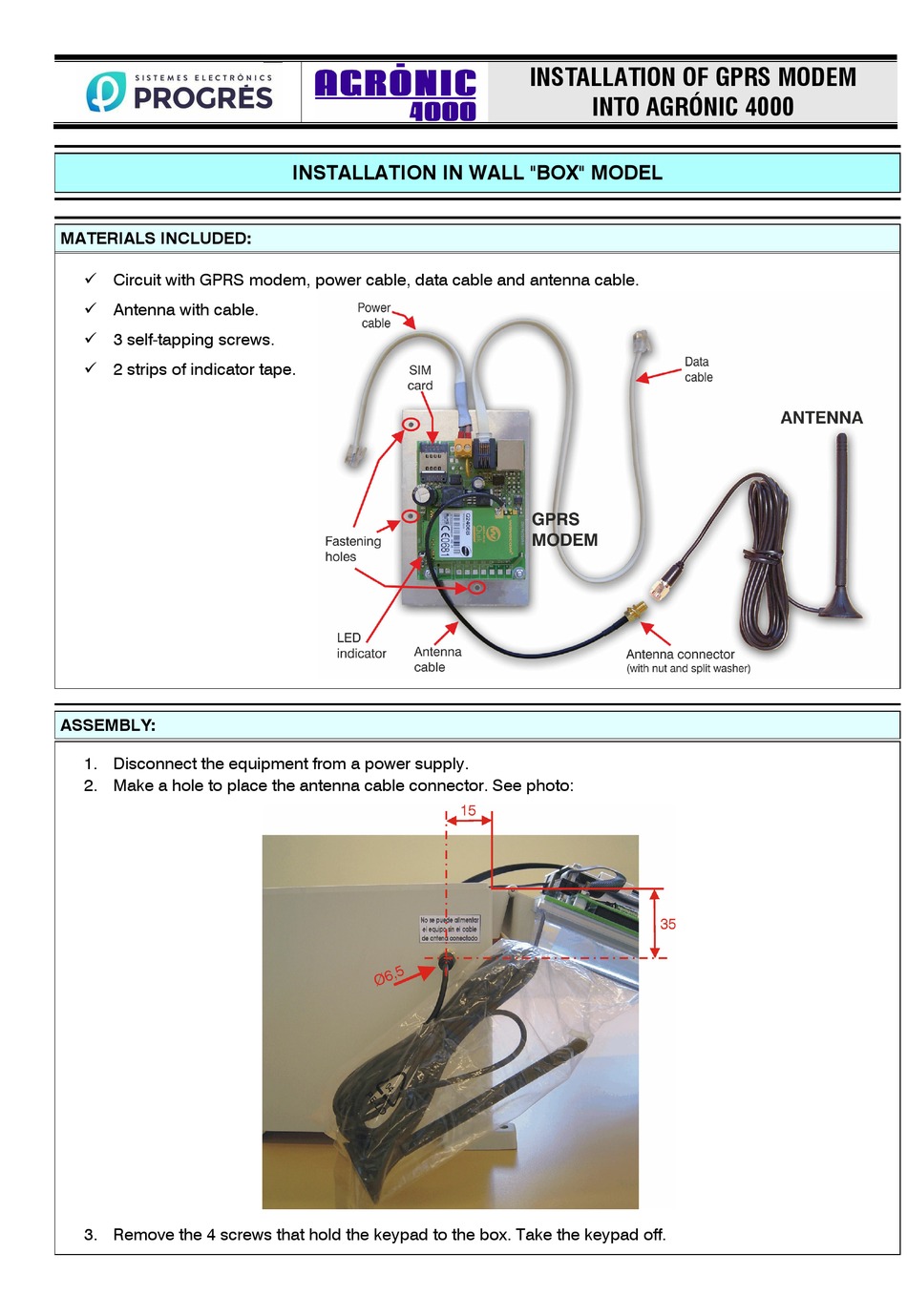

MATERIALS INCLUDED:
 Circuit with GPRS modem, power cable, data cable and antenna cable.
 Antenna with cable.
 3 self-tapping screws.
 2 strips of indicator tape.

ASSEMBLY:

1. Disconnect the equipment from a power supply.
2. Make a hole to place the antenna cable connector. See photo:
3. Remove the 4 screws that hold the keypad to the box. Take the keypad off.
INSTALLATION IN WALL "BOX" MODEL
INSTALLATION OF GPRS MODEM
INTO AGRÓNIC 4000
