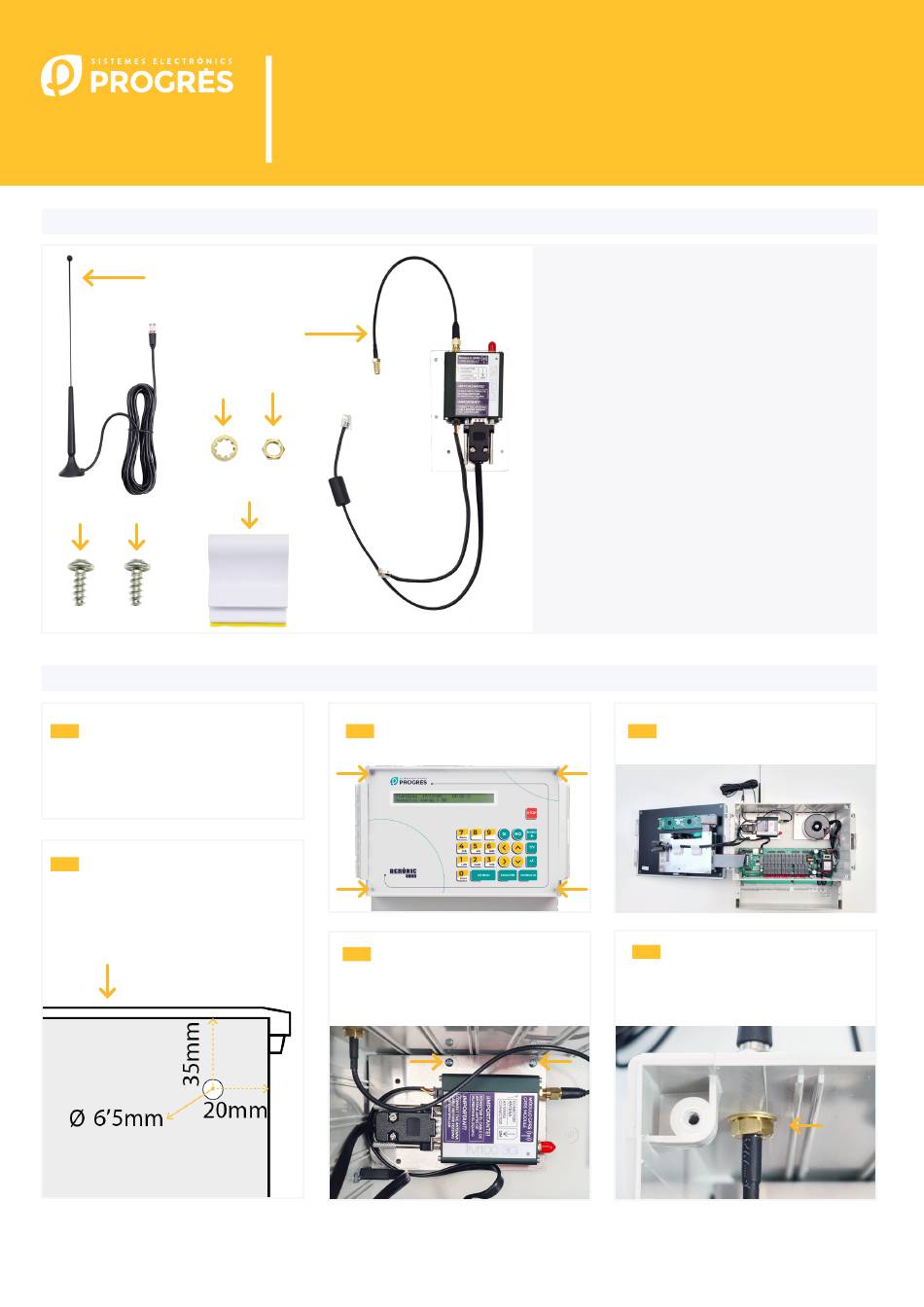

Progres Maestro Agronic 4000 Quick Start Manual

ITEMS PROVIDED
GPRS antenna
GPRS modem
Tooth-lock
washer
2 adhesive clips
2 SHR screws
ASSEMBLY IN BOX FORMAT
1
Disconnect the controller's
power supply.
4
Make a hole measuring 6.5
mm in the upper part, as shown in
the image.
Upper part
Agrónic 4000
"Maestro" GPRS/SMS modem
option installation for box model
Nut
2
Remove the 4 screws.
5
Place the modem inside
using the 2 SHR screws that were
provided.
• GPRS modem with cables, connectors and
aluminium for fastening
• For the box: 2 self-tapping screws
• For the antenna connector: 1 tooth lock
washer and 1 nut
• For the aluminium on the motherboard: 2
adhesive clips for the data cable
• GPRS antenna
3
Lift the keyboard.
6
Place the antenna connector in
the hole that was made. Position the
tooth-lock washer inside the box.
1
