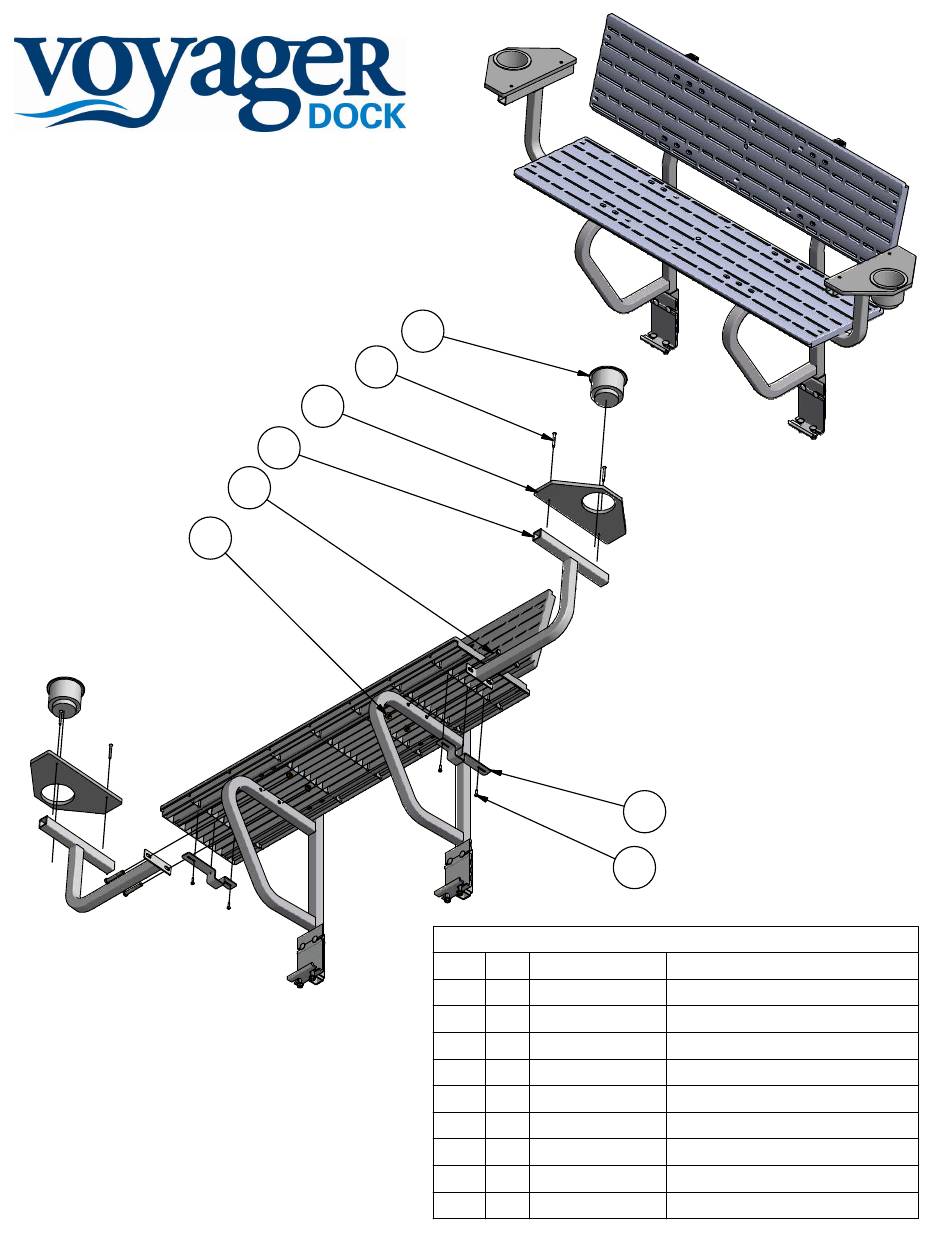

Titan Bench Arm
Rest Kit
6
1
7
3
4
8
ITEM
QTY
PART NUMBER
1
VM-187
1
2
VM-187-05
2
2
VM-187-03
3
4
HD00127
4
4
HD-00056
5
4
HD-00042
6
4
HD-00211
7
2
VM-187-00
8
2
HD-00201
PAGE 1
2
5
PARTS LIST
DESCRIPTION
BENCH ARM REST KIT
ARM REST PAD
ARM REST CLAMP
3/8 X 2.0 HEX BOLT SS
3/8 FLANGE NUT (BRASS)
SS #10 X .75 SCREW
SS #10 X 1.25 SELF DRILL
ARM REST FRAME
CUP HOLDER
Advertisement
Table of Contents
Related Manuals for Voyager Dock Titan
Summary of Contents for Voyager Dock Titan
- Page 1 Titan Bench Arm Rest Kit PARTS LIST ITEM PART NUMBER DESCRIPTION VM-187 BENCH ARM REST KIT VM-187-05 ARM REST PAD VM-187-03 ARM REST CLAMP HD00127 3/8 X 2.0 HEX BOLT SS HD-00056 3/8 FLANGE NUT (BRASS) HD-00042 SS #10 X .75 SCREW HD-00211 SS #10 X 1.25 SELF DRILL...
- Page 2 1. Install Arm Rest Frames to Bench Leg Frames with (2) 3/8 x 2.0 Hex Bolts and (2) 3/8 Flange Nuts, finger tighten only. Per Diagram A. 2. Attach Arm Rest Clamp to Titan Seat Board securing each Arm Rest Frame with (2) SS #10 x .75 Screws. Per Diagram B.
- Page 3 Diagram A ARM REST FRAME 3/8 X 2.0 HEX BOLT SS 3/8 FLANGE NUT (BRASS) BENCH LEG FRAME TITAN SEAT BOARD ARM REST CLAMP SS #10 X .75 SCREW SS #10 X 1.25 SELF DRILL CUP HOLDER Diagram B ARM REST PAD...
