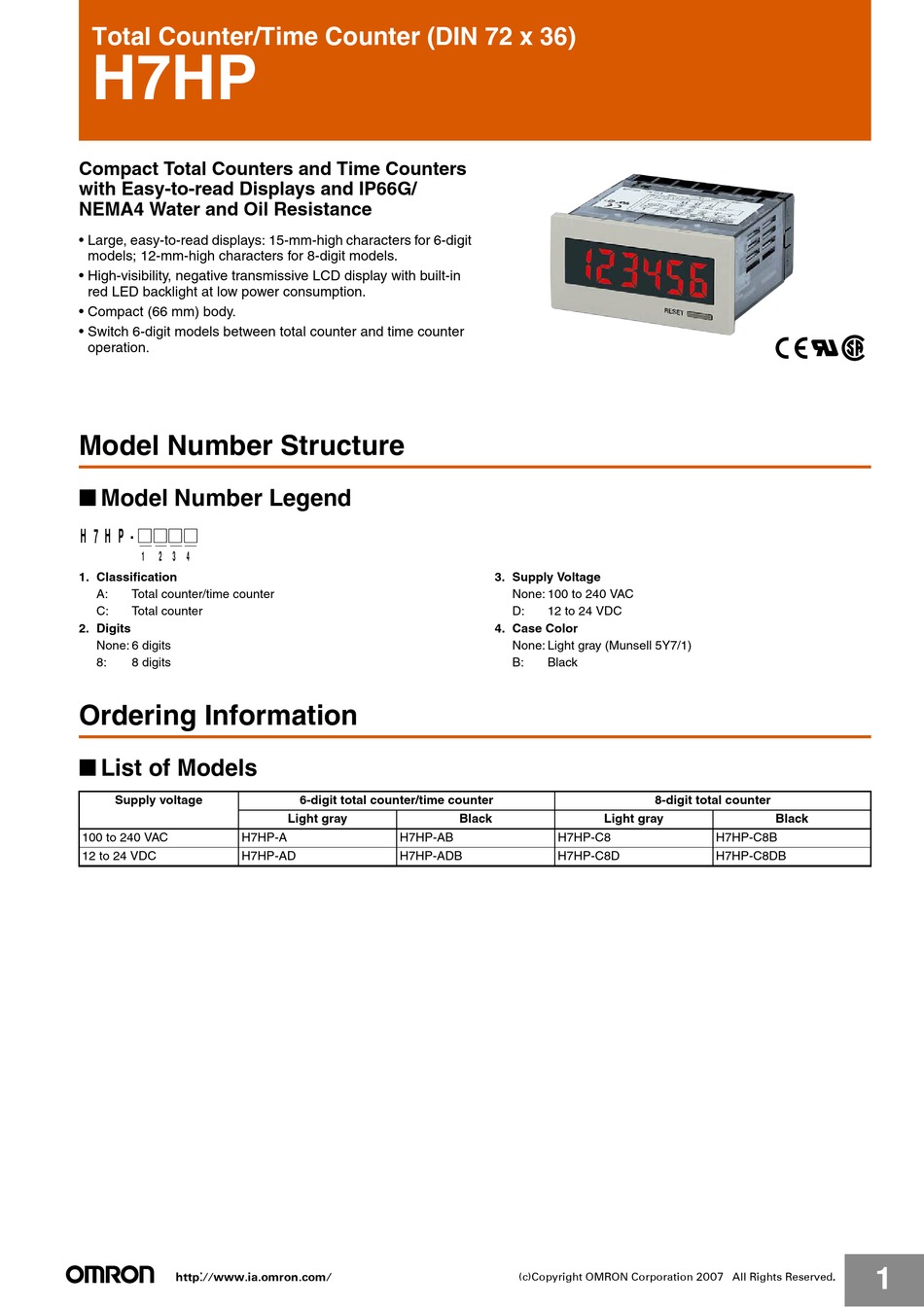

Total Counter/Time Counter (DIN 72 x 36)
H7HP
Compact Total Counters and Time Counters
with Easy-to-read Displays and IP66G/
NEMA4 Water and Oil Resistance
• Large, easy-to-read displays: 15-mm-high characters for 6-digit
models; 12-mm-high characters for 8-digit models.
• High-visibility, negative transmissive LCD display with built-in
red LED backlight at low power consumption.
• Compact (66 mm) body.
• Switch 6-digit models between total counter and time counter
operation.
Model Number Structure
■ Model Number Legend
H7HP-@@@@
1 2 3 4
1. Classification
A:
Total counter/time counter
C:
Total counter
2. Digits
None: 6 digits
8:
8 digits
Ordering Information
■ List of Models
Supply voltage
100 to 240 VAC
H7HP-A
12 to 24 VDC
H7HP-AD
http://www.ia.omron.com/
6-digit total counter/time counter
Light gray
Black
H7HP-AB
H7HP-ADB
3. Supply Voltage
None: 100 to 240 VAC
D:
12 to 24 VDC
4. Case Color
None: Light gray (Munsell 5Y7/1)
B:
Black
8-digit total counter
Light gray
H7HP-C8
H7HP-C8D
(c)Copyright OMRON Corporation 2007 All Rights Reserved.
Black
H7HP-C8B
H7HP-C8DB
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H7HP and is the answer not in the manual?

Questions and answers

Related Manuals for Omron H7HP

Summary of Contents for Omron H7HP

  • Page 1 ■ List of Models Supply voltage 6-digit total counter/time counter 8-digit total counter Light gray Black Light gray Black 100 to 240 VAC H7HP-A H7HP-AB H7HP-C8 H7HP-C8B 12 to 24 VDC H7HP-AD H7HP-ADB H7HP-C8D H7HP-C8DB http://www.ia.omron.com/ (c)Copyright OMRON Corporation 2007 All Rights Reserved.

  • Page 2: Specifications

    2. Only a non-voltage input (NPN transistor) is possible for the key protection input. The key protection input will be a non-voltage input even if the NPN/PNP input mode is set to PNP. Key protection is used to prohibit operating the Reset Key. The reset input terminals will still be functional. http://www.ia.omron.com/ (c)Copyright OMRON Corporation 2007 All Rights Reserved.
  • Page 3 Immunity Voltage Dip/Interruption: EN61000-4-11: 0.5 cycle, 100% (rated voltage) Approved standards UL508, CSA22.2 No.14, conforms to EN61010-1, VDE0106/P100 Case color Rear section: Gray smoke; Front section: 5Y7/1 (light gray) or N1.5 (black) Weight Approx. 115 g http://www.ia.omron.com/ (c)Copyright OMRON Corporation 2007 All Rights Reserved.

  • Page 4: Operation

    5 kHz to continue. The display will show “0” when the power is turned (note) back on. Time range (note) 99999.9 h 99 h 59 min 59 s Input mode (note) NPN Unused http://www.ia.omron.com/ (c)Copyright OMRON Corporation 2007 All Rights Reserved.
  • Page 5 Note: 1. Display values are shown for full scale set to 99999.9 h. The count value will return to "0" when "99999.9" is exceeded. 2. Gate input is available only when H7HP-A settings are made. Nomenclature (The figure shows the DIP switch label stuck to the rear of the case.)
  • Page 6 Note: 1. The mounting panel thickness should be 1 to 6 mm. 2. Water resistance will be lost if Counters are mounted side-by-side. With Flush Mounting Bracket Y92F-33 flush mounting Y92S-33 rubber Panel adaptor (provided) packing (provided) http://www.ia.omron.com/ (c)Copyright OMRON Corporation 2007 All Rights Reserved.
  • Page 7 H7HP Connections (Common) ■ Input Connections Note: The undermentioned is common for all H7GP/H7HP models. No-voltage Input (NPN Input Mode) Reset, Count 1, Count 2, Start, and Gate Inputs Open Collector Output Voltage Output 12 VDC H7GP/H7HP (12 to 24 VDC)

  • Page 8: Flush Mounting

    Environmental Precautions facing panel • Store the H7GP/H7HP within the specified ratings. If the H7GP/ H7HP has been stored at temperatures −10°C or lower, let it stand for 3 hours or longer at room temperature before turning ON the power supply.

  • Page 9: Power Supplies

    Press RST Key or turn power OFF and then ON Memory Labels Unit labels are included with the H7GP/H7HP and DIP switch labels are included with the H7HP. Attach these labels as shown in the following illustrations. Unit Labels H7GP H7HP...
  • Page 10 Warranty and Limitations of Liability WARRANTY OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specifi ed) from date of sale by OMRON. OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS.
