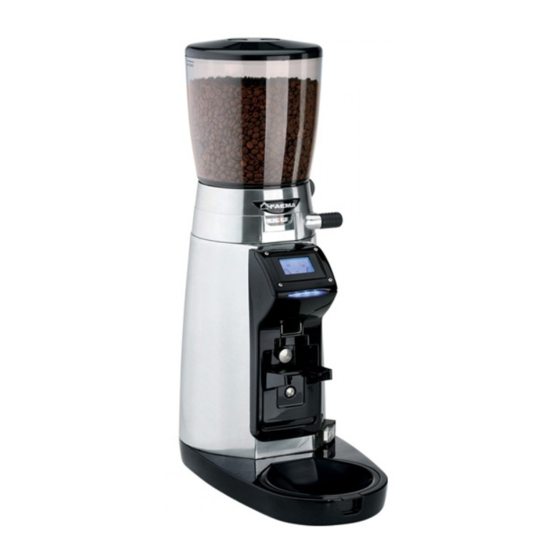

- Page 1 MD3000 ON DEMAND TOUCH LAUNCH PLAN...
- Page 2 Table of contents •Target • Design • Dimensions • Performance • PGS Technology • PGS Logic Functions •Technical and functional features • Range & Configurations • Maintenance • Selling points...
- Page 3 MD3000 ON DEMAND BLUETOOTH Target...
- Page 4 The grind To make a good espresso you need a grind that gives 25 ± 2.5 mm of beverage in 25 ± 2.5 seconds: so, if it takes more or less time to make this amount of espresso, the grind is not set correctly.
- Page 5 Adjusting the grind Until now, to achieve a good grind, the barista had to make a series of ballpark adjustments. Very often this empiricism deteriorates to the point where the barista cannot control the results and blames the bad quality of the espresso on the malfunctioning of the coffee machine and/or the grinder.
- Page 6 MD3000 ON DEMAND BLUETOOTH Design...
- Page 7 Design Logo sticker Polished-aluminium body with high-gloss, clear finish Instrument panel in glossy black, impact- resistant plastic Base in aluminium with high-gloss finish...
- Page 8 Design Touch screen for intuitive, rapid control Elegant, blue-light Micro switch to start grind...
- Page 9 Design 1.6 kg hopper with safety switch “Hands-free” flange so you don’t have to touch the filter holder Removable, coffee- collector pan...
- Page 10 Design Back cover of grinder motor...
- Page 11 Versions MD3000 Demand Bluetooth grinder is available in the flat, 64 mm diameter grinder version only.
- Page 12 MD3000 ON DEMAND BLUETOOTH Dimensions...
- Page 13 DIMENSIONS Dimensions MD3000 On Demand Bluetooth Width Depth Height Weight (mm) (mm) (mm) (kg)
- Page 14 MD3000 ON DEMAND BLUETOOTH Performance...
- Page 15 Performance Espresso production: 14.4 kg/h (4 g/s) Caffè créme production: 15.6 kg/h (4.3 g/s) Engine speed 1.450 Grinder diameter Power Supply (230V 50Hz) Hopper Capacity Electrical Supply V – Minimum grinder distance 0.005...
- Page 16 MD3000 ON DEMAND BLUETOOTH Technology...
- Page 17 – Perfect Grinding System The MD3000 On Demand Bluetooth grinder-doser is equipped with PGS (Perfect Grinding System). Through wireless Bluetooth 2.45 GHz communication technology, the grinder-doser is in constant communication with the M39 coffee machine (equipped with the same “Bluetooth KIT”...
- Page 18 – Grinder-doser The grinder-doser is equipped with a wireless Bluetooth communication module and associated antenna on the CPU card. Antenna...
- Page 19 – Grinder-doser The automatic grind corrections are made with an electrically motorised worm screw and magnetic sensor. This incredibly precise mechanism is designed to register grind size; it can ensure distances between the 2 grinders at increments of 0.005 millimetres for each control point.
- Page 20 – Coffee Machine Compatibility PGS is compatible and does work with the following Faema brand coffee machines: - EMBLEMA 2 - 3 - 4 groups Automatic; versions for standard and tall cups with TOP card (except Semiautomatic model)
- Page 21 – Coffee Machine Coffee machine models compatible with PGS must be updated to communicate with MD3000 On Demand Bluetooth: 1. for hardware with the specific Bluetooth KIT code NR9BW9999999A 2. for software with the software version 029.00.H0 or later The Bluetooth KIT module is applied to the TOP CPU board located on the base of the machine...
- Page 22 Bluetooth Kit code NR9BW9999999A The Kit contains a clear and detailed assembly and instruction manual for use by qualified and authorised technical personnel.
- Page 23 Updating Coffee Machine Software After installing the Bluetooth card on the machine, place the CPU card dip-switch 1 in the ON position and: 1. If the machine is not equipped with a card reader, connect the card reader to the CN24 connector on the TOP CPU card 2.
- Page 24 TOP Card Software Update KIT How do you load new software on an UPDATE card? Gruppo Cimbali provides a special software update Kit (Order Code 535528008) for programming the UPDATE CARD with the new version of the software made available by Gruppo Cimbali’s ATC service.
- Page 25 MD3000 ON DEMAND BLUETOOTH Function Logic...
- Page 26 Flow Control Algorithm – Instructions on the side of the machine The heart of the PGS is based on a specific control algorithm which has been entirely designed and developed in-house at Gruppo Cimbali. • The algorithm uses the flow rate Q as the control parameter during use Q = (0.5*V) / T [ml/s]...
- Page 27 Flow Control Algorithm – Instructions on the side of the machine • During the grinder-doser installation phase, it is very important to perform a precise calibration of grind levels and quantities of coffee to be ground. This must be done by qualified installer.
- Page 28 Flow Control Algorithm – Instructions on the side of the machine • The sophistication of the control algorithm makes it possible to define the extent of grind corrections in order to accelerate the grinder-doser adjustment process in case a considerable change is required in the grind. •...
- Page 29 Flow Control Algorithm – Instructions on the side of the machine • After each grind adjustment, the dose of a double espresso and single espresso is increased/decreased automatically according to the percentages entered by the technician. • If this auto-adjustment were not performed, an increase or decrease in the adjustment of the grind would trigger an increase or decrease in the quantity (grams) of ground coffee.
- Page 30 Algorithm for Flow Rate Control It is critical to point out some situations (the most common ones) that occur while dispensing double espressos which the algorithm does not calculate. • If two single doses are ground one after the other in a double filter, the algorithm will not calculate the flow rate, even if the key to dispense the double espresso is pushed.
- Page 31 MD3000 ON DEMAND BLUETOOTH Technical functions functions...
- Page 32 Touch Screen The right balance between a blue-backlit, LCD display (128 x 64 pixels) and "custom" Touch Screen (45 x 27 mm) makes the most of every available surface, ensuring simple, versatile and comprehensive operation while maintaining a cost/benefit ratio that is spot- on for this product’s target market.
- Page 33 Manual grind adjustments The motorised grinder-doser movement system does not have a handle to regulate the size of the grind. Instead, the technical menu has a specific menu dedicated to manual grind adjustments Using the two dedicated buttons the technician can adjust the grind with a numerical confirmation on the display.
- Page 34 Work area 5 mm of travel Adjustable holders can accept filters with over 20 gr. capacity.
- Page 35 Work area “Hands-Free” support at an 8° angle, critical for accommodating and supporting filter holders without having to touch them.
- Page 36 Push-button panel The “Touch Screen” is equipped with 2 dose selection buttons, one for continual supply ON/OFF; it can also be programmed for a third dose. The flashing key indicates the preselected or activated dose. The other two keys are for programming.
- Page 37 Start up Switch: for an easy and comfortable start-up of the grinder using a pressure filter holder, can be used in the “preselected” mode. The pressure of the filter holder on the switch acts on a photocell sensor which is impervious to mechanical wear even after countless activations.
- Page 38 Packaging Packaging is heavy-duty cardboard. Exterior housing and all the internal packaging materials for Gruppo Cimbali grinders are 100% recyclable. Dimensions L 590 x H 520 x P 280 mm...
- Page 39 MD3000 ON DEMAND BLUETOOTH Range & Configurations...
- Page 40 EUROPEAN Grinder-Doser Code CODE: GRCBQZ9U1999A DESCRIPTION: GRINDER. MD3000 O.D. TOUCH P. 50M WL Markets for launching the product (where double espressos are prevalent) - ITALY - FRANCE - SPAIN - PORTUGAL...
- Page 41 Grinder-Doser Equipment Measuring cup: Calibrated Tamper: For use as a reference Constantly applying the same once the correct dose has force to ground coffee is one of been established using a the critical parameters for a precision scale. great espresso. Compactor: A very important component, this is a compacting plate which ensures uniformity and keeps coffee from evaporating which...
- Page 42 Bluetooth KIT Code CODE: NR9BW9999999A DESCRIPTION: BLUETOOTH KIT EMBLEMA...
- Page 43 Accessories Filter holder supports: A stable place to rest the filter holder while applying pressure, ensures the same amount of force is always used on the ground coffee. Non-slip, stainless steel, easy to clean, includes a place to rest the tamper. Filter holder support with logo Filter holder support with logo Available for purchase with code...
- Page 44 Regulations: key Product certifications / safety The D marking is a safety trademark which is registered and provided by UL-Demko. With the EC marking, which is compulsory in EU member countries, the manufacturer declares that the single product complies with the general regulations regarding safety included in the directive about EC marking.
- Page 45 European legislation in force. To safeguard its consumers, Gruppo Cimbali, has decided to certify its own products with TIFQ. To date, Cimbali is the only company producing coffee making equipment with such certification.
- Page 46 MD3000 ON DEMAND BLUETOOTH Maintenance...
- Page 47 Accessing the inside After extracting the hopper Remove the three Allen screws to take Remove the three screws to out the gear which regulates the grind extract the numbered flange Micro safety switch Turn the grinder housing in the controlled by the hopper clockwise direction to access the switch grinders...
- Page 48 Replacing grinders After removing the 3 screws from the fixed grinder (photo on the left) and the three screws from the moving grinder (photo on the right) be sure to clean the grinder support surfaces thoroughly; this is very important to avoid compromise the flatness of the grinders themselves!
- Page 49 Access to the grinder movement system Once the gear which regulates the grind is removed, it is possible to remove the two screws that hold the movement of the grinders together in order to replace the motor or the magnetic sensor...
- Page 50 Accessing the inside Remove the four Allen screws to take off the display This screw Loosen these two adjusts the screws to remove height of the filter and replace the holder support or compactor plate removes it Remove the two upper and lower screws to take off the instrument panel...
- Page 51 MD3000 ON DEMAND BLUETOOTH Selling points...
- Page 52 PRECISION calibrated at increments of 0.005 mm thanks to the incredibly precise movements of the electric grinders. INNOVATION the wireless communication system, control algorithm, and grinder movement system have all been entirely developed in-house at Gruppo Cimbali.
- Page 53 What are the Advantages of MD3000 O.D. BT ? Automating the grinder adjustments has the significant advantage of eliminating - or reducing as much as possible - service calls required to ensure coffee quality. This avoids maintenance by the barista, but above all those service calls by specialised technicians following up on a maintenance request because of an assumed technical problem.
