- Page 1 Manual Multi-L 2.0 SCP-2 1.0 1/26 v.1.04 28/10/2013...

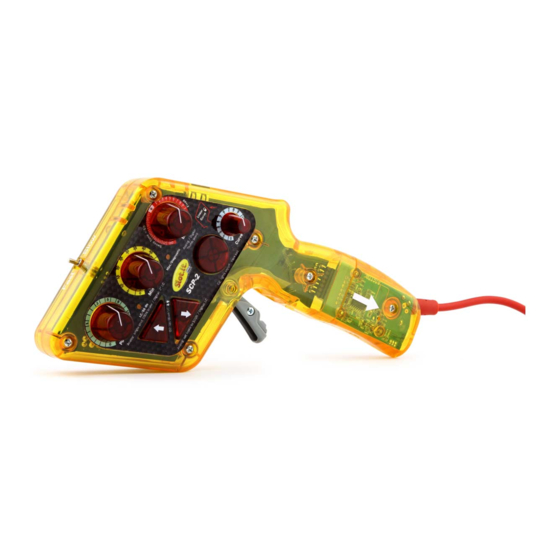

- Page 2 Thank you for purchasing this Slot.it controller. Before starting, please make sure you have read the following instructions carefully. The SCP-2 is contactless, friction free, with linear magnetic trigger position readout (patented), and features an interchangeable cartridge system, to connect to either analog or digital systems. The digital cartridge is universal for all the available commercial brands (Ninco, Carrera, Hornby and Tecnitoys).
- Page 3 Slot.it SCP-2 1.0 UICKSTART for ANALOG SYSTEM trigger map selector Fast Slow Minimum Voltage Setting (Sensitivity) Red/Green LED Green LED Power Ramp Control fixed red: MAX trigger reached Analog: 100% brake active (AntiSpin) fixed green: MIN trigger reached Double Action Brake:...
- Page 4 (one finger driving) or the 'long' (two fingers driving). Use the provided screw. Il vostro nuovo SCP-2 permette di installare un grilletto corto (per guida a un dito) o lungo (per guida a due dita. Usi la vite allegata ai grilletti.
- Page 5 MOTORE della pista, e poi andate alla sezione Quickstart common section di questo manuale. El esquema de color de los cables SCP-2 sigue la codificación de color estándar de los EE.UU. (igual a los mandos Parma). En nuestra opinión, está realmente estúpido utilizar cualquier cosa diferente del rojo para la batería (+) y cualquier cosa con excepción del negro para la tierra,...
- Page 6 “vampiros” para obtener energía de la línea de transformadores al regulador. Además, cada sistema digital tiene su propio conector del cable la base digital; el SCP-2 (solo version digital) incluye todos los cables necesarios para conectarlo a la caja de control digital.
- Page 7 Connect the male jack to the SCP-2 controller. Choose the control cable for your system, according to the table, and connect it to the SCP-2 (RJ45 end) and to your control box (side according to the table above). Note that to remove the control...
- Page 8 Conecte también el conector masculino con el regulador SCP. Elija el cable de control para su sistema, según la tabla, y conéctelo con el SCP-2 (extremo RJ45) y con su caja de control (posición según la tabla arriba). Observe que para quitar el cable de control del regulador es necesario insertar un objeto en forma de cuña en el pequeño agujero de la caja plástica del...
- Page 9 QUICKSTART for oXigen SYSTEMS (SCP-2 with oXigen cartridge) . The oXigen Slot.it wireless digital system uses a specific cartridge on the SCP2. Please refer to the 'oXigen base manual', downloadable from the oXigen area of the Slot.it web site, for further information.
- Page 10 Das komplette Handbuch kann von der Slot.it Website (www.slot.it) heruntergeladen werden. La version électronique du présent manuel est disponible en ligne sur le site, Slot.it site: www.slot.it, en plusieurs langues (Italien / Espagnol / Allemand / Français). NOW READ THE COMPLETE MANUAL! ORA LEGGERE IL MANUALE COMPLETO! LEA Ud.
- Page 11 Understanding how the SCP-2 works The Slot.it SCP-2 is a sophisticated, microcontroller based, speed controller for slot cars. It has a PWM output for both power and brake, plus a lot of other features. Without entering too much into detail, PWM (Pulse Width Modulation) is one of the possible ways to control the output voltage of an electronic system.
- Page 12 Mode 1 – LINEAR with step Entering Mode 1 Mode 1 is selected by putting the switch on the back of the controller to the 'LIN' (top) position, and the switch on the top side, to any position except the '00' one: back of controller top of controller Slow...
- Page 13 So, ideally one would want, in this case, to have a controller, which responded as if the power was 12V in the turns, and 18V in straight lines. From this observation, the 'linear with step' mode was created to keep the power band under control, without sacrificing top speed.
- Page 14 Mode 2 is designed to give a way to reduce the top speed of the car, which is especially useful for beginners or young kids. NEW IN SCP-2 Being a 'special' mode, it is accessed through a protected procedure, as follows: reset (power on) the controller with the round button pressed and move the switch to 'slow' from 'std' while keeping the brake pressed.
- Page 15 V Power Supply trig% Vmax is limited by the CM knob 15/26 v.1.04 28/10/2013...
- Page 16 Mode 3 – CURVE - explained Entering Mode 3 Select mode 3 by putting the switch on the back of the controller to the 'CRV' (bottom) position. back of controller top of controller Slow Fast Using Mode 3 The 'Curve' mode is very flexible. By appropriate adjustment of the Curve/Max CM knob, together with the position of the dip switches (DS), the response curve can be custom tailored.
- Page 17 Envelope of curves with given DS, MS and CM change knobs: NEW IN SCP-2 All this said, in Mode 3, as in the other modes, the trigger mapping can be set to an aggressive, standard or soft response using the additional switch.
- Page 18 Mode 4 – GHOST - explained Entering Mode 4 Activate the GHOST (auto run) mode by executing the following actions in sequence: 1. turn the Curve/Max knob completely counterclockwise to 0 2. put the CRV/LIN switch on LIN 3. press HAND BRAKE 4.
-
Page 19: Power Trim

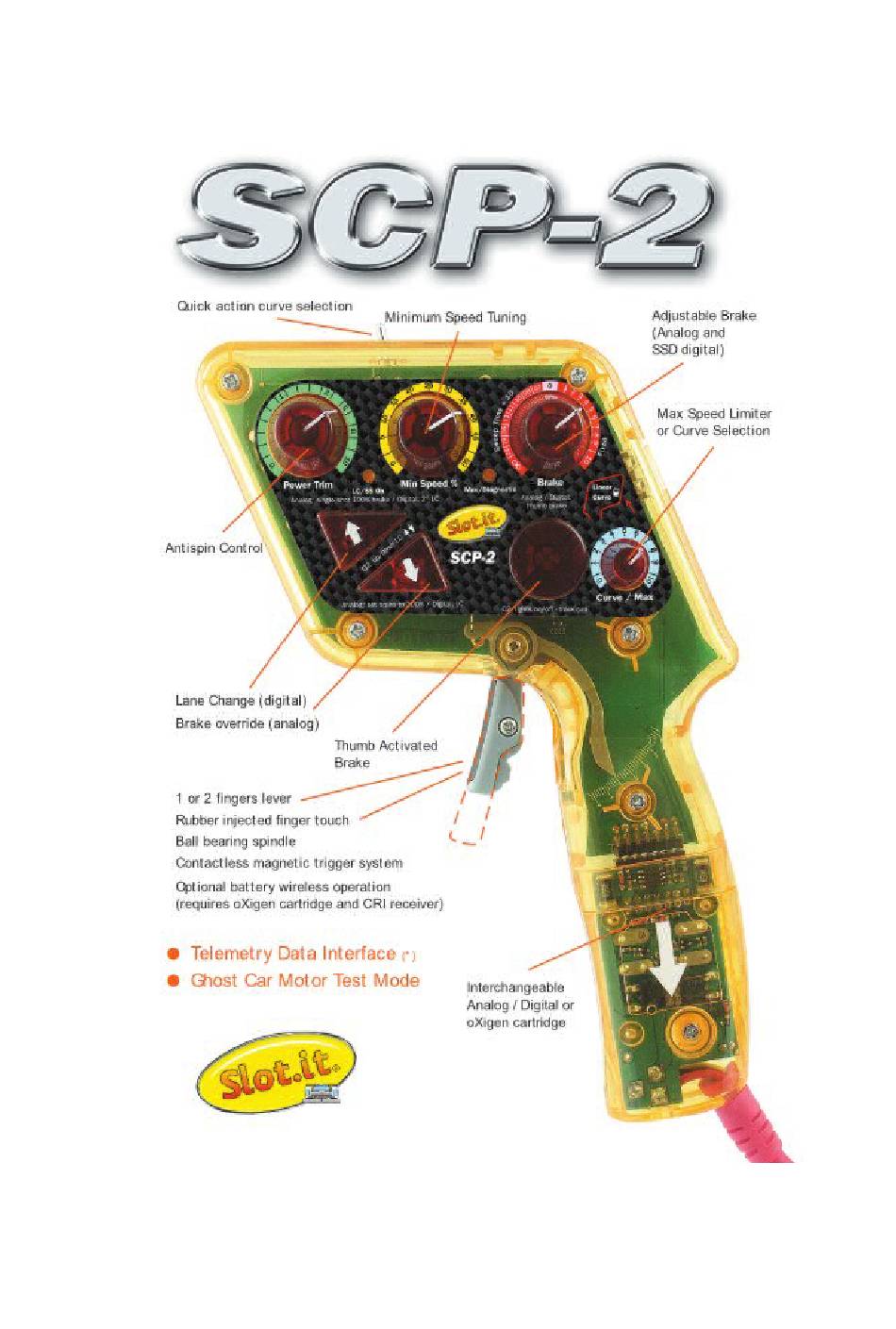

SCP-2's controls The SCP-2 has four main knobs, three push buttons, a sliding switch and a lever switch. Power Trim (PT): also known as 'antispin', this knob controls how the power trim strategy delivers the power to the car. no power trim... -
Page 20: Min Speed
Only, the possible settings are 100%, 80%, 60%, 40%, and 20%. Ninco N-Digital: either brake 100%, or no brake. Tecnitoys SDS: no braking is provided by Tecnitoys on their system, so there's no braking available with the SCP-2, either. Carrera: always 100% brake when available from the track. 20/26... - Page 21 Lane Change command pressed himself. The advantage of this is that, once pressed, the driver can concentrate on driving, and the SCP-2 will take car of lane changing, for the next two seconds. A further pressing of the 'UP' arrow when the strategy is active will switch it off.
- Page 22 CRV/LIN selector and Switch (top of controller): The CRV/LIN selector and the Switches are located respectively on the back and on the top of the controller. Together, they are used to select the working modes of the SCP-2. back of controller...
- Page 23 The USB-like data port on the side of the controller is NOT a USB PORT. Do NOT connect it to your PC or data key. It does not harm the SCP-2 or the PC, but is completely useless to do so.
- Page 24 How does the SCP-2 protect itself As the SCP-2 can operate in a very harsh environment, it has several ways of protecting itself against short circuits and polarity inversions. The following applies to analog systems with 'home racing' cartridge only. The high end cartridge is protected differently, by fuse and by higher...
- Page 25 SC 1.1 and now SCP-2. A small change of the 'base' map, which normally is hidden from the user, can radically change the behaviour of the controller. The base mapping is set during production, but a rewrite of the mapping must be performed every time the trigger magnet is replaced.
- Page 26 Galileo Engineering srl, Via Cavallotti 16 – 42100 Reggio Emilia, Italy www.slot.it info@slot.it 26/26 v.1.04 28/10/2013...
