GE TFX28PBD Dimension Manual

TFX28PBDWW - GE Profile Performance

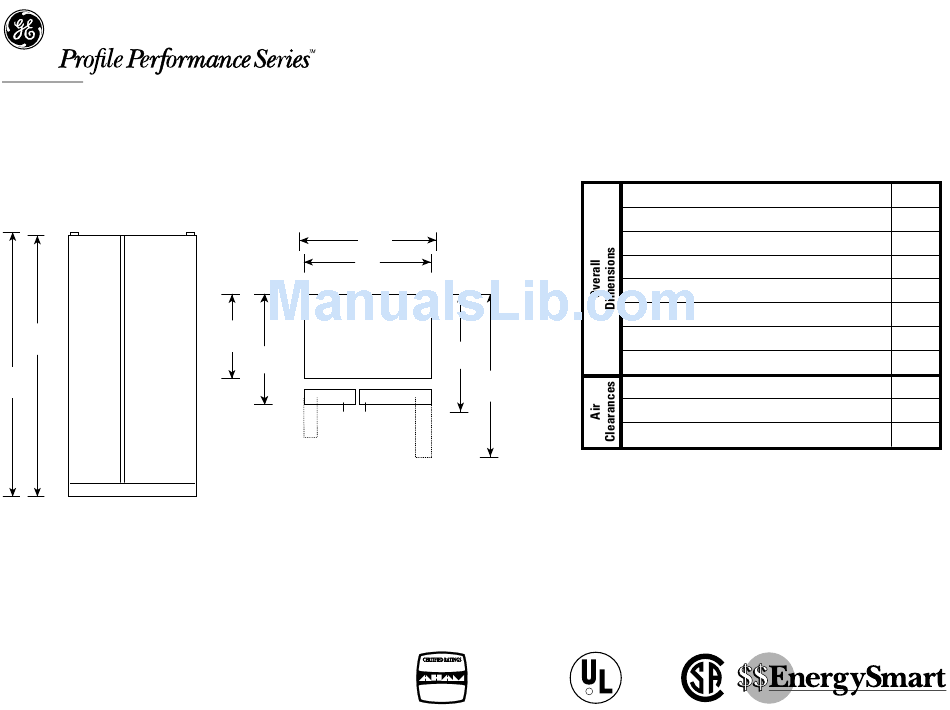

Front View
B
A
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
Specification Created 2/00
™ 28.4 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Top View
H
G
C
D
E
F
† If installed against a wall, allow clearance of 11-1/4" on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
15-3/4" Clearance required to remove fresh food full-size pan
without disassembling.
For Built-In appearance allow height space of 69-3/4" on 28 cu. ft.
refrigerators. Plus allow additional space for any neccessary
leveling adjustments.
For answers to your Monogram, ®
GE Profile Performance Series, ™
GE Profile ™ or GE appliance questions, call
GE Answer Center ® service, 800.626.2000.
Total volume and shelf
VOLUME and
SHELF AREA area are calculated by the
Association of Home
Manufacturer Certified to Appliance Manufacturers'
ASSOCIATION OF HOME R
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
standards.
Height with hinge (in.) A
Height without hinge (in.) B
Depth without Doors (in.) C
Depth with Doors (in.) D
Depth plus Handle with Doors Closed (in.) E
Depth with Doors open 90° (in.) F
Width with Doors Closed (in.) G
Width with Doors open 90° Less Door Handle(in.) H
Each side (in.)
Top (in.)
Back (in.)
Listed by
®
Underwriters
Laboratories
C US
69-3/4
68-3/4
28
30-1/2
32-5/8
49-3/8
35-3/4
38
1/8 †
1
1/2
