- Page 1 Pioneering for You Wilo-Yonos PICO1.0 en Installation and operating instructions · 4248347 • Ed.01/2021-08...
-
Page 3: Table Of Contents
9 Maintenance .................................... 14 Cleaning.......................................... 14 10 Faults, causes and remedies .............................. 14 10.1 Warning messages ...................................... 14 10.2 Fault messages........................................ 15 11 Disposal.................................... 15 11.1 Information on the collection of used electrical and electronic products.................... 15 Installation and operating instructions Wilo-Yonos PICO1.0... -
Page 4: General Information
Subject to change Wilo shall reserve the right to change the listed data without notice and shall not be li- able for technical inaccuracies and/or omissions. The illustrations used may differ from the original and are intended as an example representation of the device. -
Page 5: Personnel Qualifications
Control mode and delivery head (differential pressure) are adjustable. The differential pressure is controlled via the pump speed. For all control functions, the pump continuously adapts to the system’s changing power requirements. Installation and operating instructions Wilo-Yonos PICO1.0... -
Page 6: Overview

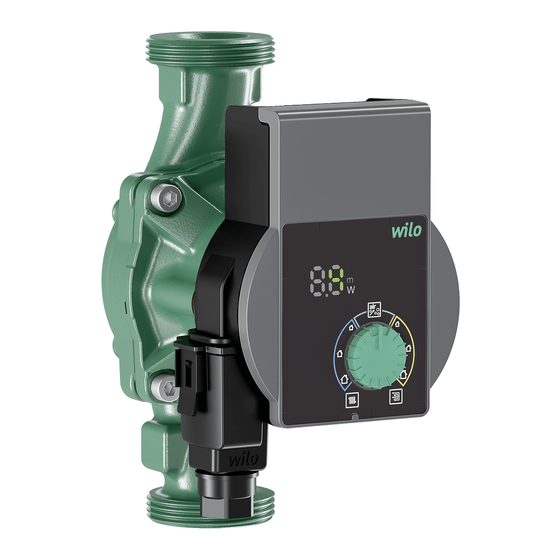

Description of the pump Overview Fig. 1: Wilo-Yonos PICO1.0 Pos. Name Explanation Pump housing with screwed connections Glandless motor Drive unit Condensate drain openings 4x around circumference Rating plate Housing screws 4 pieces for motor fixation Control module Electronic unit with LED display... -
Page 7: Type Key
H min Pump venting function The venting function is activated via the operating button and automatically vents the pump for a period of 10 minutes. However, this function does not vent the heating system. Installation and operating instructions Wilo-Yonos PICO1.0... -
Page 8: Application/Use
ƒ Never operate with phase angle control. ƒ Use authorised Wilo accessories and genuine spare parts only. Intended use also includes observing these instructions and the specifications and markings on the pump. Any use beyond the intended use is considered misuse and will void any warranty claims. -
Page 9: Installation
Risk of fatal injury from magnetic field! Highly magnetic components are fitted inside the pump; they can cause fatal injury to people with medical implants if the pump is dismantled. • Never remove the rotor. Installation and operating instructions Wilo-Yonos PICO1.0... -
Page 10: Electrical Connection
Immediate risk of fatal injury if live components are touched. • Before commencing work, switch off the power supply and secure it from being switched on again. • Never open the control module and never remove operating elements. WILO SE 2021-08... - Page 11 Ensure that the connecting cable does not touch the pipes or the pump. 6.2.2 Connecting the pump Installing the Wilo-Connector ƒ Disconnect the connecting cable from the power supply. ƒ Observe the terminal assignment (PE, N, L). ƒ Connect and install the Wilo-Connector (Fig. 5a to 5e). Installation and operating instructions Wilo-Yonos PICO1.0...
- Page 12 Fig. 5: Installing the Wilo-Connector Connecting the pump ƒ Earth the pump. ƒ Connect the Wilo-Connector to the control module until it snaps into place (Fig. 5f). ƒ Activate the power supply. Removing the Wilo-Connector ƒ Disconnect the connecting cable from the power supply.
-
Page 13: Commissioning
– The LED display shows the set setpoint H of the delivery head in m. Pump Number of square metres of heated space in m² Yonos PICO.../1-4 m Yonos PICO.../1-6 m Yonos PICO.../1-8 m > 220 > 220 > 220 Installation and operating instructions Wilo-Yonos PICO1.0... -
Page 14: Shutdown
Shut down the pump immediately if the connecting cable or other electrical compon- ents are damaged. ƒ Disconnect the pump from the power supply. ƒ Contact Wilo customer service or a specialist technician. Maintenance ƒ Cleaning Carefully remove dirt from the pump on a regular basis using a dry duster. -
Page 15: Fault Messages
Check conditions of use temperature Module defective Electronics defective Request customer service If the fault cannot be remedied, contact a specialist technician or the Wilo customer service. Disposal 11.1 Information on the collection of Proper disposal and appropriate recycling of this product prevents damage to the envi- used electrical and electronic ronment and putting your personal health at risk. - Page 16 BS EN 60335–1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019; BS EN 60335–2–51:2003+A1:2008+A2:2012; BS EN 61000–6–1:2007; BS EN 61000–6–2:2005; BS EN 61000–6–3:2007+A1:2011; BS EN 61000–6–4:2007+A1:2011; BS EN 16297–1:2012; BS EN 16297–2:2012; BS EN IEC 63000:2018; WILO SE Group Quality Person authorized to compile the technical file is: Wilopark 1...
- Page 17 EN 60335–1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019; EN 60335–2–51:2003+A1:2008+A2:2012; EN 61000–6–1:2007; EN 61000–6–2:2005; EN 61000–6–3:2007+A1:2011; EN 61000–6–4:2007+A1:2011; EN 16297–1:2012; EN 16297–2:2012; EN IEC 63000:2018; WILO SE Person authorized to compile the technical file is: Group Quality Bevollmächtigter für die Zusammenstellung der technischen Unterlagen ist: Wilopark 1 Personne autorisée à...
- Page 18 AE/EC DEARBHÚ COMHLÍONTA WILO SE vakuuttaa, että tässä vakuutuksessa kuvatut tuotteet ovat WILO SE ndearbhaíonn an cur síos ar na táirgí atá i ráiteas seo, siad i seuraavien eurooppalaisten direktiivien määräysten sekä niihin gcomhréir leis na forálacha atá sna treoracha seo a leanas na hEorpa agus sovellettavien kansallisten lakiasetusten mukaisia: leis na dlíthe náisiúnta is infheidhme orthu:...
- Page 19 EU/ES-IZJAVA O SKLADNOSTI WILO SE estne prehlasuje, že výrobky ktoré sú predmetom tejto WILO SE izjavlja, da so izdelki, navedeni v tej izjavi, v skladu z dolo ili deklarácie, sú v súlade s požiadavkami nasledujúcich európskych direktív a naslednjih evropskih direktiv in z nacionalnimi zakonodajami, ki jih odpovedajúcich národných legislatívnych predpisov:...
- Page 24 Local contact at www.wilo.com/contact WILO SE Wilopark 1 44263 Dortmund Germany T +49 (0)231 4102-0 F +49 (0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
