Installation Tips To Maximize The Built-In Look; Rough-In Dimensions And Installation Information - GE Profile PSH25PSWSS Dimensions And Installation Information

PSH25PSW
GEProfile Counter-Depth
™

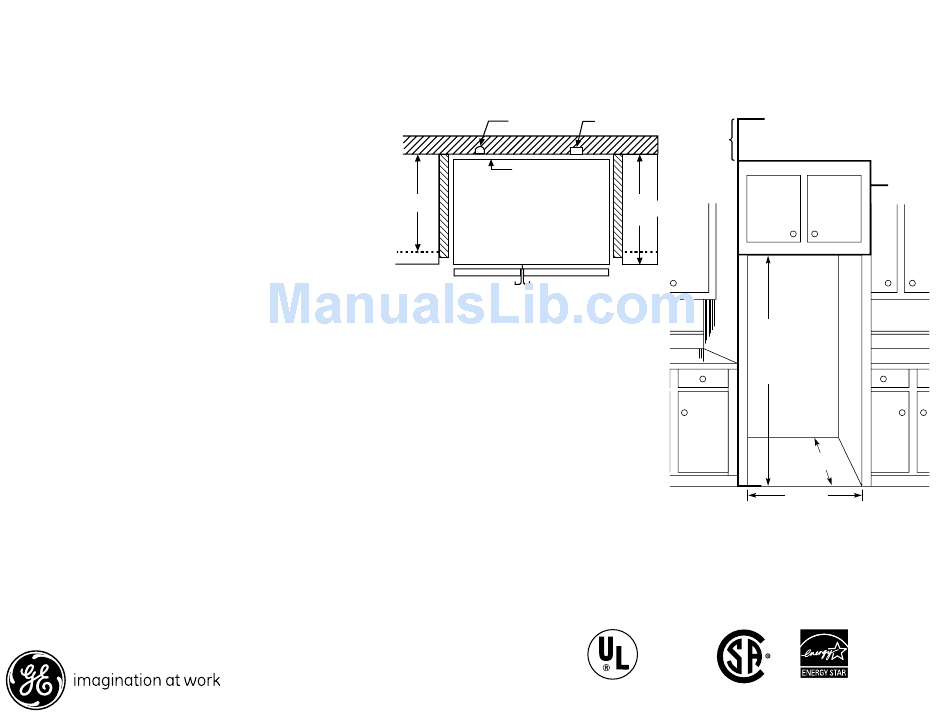

Rough-In Dimensions and Installation Information (in inches)

Installation Tips to Maximize the Built-In Look

• A llwall/floormoldingshouldberemovedpriortoinstallation.
• W aterrecessonrearwallrecommendedtopreventwater
 linedamage.48"minimumlength,1/4"diameterwater
 linetubingrecommended.
• W henpossible,recessbothcopperwaterlineandelectrical
 outlet.(Seelocalcodes)
• F rontandrearlevelinglegsareadjustableforthebuilt-inlook.
 (Seeowner'smanual)
**Therough-indimensionsof70-1/4"/72-1/4"areminimumand
 measuredfromthefinishedfloortotopofopening(orthe
 undersideoftheoverheadcabinets).ForModelswithTrimKit:
 Ifframelessstylecabinetsareplannedforabovetherefrigerator,
 youmayneedtoconsideraddingamaximumof1/4"(70-1/2")
 toheightofopeningfor23cu.ft.modelsand1/8"(72-3/8")for
 25cu.ft.modelstoallowforadditionalclearancebetweenthe
 cabinetdoorsandthetopofrefrigeratortrimwhenthecabinet
 doorsareinopenposition.
ForanswerstoyourMonogram, GEProfile
®
GE ® appliancequestions,visitourwebsiteat
ge.comorcallGEAnswerCenter service,
®
800.626.2000.
ENERGYSTAR 24.6Cu.Ft.Side-By-SideRefrigerator
 ®
24"
Cabinet
or
™
FOR 24 CUBIC FOOT MODELS
Water Electrical
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
25"
Counter
Top
Fig 2A eps
*The rough-in dimensions of 70-1/4"/72-1/4" are minimum and measured from
the finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening for 23 cu. ft. models and 1/8" (72-3/8") for 25 cu. ft. models
to allow additional clearance between cabinet doors and top of refrigerator trim
when cabinet doors are in open position.
Listed by
Underwriters
Laboratories
Collar Trim In. w/ceiling
Water
8' Ceiling
12"
Soffit
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
70-1/4"*
23 cu. ft. models
72-1/4"*
25 cu. ft. models
24-1/2"
36-1/8"
As an EnErgy StAr
partner, gE has determined
that this product meets the
EnErgy StAr guidelines
for energy efficiency.
Specification Created 2/07
Electrical
13" to 14"
Cabinet
25"
Counter
Top
Trim
®
210250
