Thank you, and congratulations on your choice of the Roland PD-85 V-Pad.
201a
Before using this unit, carefully read the sections entitled: "USING THE UNIT SAFELY" and "IMPORTANT NOTES"
(p. 6; p. 7). These sections provide important information concerning the proper operation of the unit. Additionally,
in order to feel assured that you have gained a good grasp of every feature provided by your new unit, Owner's
manual should be read in its entirety. The manual should be saved and kept on hand as a convenient reference.
VERY IMPORTANT!!!
BEFORE playing the pad, you must TUNE it to your preferred
playing tension. They are NOT tuned before shipping. Failure to
adjust tension may result in damage to the trigger sensor.

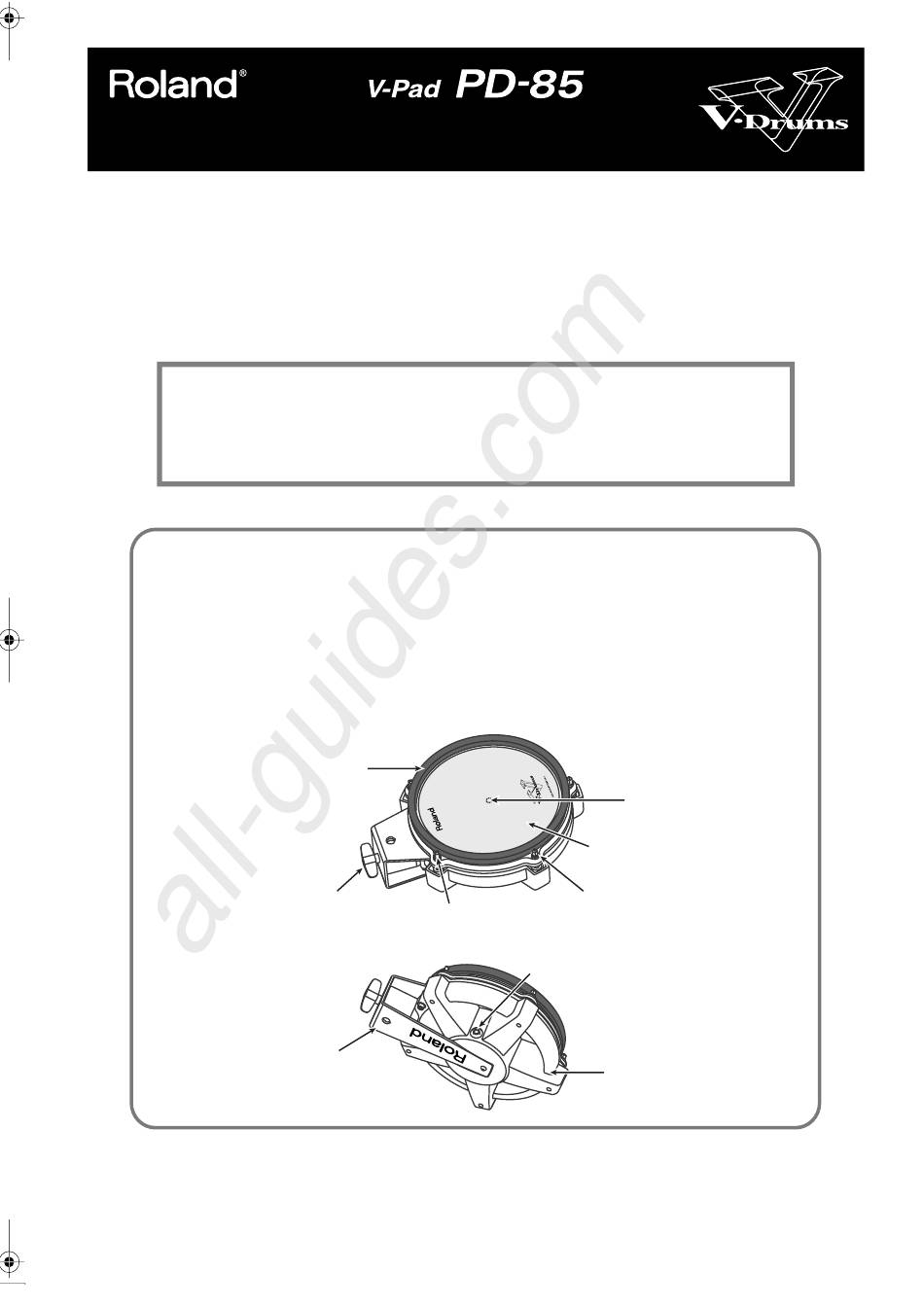

fig.Cover.e

Contents of the Package

❑ PD-85 (pad unit)
❑ Connection Cable
❑ Tuning Key
■ Owner's Manual (this manual)

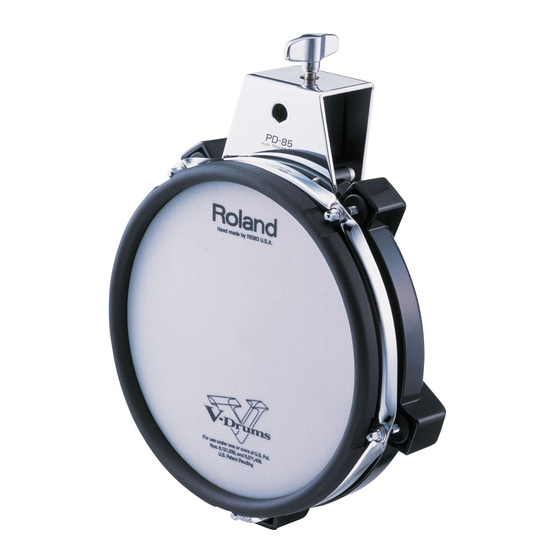

Names of Components

Stand Fixing Screw
202
All rights reserved. No part of this publication may be reproduced in
any form without the written permission of ROLAND CORPORATION.
03894956
'05-2-1N
All manuals and user guides at all-guides.com
Owner's Manual
Hoop (Rim)
Tuning Bolt
Holder
Copyright © 2005 ROLAND CORPORATION
Sensor
Head
Washer
Output Jack
Frame
