www.tresore.ch

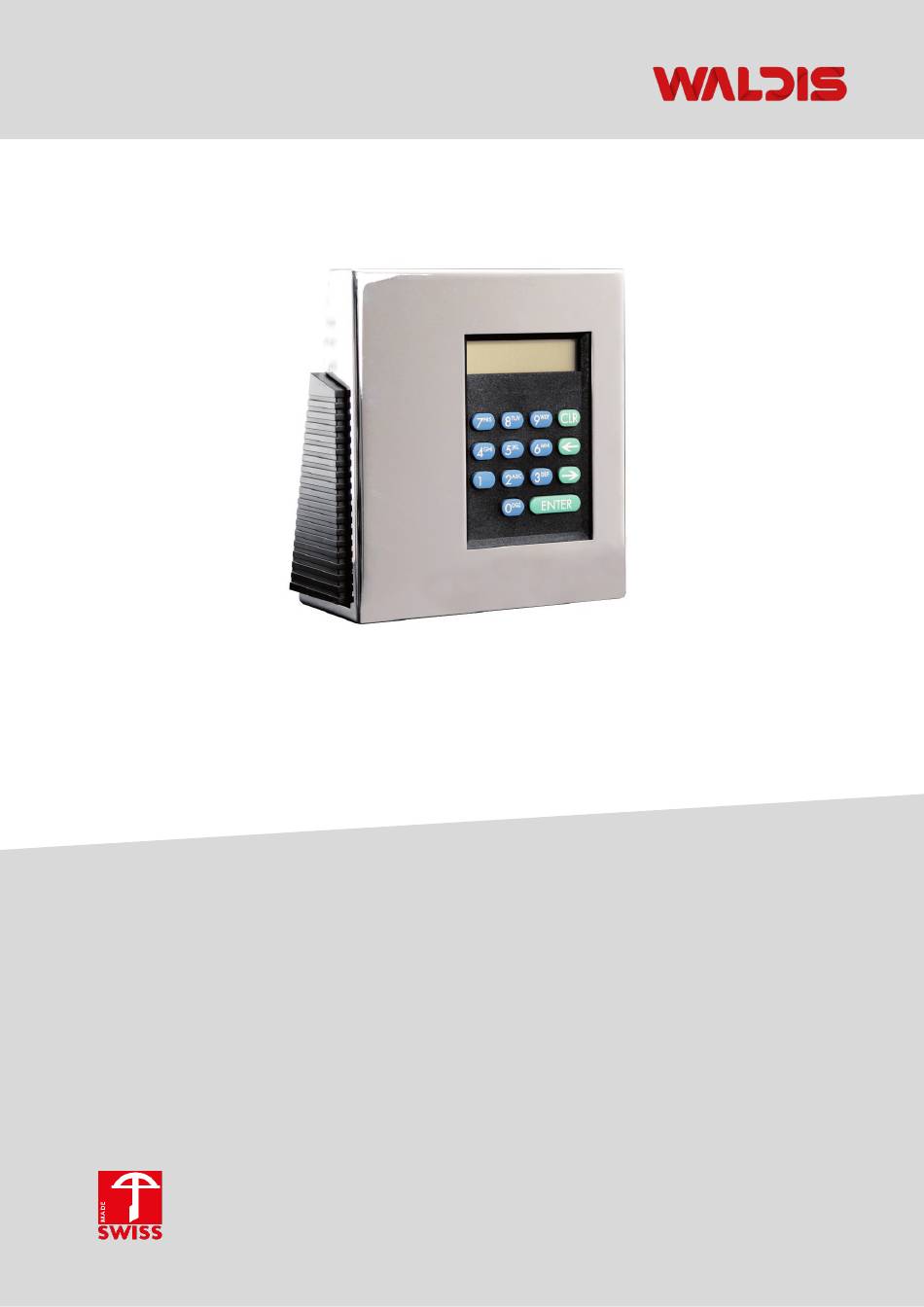

OPERATING INSTRUCTIONS
KEYPAD LOCK
PAXOS COMPACT DOUBLE LOCK
Electronic door lock for WA safes
Issue 08.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAXOS COMPACT DOUBLE LOCK and is the answer not in the manual?

Questions and answers

Related Manuals for WALDIS PAXOS COMPACT DOUBLE LOCK

Summary of Contents for WALDIS PAXOS COMPACT DOUBLE LOCK

  • Page 1 OPERATING INSTRUCTIONS KEYPAD LOCK PAXOS COMPACT DOUBLE LOCK Electronic door lock for WA safes Issue 08.2020...
  • Page 2 Thank you very much ❤ We would like to thank you for choosing Waldis when it comes to safety. When buying a safe, you have chosen a product tested according to EN1143-1. A Swiss quality product with VdS - tested security.

  • Page 3: Table Of Contents

    Table of contents Safe lock ........................ 1 1.1. General notes ....................1 1.1.1. Closed position ..................1 1.1.2. Opening the lock ..................1 1.1.3. Closing the lock ..................1 1.1.4. Important information ................2 Code Programming ....................3 1.2. Code programming menu ................3 1.2.1.

  • Page 4: Safe Lock

    Safe lock 1.1. General notes 1.1.1. Closed position = Move to the "OPEN" position. (Turn in the direction of the arrow to open the safe). 1.1.2. Opening the lock First turn the opening rotary handle to the closed position. This relieves the load on the lock bolt.

  • Page 5: Important Information

    1.1.4. Important information The Paxos Compact lock contains 2 user codes and 1 master code per lock body. In addition, another 24 "employee codes" can be defined per lock body. User code 1 lock 1 (Oca1): 11 22 33 10 "Enter". User code 2 lock 1 (Ocb1): 11 22 33 20 "Enter".

  • Page 6: Code Programming

    Code Programming 1.2. Code programming menu ATTENTION: It is essential to reprogram the two user codes 1 and 2, as a third party may know the two factory codes and the safe can be opened. All code reprogramming must be performed with the door open. 1.2.1.

  • Page 7: User Code 1 Lock 2 (Oca2)

    1.2.3. User code 1 Lock 2 (Oca2) Procedure 1. Lock displays "Unlocked", confirm with "Enter 2. Press the "Enter" key, confirm the question "Change code?" again with "Enter 3. Select opening code a2 with the arrow key and confirm with "Enter 4.

  • Page 8: Employee Codes C1 To Z1 And C2 To Z2

    1.2.7. Employee codes c1 to z1 and c2 to z2 Procedure 1. Open the lock with the previous code (when programming for the first time 11 22 33 20) "Enter", the lock is "Unlocked". 2. press the opening rotary handle down and open the safe door 3.

  • Page 9: Deletion Of An Employee Code 03 Occ1 To 95 Oc95-1

    1.2.9. Deletion of an employee code 03 OCc1 to 95 OC95-1 Procedure 1. With the lock open, press the "ENTER" key, confirm the "Code functions" question again with "ENTER 2. Select opening code 03 OCc1, 04 OCd1, 05 OCe1 to 95 OC95-1 with the arrow key and confirm with ENTER.

  • Page 10: Manipulation Lock

    1.2.11.1. A) Opening delay • Open the lock with new user code 1 or 2, lock is "Unlocked". • press the opening rotary handle down and open the safe door • Press the "Enter" key, the display shows "Code change?" •...

  • Page 11: Power Supply

    Power supply The Paxos Compact electronic lock is powered by 6 batteries (1.5 volt alkaline, type UM3 or LR6). When the battery power decreases, "Battery empty" is shown on the display. However, the lock can still be opened. As soon as the battery power drops below 6.5 volts, the lock can no longer be opened, and the batteries must be replaced.

  • Page 12: Basic Rules When Choosing A Password

    Password 4.1. Basic rules when choosing a password 4.1.1. Avoid the obvious passwords • No trivial values like 000000, 000815, 123456 • Do not use your own birthday, car license plate, phone number or name (your own, wife/husband, children, pets, company, place of residence, etc.) as password.
  • Page 13 Notes _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________ _______________________________________________________________________________...
