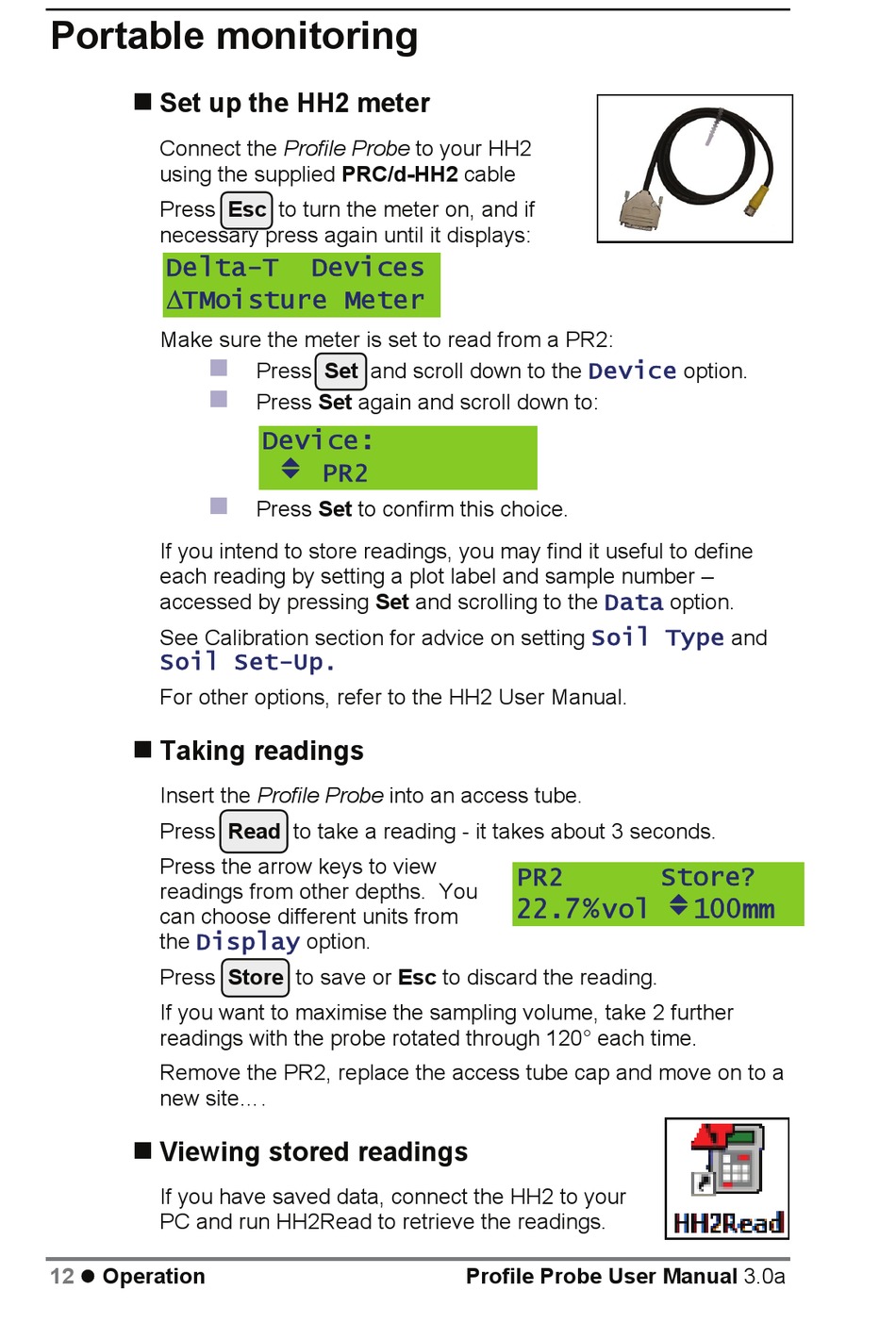

Portable Monitoring - Delta-T Devices PR2 User Manual

Portable monitoring

Set up the HH2 meter
Connect the Profile Probe to your HH2
using the supplied PRC/d-HH2 cable
Press Esc to turn the meter on, and if
necessary press again until it displays:
Delta-T
ΔTMoisture Meter
Make sure the meter is set to read from a PR2:
If you intend to store readings, you may find it useful to define
each reading by setting a plot label and sample number –
accessed by pressing Set and scrolling to the
See Calibration section for advice on setting
Soil Set-Up.
For other options, refer to the HH2 User Manual.
Taking readings
Insert the Profile Probe into an access tube.
Press Read to take a reading - it takes about 3 seconds.
Press the arrow keys to view
readings from other depths. You
can choose different units from
the
Display
Press Store to save or Esc to discard the reading.
If you want to maximise the sampling volume, take 2 further
readings with the probe rotated through 120° each time.
Remove the PR2, replace the access tube cap and move on to a
new site....
Viewing stored readings
If you have saved data, connect the HH2 to your
PC and run HH2Read to retrieve the readings.
12 Operation
Devices
Press Set and scroll down to the
Press Set again and scroll down t
Device:
v PR
2
Press Set to confirm this choice
option.
Device
o:
.
Data
Soil Type
PR
2
22.7%vol v100mm
Profile Probe User Manual 3.0a
option.
option.
and
Store
?
