Alcedo AE174 Quick Start Manual
Hide thumbs
Also See for AE174:
- Quick start manual (2 pages) ,
- Manual (16 pages) ,
- Quick start manual (2 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Alcedo AE174
Summary of Contents for Alcedo AE174

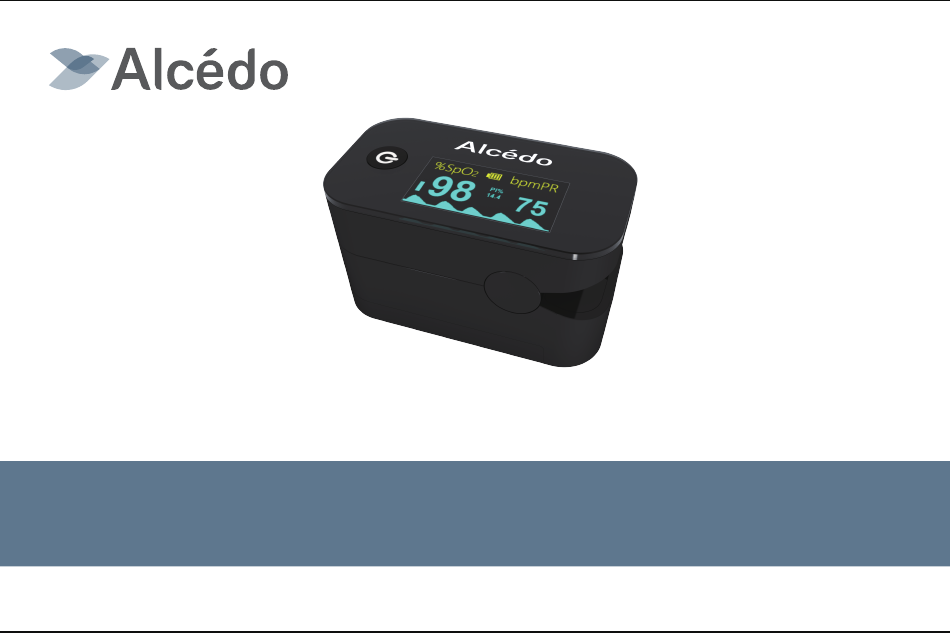

- Page 1 Pulse Oximeter AE174 QUICK START GUIDE...
-
Page 2: Screen Display

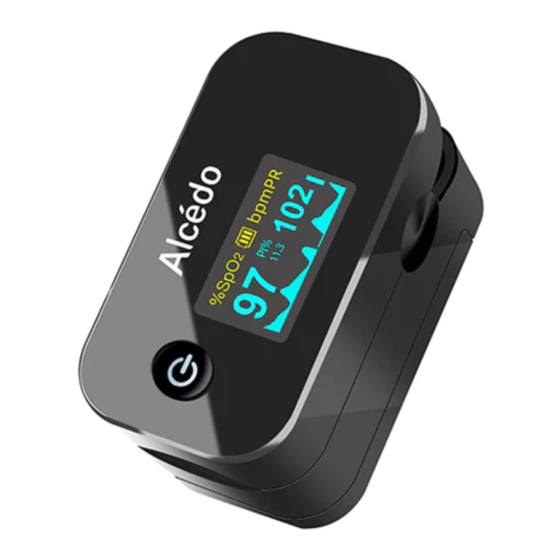

SCREEN DISPLAY Pulse Rate Oxygen Saturation OLED Display Battery Indication Screen Pulse Bar Pulse Wave Form Power Button Perfusion Index... -
Page 3: Operation
OPERATION Install Battery Install two AAA batteries into the battery compartment. -
Page 4: Using The Lanyard
OPERATION Using the Lanyard Tie the lanyard through the hole in the rear of the Pulse Oximeter. To Operate Place one of your fingers into the Pulse Oximeter to the end and press the switch button one time on front panel to turn it on. - Page 5 SETTING V2.12 Alm setup Beep Demo Restore Brightness Exit Alm setup To enter the Alarm Setup submenu To turn audible alarm on/off Beep To turn audible beep for pulse beat on/off Demo To demonstrate screen display without real measurement Restore To restore default settings Brightness To adjust screen brightness from 1-10.
- Page 6 SETTING V2.12 Sounds Setup SpO Alm Hi SpO Alm Lo PR Alm Hi PR Alm Lo Exit SpO Alm Hi Upper limit for SpO alarm SpO Alm Lo Lower limit for SpO alarm PR Alm Hi Upper limit for PR alarm PR Alm Lo Lower limit for PR alarm Select + to increase value.
-
Page 7: Pulse Sound
PULSE SOUND When the Oximeter is ON, press and hold POWER ( ) button until the setting menu. Short press (<1 sec) POWER ( ) button to scroll down the “ ” symbol to “Beep”. V2.12 Long press (>1 sec) POWER Alm setup ( ) button to change “Beep”... -
Page 8: Brightness Adjustment
BRIGHTNESS ADJUSTMENT Under the setting menu. Short press (<1 sec) POWER ( ) button to scroll down the “ ” symbol to “Brightness”. Long press (>1 sec) V2.12 Alm setup POWER ( ) button to adjust brightness Beep Demo from 1 (Low) to 5 (High). Restore Brightness Exit... -
Page 9: Out-Of Range Alarm
OUT-OF RANGE ALARM When SpO or PR reading exceeds a defined range, an alarm will tri er and the SpO or PR reading will start to flash respectively. In addition, an audible alarm can be turned on by setting the “Alm” under the setting menu to ON. - Page 10 OUT-OF RANGE ALARM The upper and lower limit for the SpO and PR alarm can be user defined. Under the setting menu, select “Alm Setup” long press (>1 sec) POWER ( ) button to enter the Alarm Setup submenu. To increase a value, ‘ ’...
- Page 11 NOTE Measurements may be inaccurate in the following situations: In a very cold environment or cold fingers Excessive finger movement during measurement When finger isn’t placed properly into the device Excessive ambient light, such as fluorescent lamp or direct sunlight, may affect the result. Enamel or acrylic fingernail polish or other fingernail applications may give inaccurate readings.
- Page 12 What is Pulse Oximeter? A pulse oximeter is a non-invasive device that indirectly monitors blood oxygen saturation (SpO ) and pulse rate (heart rate). Pulse oximeters provide an easy way of assessing your blood oxygen level and pulse rate. What is SpO ? SpO is also known as oxygen saturation.
- Page 13 What is the normal range for pulse rate? The normal resting range for pulse rate is typically considered from 60-100 beats per minute. Ask your health professional this question as it pertains to you. What is the normal range of SpO ? The normal range for SpO is typically considered from 95% - 99%.
-
Page 14: Extended Warranty
FREE extra year warranty. Please read the instruction manual for complete product information. Have questions? DO NOT RETURN THIS PRODUCT. Call our Toll-Free Consumer Help Line at 833-682-8655 or email info@alcedohealth.com for assistance with your Alcedo procucts.
