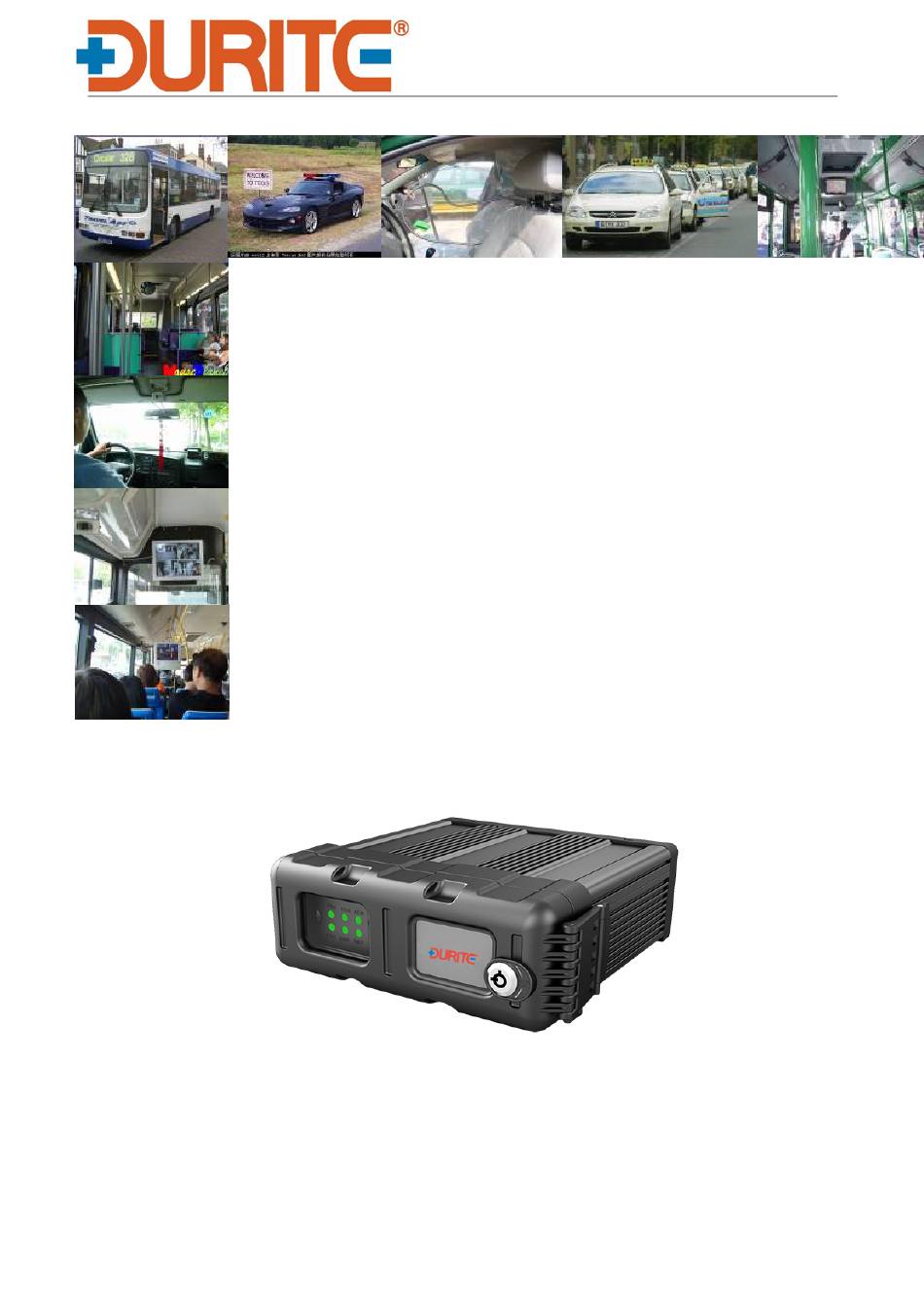

- Page 1 User manual for 0-876-35 User Manual 0-876-35 MDVR Mobile Digital Video Recorder...
- Page 2 Notice The information in this manual was current when published. The manufacturer reserves the right to revise and improve its products. All specifications are therefore subject to change without any notice. The purpose of this manual is to kindly aid the user for the operation for our MDVR. The user should have a basic understanding of computer operation and basic knowledge of how to connect peripherals and make some settings.
-
Page 3: Guarantee & Warnings
Guarantee & Warnings 1) Electrical Apparatus Safety All installation and operation should comply with local electrical safety norms. 2) Transportation In the process of transportation, storage and installation, please avoid heavy stress, violent vibration, impact and water splashing. Installation Install the equipment in accordance with the requirements, handle carefully. Do not heavily press the equipment before the MDVR installation is finished. -
Page 4: Product Characteristics
1. Product Characteristics 1.1. Overview Durite 0-876-35 is a functional Mobile Digital Video Recorder specially designed for vehicle video surveillance. It has a high-speed processor and embedded operating system, combining with the most advanced H.265 video compression / decompression technology, GPS positioning technology. - Page 5 Analog: PAL: 1080P(1920X1080), 720P(1280X720), WD1(928X576), WHD1(928X288), WCIF(464X288), D1(704X576), HD1(704x288), CIF(352x288) Image Resolution NTSC: 1080P(1920X1080), 720P(1280X720), WD1(928X480), WHD1(928X240), WCIF(464X240), D1(704x480), Recording HD1(704x240),CIF(352x240); Digital: 1080P(1920X1080), 720P(1280X720) Image Quality 1-8 levels adjustable (1 is the best) Recording Mode Boot up/Schedule/Alarm Pre-recording 0-60minutes Post-recording 0-30 minutes Playback Channel 1 channel by local playback...
-
Page 6: External Interface
1.3. System Diagram External Interface 1.4. Dimension (Unit: mm) - 10... - Page 7 Front Panel Rear Panel - 10...
-
Page 8: Definition And Pictures Of External Cables
Serial No. Print Description Power DC 8-36 V power input Sensor&Serial Interfaces of serial port and sensor AHD1~4 Analog Audio & Video input 1-4 A/V OUT Analog Audio & Video output Interface of PON power supply GPS antenna interface 3G/4G/WIFI antenna interface 1.5. - Page 9 2. FAQ 1) The system can’t start? Usually this problem results from the incorrect power connection. Please follow below steps to check the power connection: 1. Check the input power, whether the power wire is connected correctly, whether the ground wire is connected back to the battery, and whether the fuse on the power wire is in good condition.
- Page 10 3. There must be video input into the channel for recording and it must record normally. 5) The GPS works abnormally? Please follow below steps to check it: 1. Check whether the GPS antenna is installed correctly. There is a silk print logo on the GPS antenna holder behind the host device.
