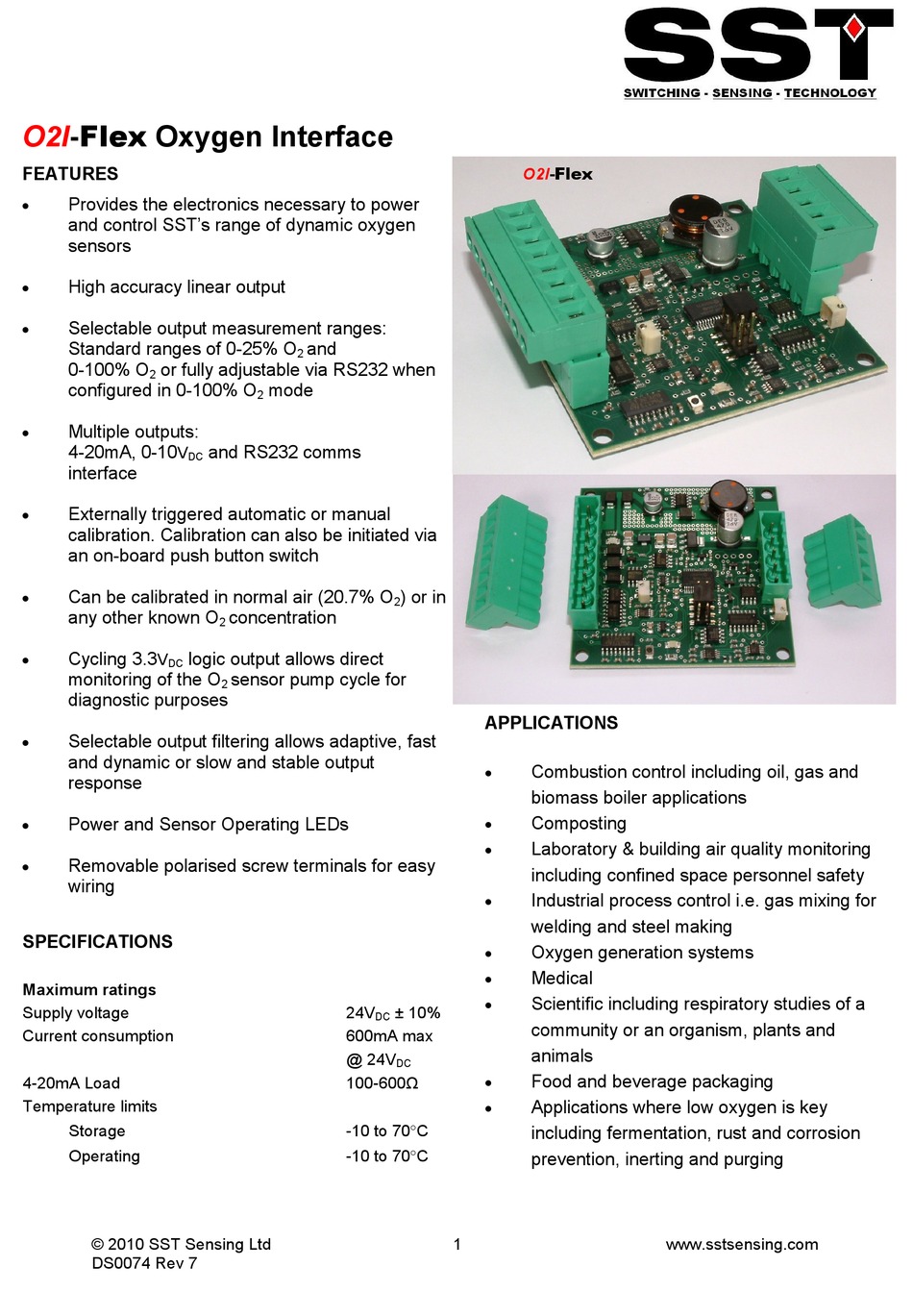

SST O2I-Flex Manual

O2I-Flex Oxygen Interface
FEATURES
 Provides the electronics necessary to power
and control SST's range of dynamic oxygen
sensors
 High accuracy linear output

Selectable output measurement ranges:
Standard ranges of 0-25% O
0-100% O or fully adjustable via RS232 when
2
configured in 0-100% O
 Multiple outputs:
4-20mA, 0-10
V
DC
interface
 Externally triggered automatic or manual
calibration. Calibration can also be initiated via
an on-board push button switch
 Can be calibrated in normal air (20.7% O
any other known O
 Cycling 3.3 logic output allows direct
V
DC
monitoring of the O
diagnostic purposes
 Selectable output filtering allows adaptive, fast
and dynamic or slow and stable output
response
 Power and Sensor Operating LEDs
 Removable polarised screw terminals for easy
wiring
SPECIFICATIONS
Maximum ratings
Supply voltage
Current consumption
4-20mA Load
Temperature limits
Storage
Operating
© 2010 SST Sensing Ltd
DS0074 Rev 7
and
2
mode
2
and RS232 comms
concentration
2
sensor pump cycle for
2
24V
DC
600mA max
@ 24V
100-600Ω
-10 to 70C
-10 to 70C
O2I-Flex
) or in
2
APPLICATIONS
 Combustion control including oil, gas and
biomass boiler applications
 Composting
 Laboratory & building air quality monitoring
including confined space personnel safety
 Industrial process control i.e. gas mixing for
welding and steel making
 Oxygen generation systems
 Medical
 Scientific including respiratory studies of a
± 10%
community or an organism, plants and
animals
DC

Food and beverage packaging
 Applications where low oxygen is key
including fermentation, rust and corrosion
prevention, inerting and purging
1 www.sstsensing.com
