Dolphin Solutions ALAVO O & M Manual

The modular behind mirror washroom solution
Hide thumbs

Advertisement

Quick Links

Download this manual
ALAVO

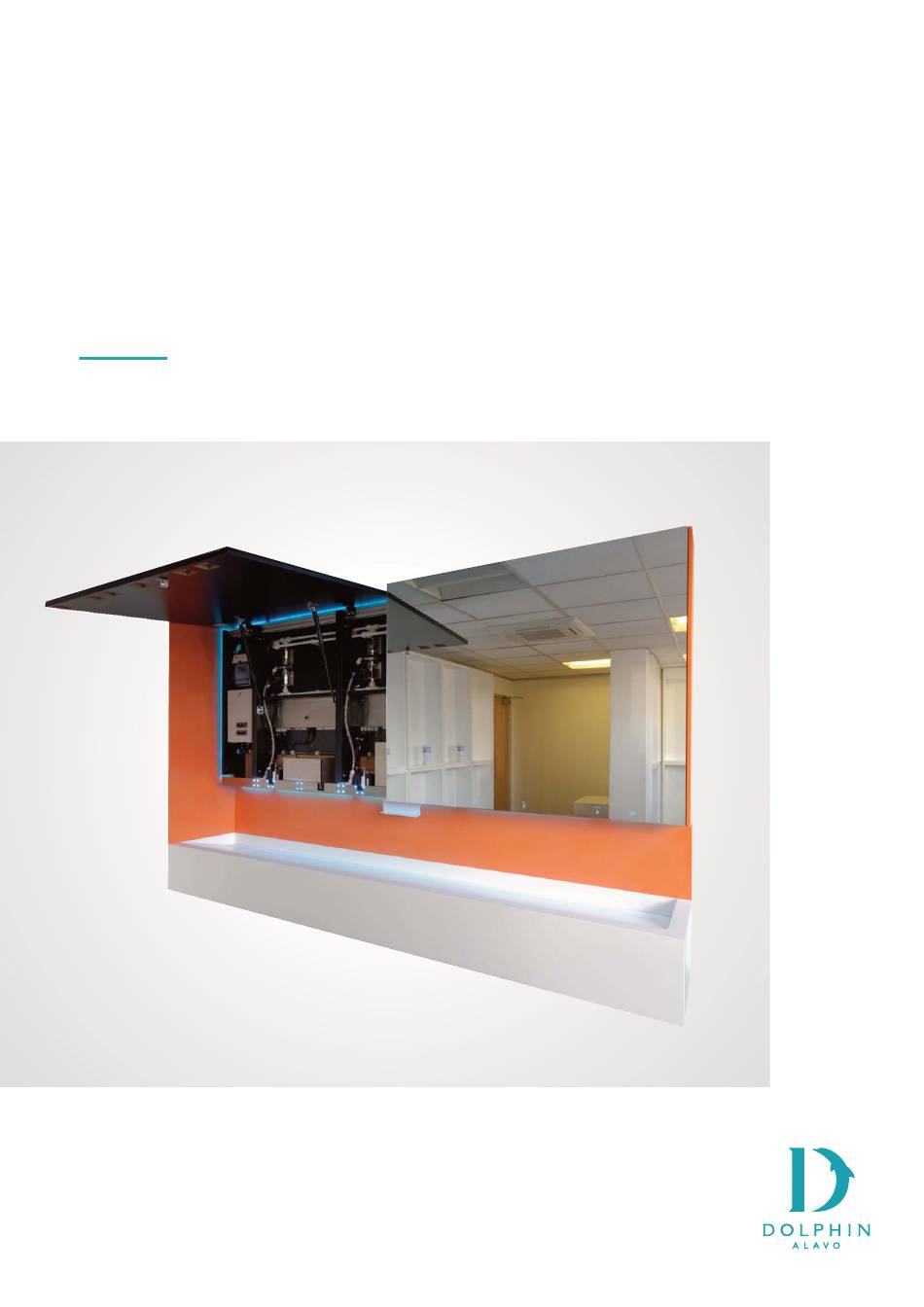

DOLPHIN ALAVO
THE MODULAR BEHIND MIRROR
WASHROOM SOLUTION
O & M M A N U A L
Last updated Oct 2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the ALAVO and is the answer not in the manual?

Questions and answers

Related Manuals for Dolphin Solutions ALAVO

Summary of Contents for Dolphin Solutions ALAVO

  • Page 1 ALAVO DOLPHIN ALAVO THE MODULAR BEHIND MIRROR WASHROOM SOLUTION O & M M A N U A L Last updated Oct 2020...
  • Page 2 Clean the Soap Tank Alavo Tap Unit Alavo Lighting Colour Control Alavo Light Sensor Control Alavo Light Sensor Board Inspection / Replacement / Temporary Repair / Over-Ride Alavo Cleaner’s Switch Alavo Fuse Checking / Resetting Alavo Control Screen Setting Alavo Mirrors...
  • Page 3 I M P O R TA N T N O T E Flush supply lines thoroughly before connecting Dolphin Alavo unit. Do not allow dirt, teflon tape or grease to enter TMV. C O N N E C T I O N...
  • Page 4 A L AV O T H E R M O S TAT I C M I X I N G VA LV E A P P L I C AT I O N The Dolphin Alavo TMV3 thermostatic mixing valve has been independently tested by WRc-NSF against the requirements of BS 7942:2000 and NHS D08 and certified as complying with the requirements of the TMV3 Scheme and is suitable for use in the designations shown in the table below.
  • Page 5 A L AV O T H E R M O S TAT I C M I X I N G VA LV E • Remove the plastic cap on top of the valve with the supplied Allen key or other suitable tool. •...
  • Page 6 A L AV O T H E R M O S TAT I C M I X I N G VA LV E I N - S E R V I C E T E S T I N G The purpose of in-service testing is to regularly monitor and record the performance of the thermostatic mixing valve.
  • Page 7 A L AV O T H E R M O S TAT I C M I X I N G VA LV E F R E Q U E N C Y O F I N - S E R V I C E T E S T I N G 6 to 8 weeks after commissioning carry out the test sequence detailed above.
  • Page 8 A L AV O T H E R M O S TAT I C M I X I N G VA LV E C L E A N I N G A N D S E R V I C I N G Most domestic water supplies contain calcium which will separate out when the water is heated in a system.
  • Page 9 A L AV O T H E R M O S TAT I C M I X I N G VA LV E S PA R E S Spare part order code Description A-1 854550 Blue TMV 3 Protective cap complete with screw A-2 854551 White TMV 2 Protective cap complete with screw B 854447...
  • Page 10 A L AV O WAT E R S E R V I C E VA LV E S A N D F I LT E R S D E F I N I T I O N Dolphin Alavo incorporates water service valves at the water inlets. They combine the following functions: •...
  • Page 11 A L AV O H A N D D RY E R U N I T T E C H N I C A L D ATA Item category Performance Operating voltage 220-240 Vac, 50/60 Hz, 0.84-1.0kW Air output temperature 55ºC (131ºF) - ambient tem 25ºC (77ºF) 101.7m 3 /h, (59.8 CFM) Air volume...
  • Page 12 A L AV O H A N D D RY E R U N I T C L E A N I N G A N D M A I N T E N A N C E Periodic cleaning of the unit is recommended to ensure optimum performance. •...
  • Page 13 A L AV O H A N D D RY E R U N I T R E M O V I N G A N D R E F I T T I N G A H A N D D RY E R The hand dryer in situ 1.
  • Page 14 A L AV O H A N D D RY E R U N I T T R O U B L E S H O O T I N G – D I A G N O S T I C S A N D R E M E D I E S C O R R E C T I V E A C T I O N S F O R C O R R E C T I V E A C T I O N S F O R I N I T I A L I N S TA L L AT I O N F A I L U R E S...
  • Page 15 A This is normally due to the solenoid which is a serviceable A Check that there is actually soap connected to the pump, part, (see section “Alavo Tap Unit” of the O & M manual). Or if so, make sure it is Dolphin Foaming Soap, any other soap it could be either the spring, or there could be something will not work correctly.
  • Page 16 A L AV O S O A P D I S P E N S E R S Y S T E M S O A P T Y P E It is critical to the functioning of the soap system on Alavo units that the correct soap is used. The wrong type invalidates the warranty.
  • Page 17 A L AV O S O A P D I S P E N S E R S Y S T E M S O A P TA N K S TA N D A L O N E S Y S T E M 2 0 1 2 – P R E S E N T F I L L / R E F I L L A N D B L E E D T H E S O A P S Y S T E M 1.
  • Page 18 R E F I L L T H E S O A P C A R T R I D G E S Y S T E M Open mirrors on front of Alavo To bleed the soap system, attach pouch (Cartridge) and let it drain through into reservoir.
  • Page 19 A L AV O S O A P D I S P E N S E R S Y S T E M R E M O V I N G A N D R E F I T T I N G A S O A P D I S P E N E R – 1 2 v & 6 v V E R S I O N S T H E 1 2 v V E R S I O N S O A P D I S P E N S E R The 12v soap dispenser in-situ 1.
  • Page 20 A L AV O S O A P D I S P E N S E R S Y S T E M T H E 6 v V E R S I O N S O A P D I S P E N S E R – G E A R B O X O N LY Remove the soap pump as per steps 1 to 4 above at the start of this section on page 18.
  • Page 21 A L AV O S O A P D I S P E N S E R S Y S T E M T H E 6 v V E R S I O N S O A P D I S P E N S E R – P U M P O N LY TTurn off soap valves at the tank/reservoir and at the vent pipe.

  • Page 22: C L E A N I N G T H E C O M P R E S S O R

    C L E A N I N G T H E C O M P R E S S O R ( F O A M D I S P E N S E R S ) Dolphin foam soap dispensers include mesh filter inside the compressor which should be regularly cleaned with warm water.
  • Page 23 C L E A N T H E S O A P TA N K Clean out the tank ever month by flushing warm water through the hoses and pump until clean water is released from the spout. (Not needed if you have the 2018 – present Soap Pouch System) 1.
  • Page 24 A L AV O TA P U N I T A D J U S T I N G T H E WAT E R S P R AY A N G L E Tap unit seen from beneath with flap Tap unit seen from above with flap open open Tap unit with spray at...
  • Page 25 A L AV O TA P U N I T C H A N G I N G T H E A E R AT O R 1. Locate the aerator 2. Use a 22mm spanner to 3. Remove finally with your undo the colour (anti- hands clockwise to undo)
  • Page 26 A L AV O TA P U N I T R E M O V E A TA P S O L E N O I D A N D C L E A N 1. Isolate the water supply 2.
  • Page 27 A L AV O TA P U N I T C H E C K / R E A L I G N S O L E N O I D I N T E R N A L PA R T S ( I F TA P D R I P P I N G / C O N T I N U O U S LY R U N N I N G A F T E R C L E A N ) Remove tap solenoid as steps 1 to 3 on page 26 4.
  • Page 28 A L AV O L I G H T I N G C O L O U R C O N T R O L A D J U S T I N G T H E P E R I M E T E R ( H A L O / S I D E ) A N D I C O N L I G H T I N G C O L O U R 1.
  • Page 29 A L AV O L I G H T S E N S O R C O N T R O L A D J U S T I N G L I G H T S E N S O R C O N T R O L 1.
  • Page 30 A L AV O L I G H T S E N S O R B O A R D I N S P E C T I O N / R E P L AC E M E N T / T E M P O R A RY R E PA I R / OV E R - R I D E A broken light sensor board will typically result in the lighting working for a few moments after being powered on before it then shuts down.
  • Page 31 A L AV O C L E A N E R ’ S S W I T C H O P E R AT I N G C L E A N E R ’ S S W I T C H ( W H I C H D I S A B L E S TA P A N D S O A P O P E R AT I O N W H E N O N ) 1.
  • Page 32 A L AV O F U S E C H E C K I N G / R E S E T T I N G C H E C K I N G / R E S E T T I N G T H E F U S E S ( C U R R E N T M O D E L ) 1.
  • Page 33 A L AV O C O N T R O L S C R E E N S E T T I N G A D J U S T I N G T H E C O N T R O L S C R E E N C O N T R A S T ( C U R R E N T M O D E L ) 1.
  • Page 34 • The use of safely gloves and appropriate personal protection is stronly recommended during all operation of handling and setting of the glass. • Dolphin Alavo mirrors have a plastic safety film applied to the painted side of the mirror, the film has a triple function: 1.
  • Page 35 I M P O R TA N T Never use ammonia-based products or abrasive products (such as anti-limescale products) to clean Dolphin Alavo mirrors. The Dolphin Alavo mirrors are new generation Ecological mirrors which stand out for: • Copper free metal coating • Low level lead paints •...
  • Page 36 A L AV O G A S S T R U T S R E M O V E A N D R E F I T A G A S S T R U T 1. Open and securely prop Use a strong and secure prop 2.
  • Page 37 A L AV O G A S S T R U T A D J U S T M E N T A D J U S T P R E S S U R E I N G A S S T R U T To adjust gas pressure, slacken grub screw in short bursts, and maintain equal pressure between strut pairs.

  • Page 38: Commissioning Checklist

    C O M M I S S I O N I N G C H E C K L I S T Tools & Materials Function checks ■ ■ Pipe cutters Ensure basin area completely clear ■ ■ Range of screwdrivers Turn on power and water ■...
  • Page 39 Dolphin Solutions Ltd Southpoint, Compass Park, Junction Road Bodiam, TN32 5BS, United Kingdom T +44 (0)1424 202 224 info@dolphinsolutions.co.uk dolphinsolutions.co.uk © Dolphin Solutions Ltd R E V I S E D O C T O B E R 2 0 2 0...
