PCIe x8 Gen2 Cable Adapter
Model: OSS-PCIe-HIB25-x8
Installation Guide
SKU: OSS-PCIe-HIB25-X8
www.onestopsystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OSS-PCIe-HIB25-x8 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OSS OSS-PCIe-HIB25-x8

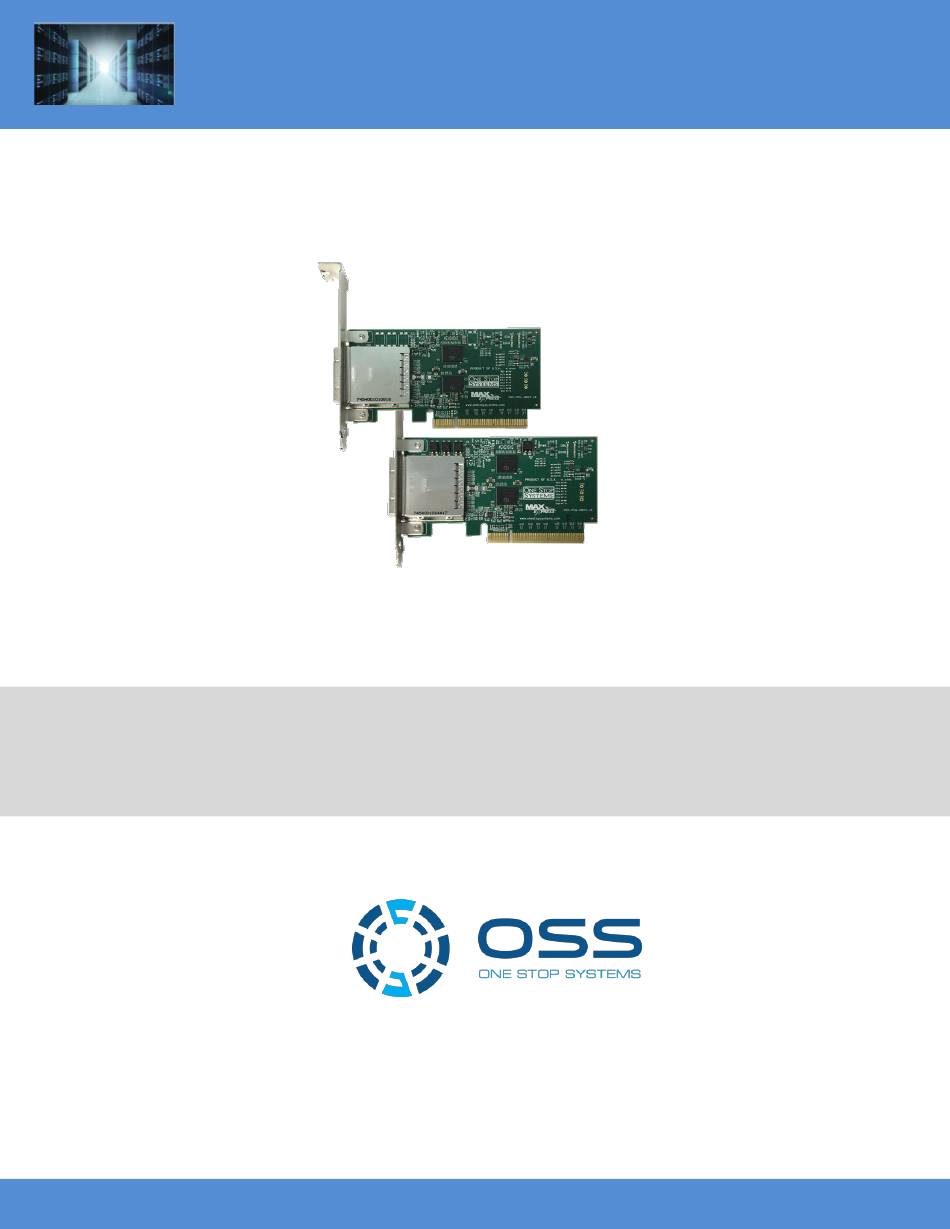

  • Page 1 PCIe x8 Gen2 Cable Adapter Model: OSS-PCIe-HIB25-x8 Installation Guide SKU: OSS-PCIe-HIB25-X8 www.onestopsystems.com...
  • Page 2: Table Of Contents

    Install PCIe card Install link cable Connect ATX Power Supply Power ON the system Verify Hardware LED Definition LED Configuration Explanation Software Installation How to Get More Help 5.1 Contacting Technical Support 5.2 Returning Merchandise 5.3 Online Support Resources OSS-PCIe-HIB25x8| 2...
  • Page 3 One Stop Systems OSS-PCIe-HIB25x8| 3...
  • Page 4: Preface

    Disclaimer: We have attempted to identify most situations that may pose a danger, warning, or caution condition in this manual. However, the company does not claim to have covered all situations that might require the use of a Caution, Warning, or Danger indicator. OSS-PCIe-HIB25x8| 4...
  • Page 5: Safety Instructions

    Also, before connecting a cable, make sure both connectors are correctly oriented and aligned. CAUTION Do not attempt to service the system yourself except as explained in this manual. Follow installation instructions closely. OSS-PCIe-HIB25x8| 5...
  • Page 6 Handle all sensitive components at an ESD workstation. If possible, use anti-static floor pads and workbench pads.  Handle components and boards with care. Do not touch the components or contacts on a board. Hold a board by its edges or by its metal mounting bracket. OSS-PCIe-HIB25x8| 6...
  • Page 7: Introduction

    The PCIe x8 adapter extends the PCIe bus at 40Gb/s with extremely low latency because there is no conversion software Part numbers:  OSS-PCIE-HIB25-x8-T (Target)  OSS-PCIE-HIB25-x8-H (Host) Specifications...
  • Page 8: Overview

     Power is provided by the PCI-e card slot.  Power required by internal components of OSS-PCIe-HIB-25-x16 is estimated to be 4 watts when both ports are fully linked and operating in Gen2 mode.  Cable power is to be provided per PCIe cable specification. When an active cable (powered transceiver) is used, additional power is required from the PCI-e card slot.
  • Page 9: Re-Driver

    The HIB card interface includes the following features One x8 PCIe bus routed to PCIe Card Edge One x8 PCIe bus routed to the PCIe Cable Connector PCIe Clock route from Card Edge to Cable Connector via a Clock Buffer. Block Diagram & Signal Direction OSS-PCIe-HIB25x8| 9...
  • Page 10: Hib Card Operating Mode

    Upstream slot. Mode 2: Host Mode. In this mode, the card is not populated with thermocouples. The card is set to operate in Host mode and it is plugged into computer’s motherboard PCIe slot. OSS-PCIe-HIB25x8| 10...
  • Page 11: Connector Pin Outs

    PWR (3.3V) PETn0 PERn0 CREFCLK- PWR (3.3V) PWR (3.3V) PETp1 PERp1 RSVD PWR RTN PETn1 PERn1 RSVD PWR RTN SB_RTN PWR RTN PETp2 PERp2 CPSRNT$# CWAKE# PETn2 PERn2 CPWRON CPERST# PETp3 PERp3 PETp4 PETp4 PETn3 PERn3 PETn4 PERp4 OSS-PCIe-HIB25x8| 11...
  • Page 12: Pci Express X16 Connector Pin Out (Wired As X8)

    PETp3 PETn3 PERp3 RSVD PERn3 PRSNT2# RSVD End of the x4 connector PETp4 RSVD PETn4 PERp4 PERn4 PETp5 PETn5 PERp5 PERn5 PETp6 PETn6 PERp6 PERn6 PETp7 PETn7 PERp7 PRSNT2# PERn7 End of x8 connector NC = NOT CONNECTED OSS-PCIe-HIB25x8| 12...
  • Page 13: Hardware Requirements

    NOTE: The HIB25-x8 card works in pair (one as host card and other as target card) One x8 iPass cable OSS Expansion chassis with Gen2 backplane, or OSS expansion backplane and power supply. 2.1.1 HIB25-x8 card (Host and Target) 2.1.2 PCIe Slot &...
  • Page 14: Gen3 Expansion Chassis / Backplane

    You need an expansion chassis with Gen2 or Gen3 backplane . Photos below are example of Gen3 OSS backplanes and an expansion unit. The HIB card has custom pin out that unique to OSS and only OSS Target adapters will work in the upstream slot of our expansion backplanes.
  • Page 15: Installation Procedures

    Power down the host computer first before installing the host card. Do not install the host card while the computer is ON.  Install the HIB25-X8 host card into the available PCIe slot in the computer motherboard. Use a x8 or x16 Gen2/Gen3 PCIe slot.  Secure the card OSS-PCIe-HIB25x8| 15...
  • Page 16: Install Hib Target Card

    Do not plug in the target card while expansion unit or the expansion backplane is ON as this can damage the board. Turn OFF the unit first before installing the card. The HIB Target card will only work in the OSS backplane designated “Upstream” slot. It will not function in the downstream slot or the end-point slot of the backplane.
  • Page 17: Install Pcie Card

    One Stop Systems Install PCIe card Plug-in your 3rd party PCIe card in the expansion backplane. Use the downstream slot of the OSS backplane. See photos below. Install link cable  Connect the PCIe iPass x8 cable between the host and target cards. Plug in the cable to the host card.
  • Page 18: Connect Atx Power Supply

    If you are using an expansion chassis, the power supply is already part of the unit. You can skip this step. If you are using an expansion backplane, plug-in the ATX power supply cable into the 24pin ATX power connector on the OSS board Connect power to the PSU and turn the switch to ON position.
  • Page 19: Verify Hardware

    PCIe device interfacing with this card. If the board is operating on x4 mode, x4 CBL and EDGE are illuminated. This is indicative of a x4 slot PCIe slot (electrical) where the host or target card is installed. OSS-PCIe-HIB25x8| 19...
  • Page 20: Led Configuration Explanation

    Root is sending valid signals on either lane 0 only (x1) or lanes 0-3 (x4) to the endpoint, but endpoint is sending valid signals on lanes 0-7 (x8) (root and endpoint can’t agree on lane width) Valid signal levels from both root and endpoint on lanes 0-7 (x8) OSS-PCIe-HIB25x8| 20...
  • Page 21: Software Installation

    One Stop Systems Software Installation No software or driver is required for the Host Adapter card. OSS-PCIe-HIB25x8| 21...
  • Page 22: How To Get More Help

    If you need technical support, product assistance or have a technical inquiry we encourage you to submit it on-line using our Technical Support Form. If you need to send a unit for repair or diagnostic evaluation, fill out our RMA (Return Material Authorization) online request form.  https://www.onestopsystems.com/support OSS-PCIe-HIB25x8| 22...
  • Page 23 One Stop Systems OSS-PCIe-HIB25x8| 23...
