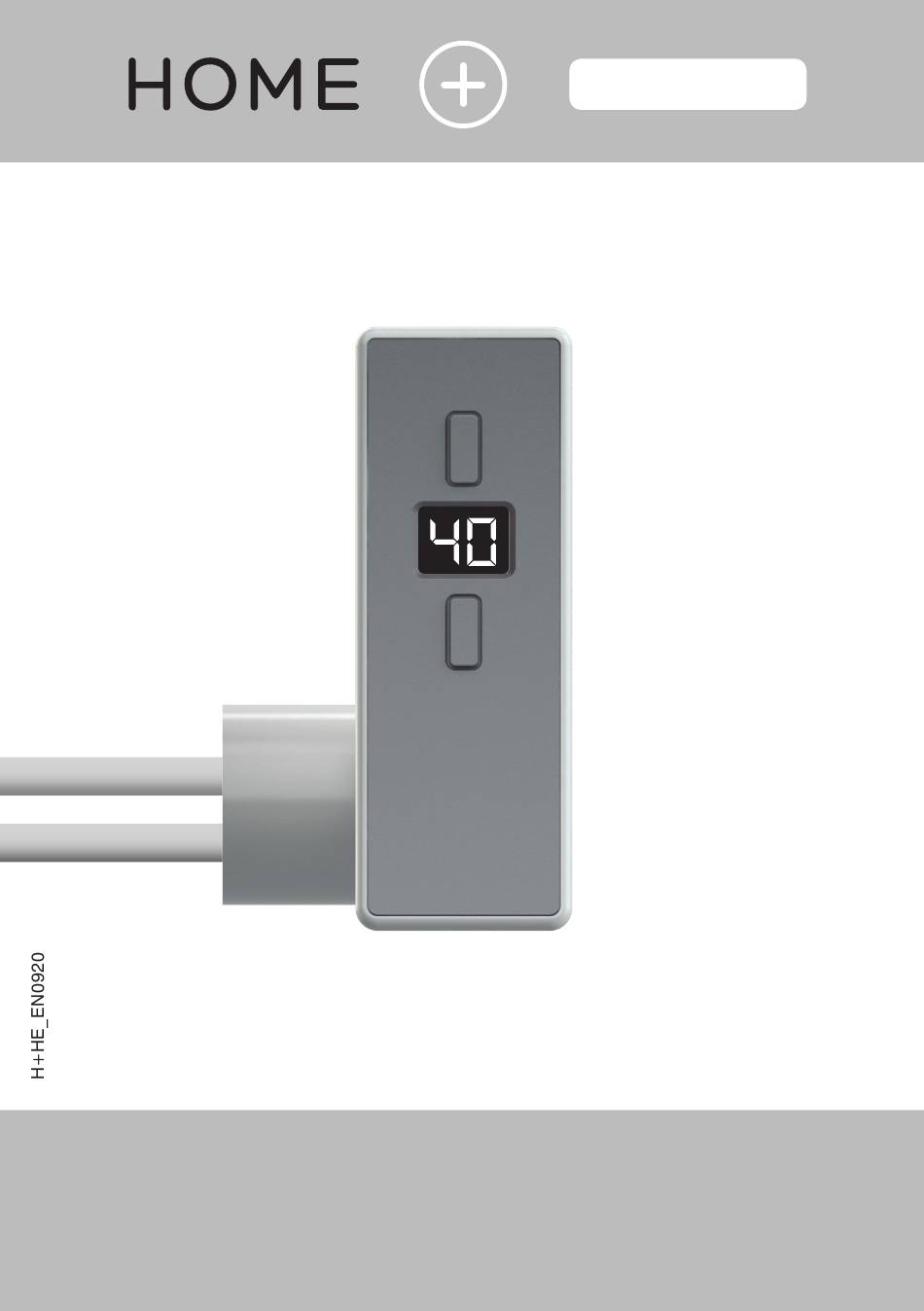

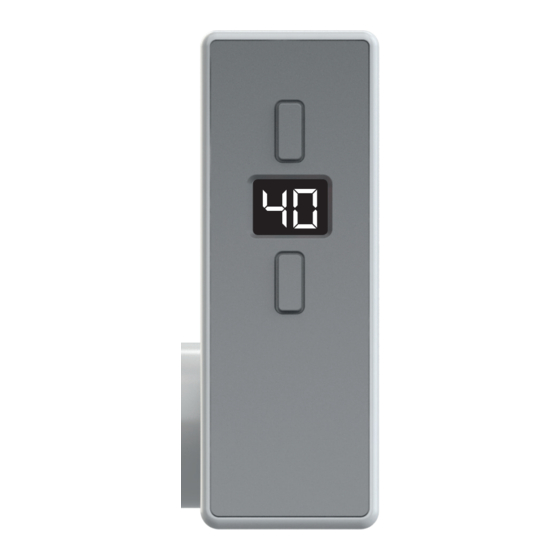

- Page 1 ECONOMY HEATER HEATER CONTROLLER CONTROLLER – – HORIZONTAL HORIZONTAL VERTICAL INSTALLATION MANUAL&USER MANUAL USER MANUAL HEATER CONTROLLER H+h E HEATER CONTROLLER H+h...
- Page 2 2. Any visible damage to the heating element or controller due to improper use. Damaging of manufacturer’s seals makes the guarantee null and void. In the event that Heatpol are unable to repair or replace this product we reserve the right to refund the purchase price as an alternative.
- Page 3 H +h USER MANUAL: Heating element + Heater controller (horizontal) H+h INSTRUKCJA OBSŁUGI: Jak używać sterownik grzałki ECONOMY VIDEO instrukcji dostępne na www.homeplus-system.com Side connection Kit content Position change Uruchamianie grzałki Movable elements 180˚ Przytrzymaj wciśnięty górny przycisk przez 3 sekundy 10˚C - 65˚C* Wybór indywidualnej Wyłączanie grzałki...
- Page 4 CAUTION! Do not disconnect heater The locking screw must be protected controller when the system is powered. against accidental unscrewing eg. by 230 V applying a drop of lacquer or acrylic adhesive. 15 cm ON/OFF Switch Electric radiators CH system 3-5 cm Before you apply the heating element, spread the Loctite glue (included in the set) on the middle of the thread...
- Page 5 H +h USER MANUAL: Heating element + Heater controller (vertical) H+h INSTRUKCJA OBSŁUGI: Jak używać sterownik grzałki ECONOMY VIDEO instrukcji dostępne na www.homeplus-system.com Mounting in radiators Uruchamianie grzałki Przytrzymaj wciśnięty górny przycisk przez 3 sekundy 10˚C - 65˚C* Wybór indywidualnej Wyłączanie grzałki temperatury –...
- Page 6 CAUTION! Do not disconnect heater controller when the system 230 V is powered. 90° Recommendation: Plug and turn front of the heater controller to vertical position ON/OFF Switch Electric radiators 3-5 cm CH system Finishing Hard wire connection 230 V For the heater perma- Live nently connected (hard...
- Page 7 USER MANUAL: How to use heater controller H + h E ECONOMY 40˚C Standard heating temperature 10˚C - 65˚C Select temperature – TURBO mode activation Max heating temperature Selection for 1/2/3 hours – TURBO mode activation – Off selection max heating temperature Hold button for 3 seconds TIMER mode activation 1.
- Page 8 Mników 322, 32-084 Morawica, Polska Tel/fax: +48 12 656 44 91 www.heatpol.pl www.homeplus-system.com...
