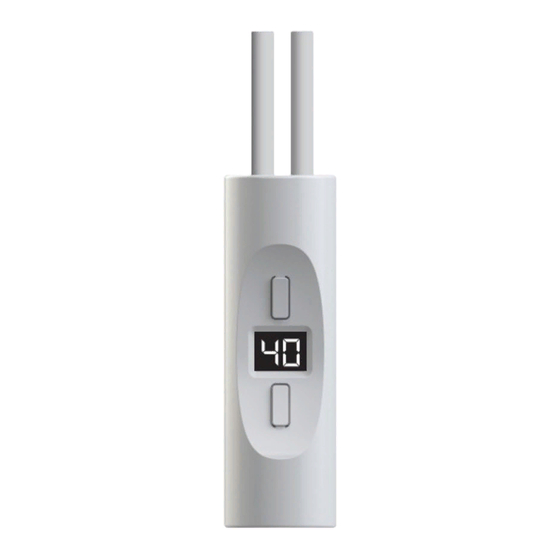

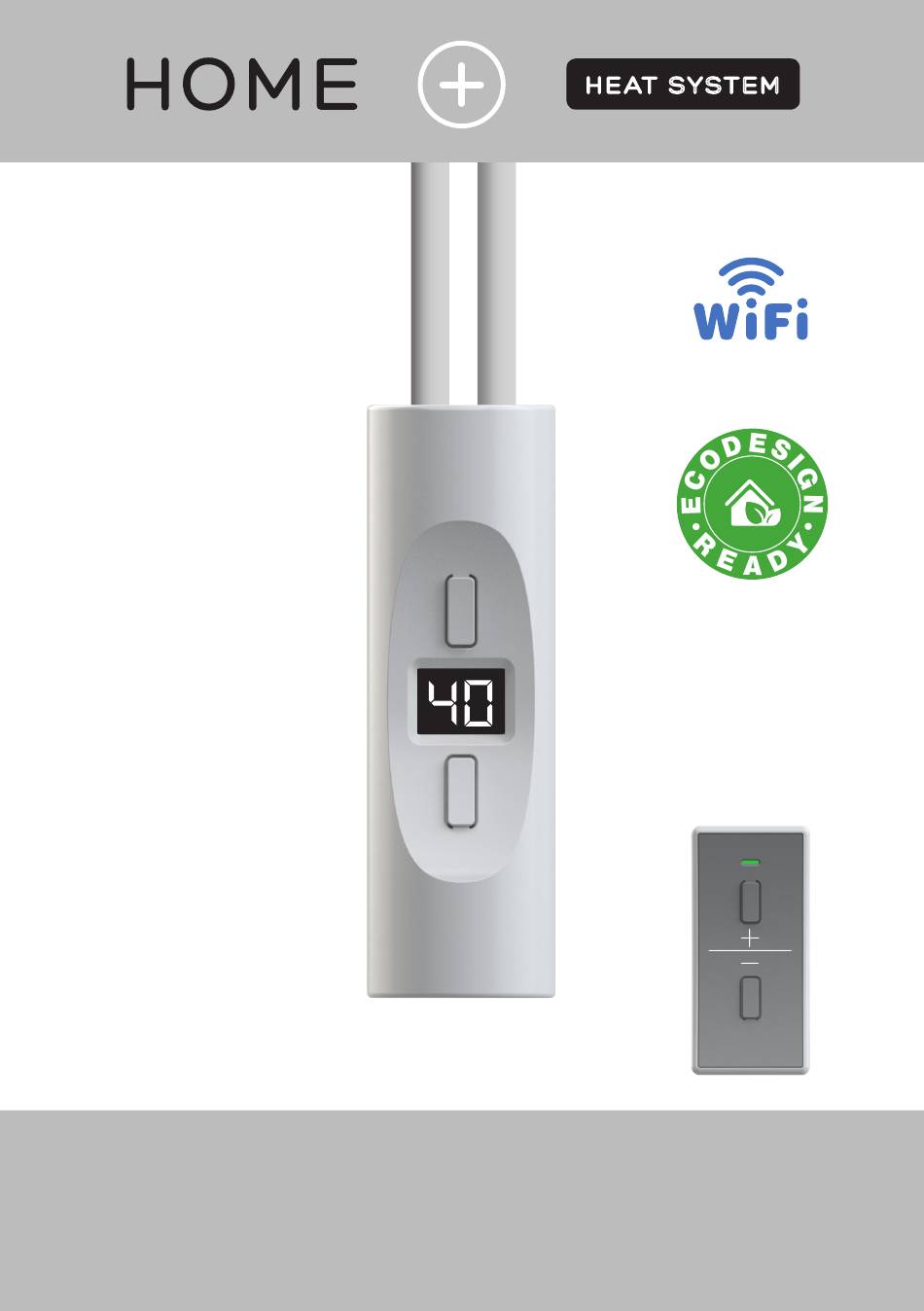

- Page 1 H E AT SYS T EM HEATER CONTROLLER – VERTICAL TEMPERATURE SENSOR/ REMOTE CONTROLLER GUIDE & USER MANUAL HEATER CONTROLLER H+ WiFi | TEMPERATURE SENSOR...
- Page 2 2. Any visible damage to the heating element or controller due to improper use. Damaging of manufacturer’s seals makes the guarantee null and void. In the event that Heatpol are unable to repair or replace this product we reserve the right to refund the purchase price as an alternative.
- Page 3 USER MANUAL: Heating element + Heater controller (vertical) H+ Kit content Heating element System option: O/D shaped Allen color cover Heater Wall mount controller plastic cover Temperature sensor Preparing the temperature sensor To activate temperature sensor for the first time, press the pairing button Back LED (Activity) Pairing button...
- Page 4 USER MANUAL: Heating element + Heater controller (vertical) H+ Mounting in radiators >60cm >60cm Installation options: Installation options: central heating system electric radiator T-piece installed with central connection T-piece connection one-pipe valve locshield valve with locshield valve connection Installation details Do not play in yet 230 V Line up dot at front...
- Page 5 Electric radiators leave space 3-5 cm Central heating system Finishing Element (D) must be cut the correct lenght Cut to length Connection with a coiled Hard wire connection cable and a plug For the heater perma- 230 V nently connected (hard Live wire) there must be Earth...
-
Page 6: Download The App
USER MANUAL: WiFi configuration Heater controller When the heater is connected to the mains properly, the red light Heater controller display will flash on the controller display The heater is ready for WiFi configuration Go to supla.org and create a free supla account and follow the attached instructions. QR CODE Wygenerowano na www.qr-online.pl DOWNLOAD THE APP... - Page 7 USER MANUAL: ERRORS ATTENTION: Signalling improper installation or improper use: Lack of water (or wrong choice of heat- ing element to the heater) Damaged heating element (or no power cuircit) No communication to the remote controller if paired DO NOT DISCONNECT! controller from heating element, when connected to the power supply ATTENTION: The temperature sensor can be used as a remote controller instead of your Smartphone...
- Page 8 USER MANUAL: NEW TEMPERATURE SENSOR/REMOTE CONTROLLER PAIRING When you buy a new heating element with a remote controller it will already be paired. You do not need to pair it again. In case you purchase a new temperature sensor/remote controller – you need to pai it: Prepare remote controller + allen key for use During countdown...
