Matweld 01200 Service Manual

Spring anchor applicator
Hide thumbs

Advertisement

Quick Links

Download this manual

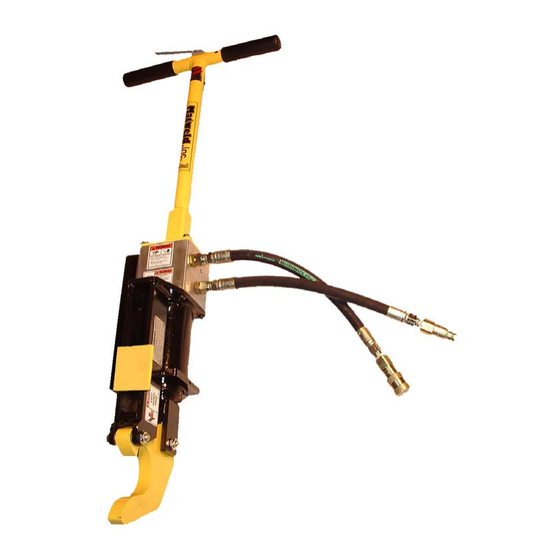

01200 SPRING ANCHOR APPLICATOR
The Matweld Spring Anchor Applicator is a
lightweight and labor saving tool for the
maintenance of way crew. A safe and quick
method of installing spring anchor clips,
which does not require "brute force" for clip
installation. The tool utilizes a pivoting foot
design with seven tons of force available to
install the toughest clips. Operators will
appreciate the clear view during installation.
FLOW
5 gpm(19 lpm)
or
10 gpm(38 lpm)
ACCESSORIES:
01225 - HEAD WORN RAIL KIT
MATWELD, INC.
Matweld reserves the right to change parts, features, or specifications without notice.
PRESSURE
2000 psi
15"(381mm) x 43"(1092mm)
(140 BAR)
PHONE:(270) 444-0085
DIMENSIONS
FAX:(270) 443-6180
632 South 3rd Street
P.O. Box 2816 • Paducah, KY 42002
Phone: 270-444-0085
Fax: 270-443-6180
Website: www.matweld.com
Email: customerservice@matweld.com
WEIGHT
45 lbs.(20kg)

Advertisement

loading
Need help?

Need help?

Do you have a question about the 01200 and is the answer not in the manual?

Questions and answers

Related Manuals for Matweld 01200

Summary of Contents for Matweld 01200

  • Page 1 5 gpm(19 lpm) 2000 psi 15”(381mm) x 43”(1092mm) 45 lbs.(20kg) (140 BAR) 10 gpm(38 lpm) ACCESSORIES: 01225 - HEAD WORN RAIL KIT MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice.
  • Page 2 MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...

  • Page 3: General Safety Precautions

    THE OPERATION, SAFETY OR MAINTENANCE OF THIS TOOL. FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN PERSONAL INJURY OR EQUIPMENT DAMAGE. MATWELD HAS NO CONTROL OVER TOOL USE OR OPERATION ONCE IT LEAVES THE MATWELD PLANT. MATWELD HAS NO CONTROL OVER OPERATOR OR MAINTAINER SELEC- TION.
  • Page 4 ABRASIONS. FAILURE TO DO SO MAY RESULT IN EQUIPMENT DAMAGE AND / OR PER- SONAL INJURY OR DEATH. • CLEAN UP ANY OIL OR FLUID SPILLS IMMEDIATELY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...
  • Page 5 HAVE SUPERVISOR ADD ADDITIONAL PRECAUTIONS RELATING TO THE SPECIFIC WORK AREA AND LOCAL SAFETY REGULATIONS BELOW: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...

  • Page 6: Safety Precautions

    PRESSURE: 2000 PSI (140 BAR) BACK PRESSURE: MAX 250 PS 10. NEVER LEAN ON TOOL OR USE IT FOR PRYING. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...
  • Page 7 HOLD THE TOOL AWAY FROM YOUR BODY AND KEEP ARMS RELAXED AND FREE TO FLEX, SHOULD MINOR JERKING OF THE TOOL OCCUR DURING OPERATION. RUB PLATE RAIL CLIP FOOT SPRING ANCHOR MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...
  • Page 8 ON HEAD WORN RAIL, IT IS POSSIBLE FOR THE TOOL TO RUN OUT OF CYLINDER STROKE BEFORE THE SPRING ANCHOR SNAPS INTO PLACE. FOR INSTANCES WHERE THE TOOL IS BEING USED ON HEAD WORN RAIL, MATWELD OFFERS KIT #01225 WHICH INCLUDES TWO RUB BLOCKS OF DIFFERENT THICKNESS AND AN EXTRA MOUNTING BOLT AND FLAT WASHER.
  • Page 9 EACH APPLICATION IS DIFFERENT, IF THERE ARE ANY QUESTIONS CONCERNING THE RIGHT CHOICE FOR YOUR PARTICULAR APPLICATION CALL MATWELD FOR ASSISTANCE. 5. HAVE TOOL INSPECTED, AT LEAST ANNUALLY, BY A MATWELD OR MATWELD QUALIFIED SERVICE REPRESENTATIVE TO DETERMINE IF TOOL IS IN NEED OF SAFETY CHANGES OR WORN PART REPLACEMENT.
  • Page 10 IMPORTANT TO DIRECT THE FLOW INTO THE TOOL CORRECTLY. REVERSING THE HOSES TO TEST MAY RESULT IN BLOWN SEALS, DAMAGE TO THE TOOL, AND PERSONAL INJURY. MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...

  • Page 11: General Notes

    01200 SPRING ANCHOR APPLICATOR GENERAL NOTES: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...
  • Page 12 01200 SPRING ANCHOR APPLICATOR MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...

  • Page 13: Parts List

    01211 HANDLE GRIP 01210 TUBE GUARD A1021 5/16-18UNC x 3/4” LG. GR.5 ZP ACCESSORIES: 01225 - HEAD WORN RAIL KIT MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...
  • Page 14 01200 SPRING ANCHOR APPLICATOR DECAL LEGEND: MATWELD, INC. PHONE:(270) 444-0085 FAX:(270) 443-6180 Matweld reserves the right to change parts, features, or specifications without notice. 01/00 REV.02/06...
  • Page 15 AND NO OBLIGATION OR LIABILITY SHALL ARISE OR GO OUT OF THE RENDERING OF TECH- NICAL ADVICE OR SERVICE BY MATWELD OR ITS AGENTS. THE FOREGOING MAY NOT BE CHANGED EXCEPT BY WRITTEN AGREEMENT SIGNED BY AN AUTHORIZED OFFICER OF MATWELD, THE REMEDIES SET FORTH HEREIN ARE EXCLUSIVE.
  • Page 16 Name _____________________________________________________ Company___________________________________________________ Serial # of your Matweld tool___________________________________ ( Upon receiving your Matweld tool, make sure to list serial number above so that a good record is kept for order information.) MATWELD HYDRAULIC TOOL LIST All Matweld Hydraulic Tools operate at...
