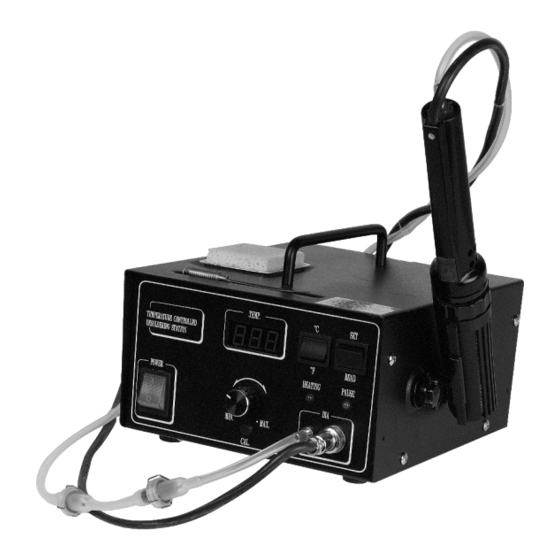

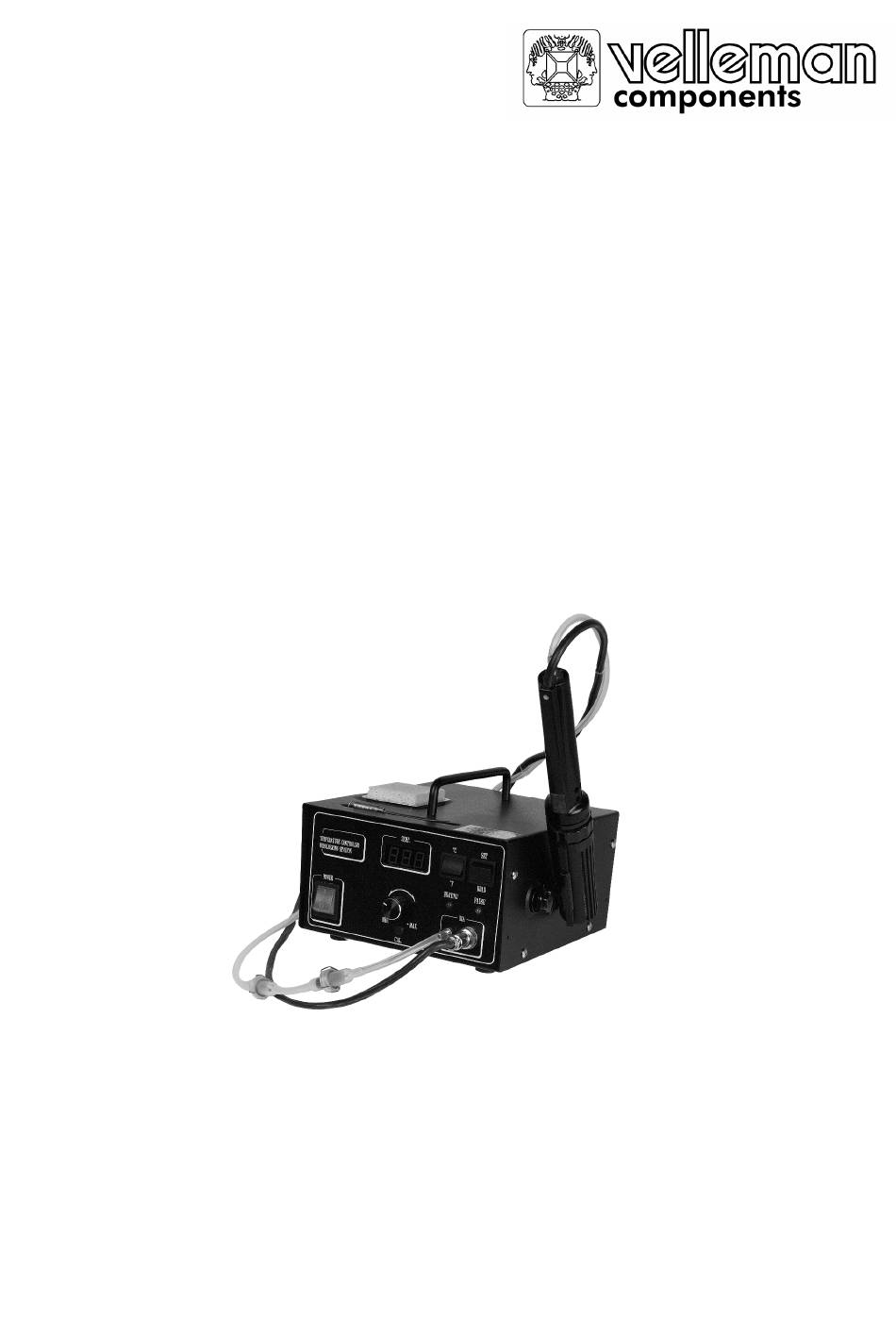

- Page 1 VT-DESOL2 DESOLDERING STATION DESOLDEERSTATION STATION DE DESSOUDAGE ENTLÖTSTATION USER MANUAL GEBRUIKERSHANDLEIDING MANUEL D'UTILISATION GEBRAUCHSANLEITUNG...
- Page 2 It is not surprising, therefore, that the VT-DESOL2 has been one of the electronics industry’s favourite desoldering tools for the last 15 years.
- Page 3 250°C (482°F). The unit is ready for use when it reaches the preset temperature : the pilot light will extinguish at this time. NOTE : The energy-saving feature will automatically engage if the desoldering station remains inactive for more than 15 minutes (indicated by the green "PAUSE" indicator light). The VT-DESOL2...
- Page 4 - Do not use flux containing chloride or acid. Use only resinous fluxes. - If an oxide film has formed, you should remove it by buffing carefully with a 600-800 grit emery cloth or by using isopropyl alcohol and consequently applying a new protective layer of solder. VT-DESOL2...
- Page 5 6. Remove the stainless tube and shake loose the molten solder. The tip should now be unclogged (fig. 7). Put the tip back in place and screw down the barrel nut assembly. Do not screw it down too tightly ! VT-DESOL2...
- Page 6 Do this frequently to keep the station in proper working order. 4. Remove the cooling strip with a pair of pliers (fig. 11 & 12). 5. Clean the cooling strip and the glass collector with a wire brush (included). FIG. 8 FIG. 9 FIG. 10 VT-DESOL2...
- Page 7 5. Remove the old filter and replace it with a new one (fig. 15 & 16). FIG. 13 FIG. 14 FIG. 15 FIG. 16 b. IN-LINE FILTERS 1. Unscrew the in-line filters and pull the two pieces apart (fig. 17 & 18). FIG. 17 VT-DESOL2...
- Page 8 2. Replace the fillings of both filters as shown in fig. 18. FIG. 18 fillings TO STATION TO IRON BITDEST2 Note : Use a desoldering tip with a Ø of 1.2mm (BITDEST2). VT-DESOL2...
