Summary of Contents for Mesa WS-600A

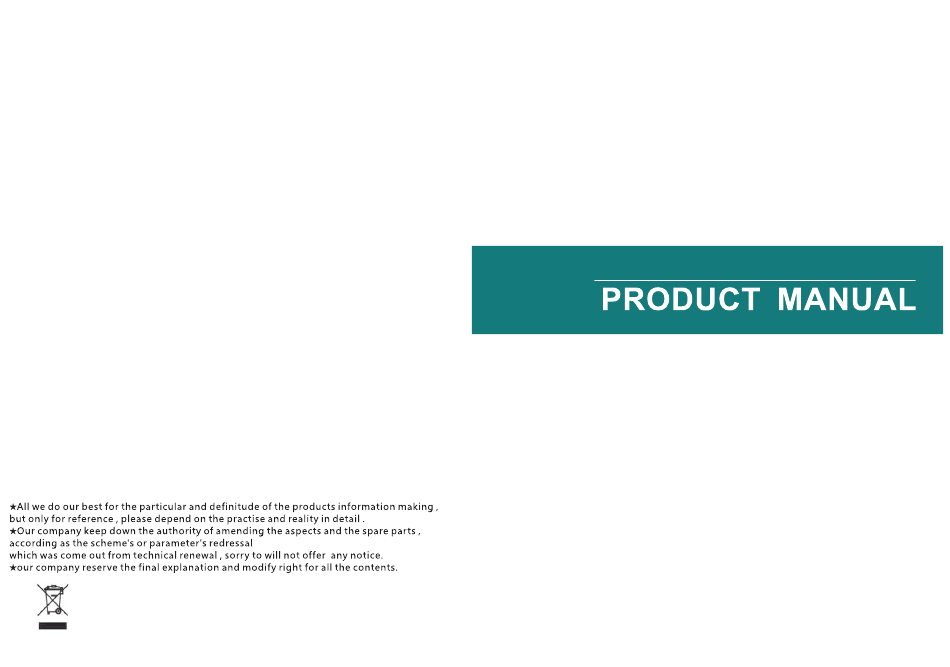

- Page 1 WS-600A Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
- Page 2 Dear Guest, Thank you very much for purchasing our sanitary ware. To STEP6 enable you to use this product safely and effectively, please read this installation and operation manual carefully before use. CAUTIONS Please ensure that the product installed reliable electric leakage protection device, the power plug contains earth line, and make sure it is reliable earth line.

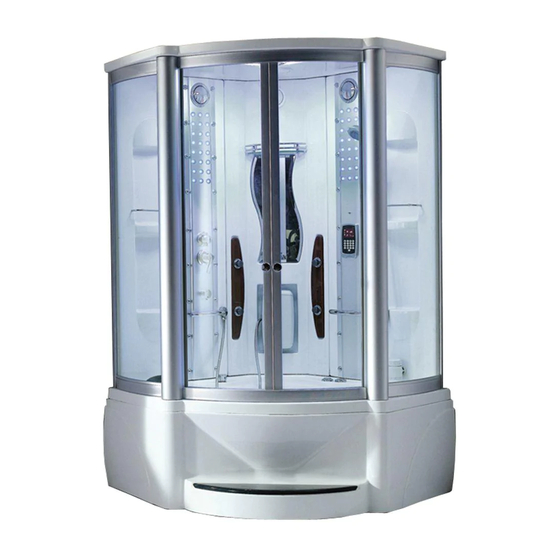

- Page 3 CONSTRUCTION SKETCH STEP3 STEP4 1.rooflamp 8.cold/hot water switch 15.room body 16.temperature sensor 2.top shower 9.function shift switch 17.controp panel STEP5 3.speak 10.waist-shaped board 18.noozle 4.decorated lamp 11.ozone 19.noozle 5.moveable shower 12.roof 20.foot massage 6.shower moveable rail 13.exhaust fan 21.steam out 7.function shift switch 14.mirror 22.bottom bathtub...
- Page 4 Drawing of water connection 1、water pump switch ” “ ”from the picture,please make the connection according to the serial number v1,v2,etc. As the“ 2、air regulator Top shower 3、bottonlamp 4、water suction 5、water jet Switch 6、draining switch valve 7、waterfall Nozzle Movable shower head Cold/hot 8、drainage water switch...
