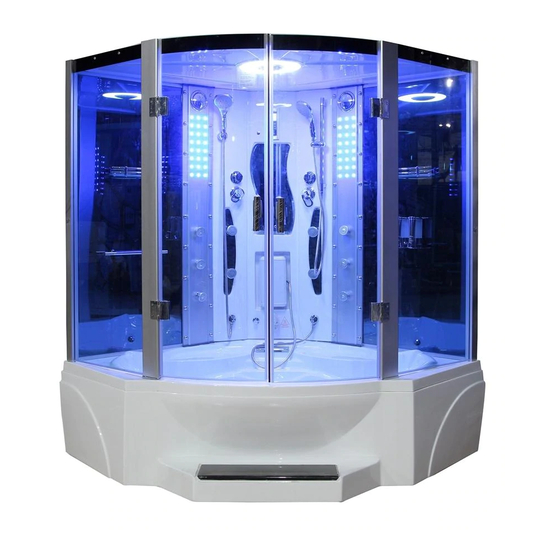

Mesa WS-608P Install Manual

Mesa WS-608P Install Manual

Steam bathroom

Advertisement

Quick Links

12、bath-massage
(1)Press the water switch, turn the select shift, pour "
(2)Water level should be 10-20mm higher than the sprayer.
(3)Pouring enough water, press" atmosphere ",the engine works, and begins to
spouting. During massage, turn on the " air conditioning ".
(4)Press the " atmosphere ",when stop.
(5)After showering, turn on the "draining switch "to drain water.
13、sole-massage
Set the sole-massage to a suitable place, and turn the select shift to sole-
massage, then press the water switch. Test the water temperature and begin
massage. Press the water switch again and stop.
14、turn off the tap
After using, turn the select shift to the original place. Press the water switch.
at last power off.
ATTENTION
1. Please install and operate this product according to this manual.
2.
Please fix reliable earth line and electric leakage protection device.
3.
Please install general switch for power supply and water supply.
4.
People with hypertension or drunk are not allowed to have sauna steam bath.
5.
Children should have sauna steam bath under adult's instruction.
6.
Please don't pour corrosive liquid into this sauna steam room.
8.
Pay attention to the steam sprayer and water tank drainage, they are in high
temperature while working.
9.
please be ware of the step and never put finger into the door gap in case of
accident.
10. Never knock the room with hard and heavy materials, in case of damage.
11. never smoke in the room in case of fire.
12. clean up the room after finish taking shower, in case of slippery surface.
13. when there is plastic strip is worn-out, please replace it as soon as possible in
case of water leaking.
14. clean the bottom bathtub with toothpaste if there is some dirt.
15. please keep the bottom clean, in case of some waste stuck into the drainage.
16. never hang heavy things up the handle.
17. We don't take the responsibility for those damage caused by illegal operations.
18. Please dispose of this product according to native law when it is out of use.
19. Please contact our dealer for help if you have any problems.
Do not dispose this product as unsorted municipal
waste. Collection of such waste separately for special
treatment is necessary.
water
".
Install manual
Steam bathroom
MODEL :
WS-608P

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS-608P and is the answer not in the manual?

Questions and answers

Steven
February 10, 2025

How do you do the electrical set up to make the pump, steam generator and heater? Your set up with three wires with eyelets make no sense

1 comments:
Mr. Anderson
February 11, 2025

The electrical setup for the Mesa WS-608P steam shower requires:

- One 220V connection with a 20-amp dual pole breaker and a GFCI breaker for the steam shower.
- One 220V connection with a 20-amp dual pole breaker and a GFCI breaker for the heat pump.

Ensure all electrical connections comply with local codes and are installed by a qualified electrician.

This answer is automatically generated

Summary of Contents for Mesa WS-608P

  • Page 1 13、sole-massage Set the sole-massage to a suitable place, and turn the select shift to sole- MODEL : WS-608P massage, then press the water switch. Test the water temperature and begin massage. Press the water switch again and stop. 14、turn off the tap After using, turn the select shift to the original place.
  • Page 2 INSTALL GUIDE 4、ozone disinfection 1.Check if all the parts complete. 2.Set all the parts to right places, and make balance. Press , and begin to disinfect. Press again and stop. If disinfecting 3.Set the parts according to the diagram. for 10min, it will stop automatically. 4.After step3,power on and test.
  • Page 3 CONSTRUCTION SKETCH 1、glass door 13、roof lamp 2、exhaust fan 14、moveable shower 3、ozone 15、decorated lamp 4、moveable shower 16、handdrail 5、speaker 17、temperature sensor 6、decorated lamp 18、soap box 7、water switch/mixer 19、foot massage 8、cold/hot water switch 20、berb box 9、towel shelf 21、bottom bathtub 10、nozzle 22、control panel 25、waist -shaped board 11、body 23、water switch/mixer 26、waist -shaped board...
  • Page 4 SIZE:1600X1600X2250mm 1.When install the glass door onto the bottom tub or the roof, must first fix the plastic strip on the aluminum column of the glass door. If the length of the plastic strip is inappropriate, may voluntarily cut and press the plastic strip according to the aluminum column section shape, then locks the screw.
