VC-A422U
VC-H822U

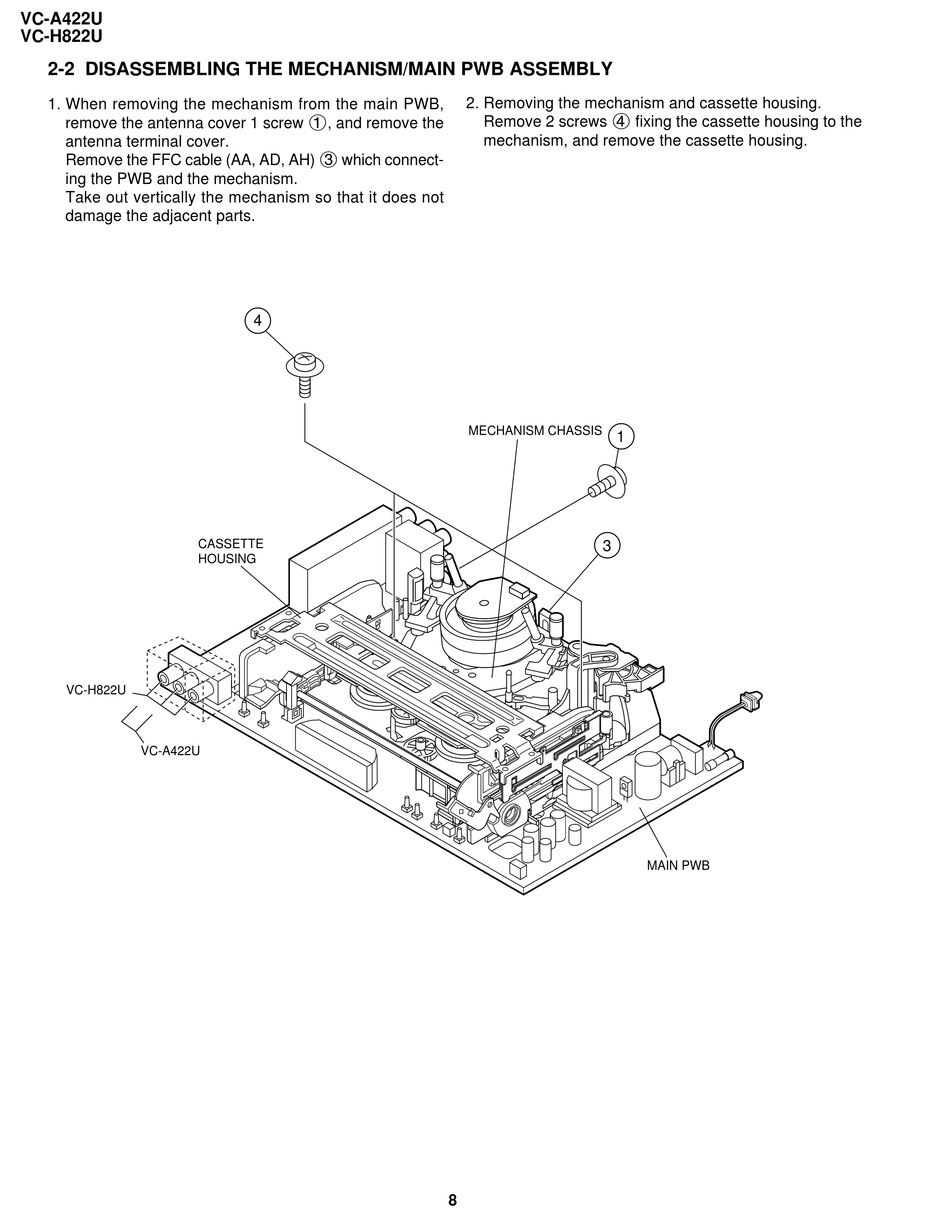

2-2 DISASSEMBLING THE MECHANISM/MAIN PWB ASSEMBLY
1. When removing the mechanism from the main PWB,
remove the antenna cover 1 screw 1, and remove the
antenna terminal cover.
Remove the FFC cable (AA, AD, AH) 3 which connect-
ing the PWB and the mechanism.
Take out vertically the mechanism so that it does not
damage the adjacent parts.
VC-H822U
VC-A422U
4
CASSETTE
HOUSING
2. Removing the mechanism and cassette housing.
Remove 2 screws 4 fixing the cassette housing to the
mechanism, and remove the cassette housing.
MECHANISM CHASSIS
1
3
8
MAIN PWB
