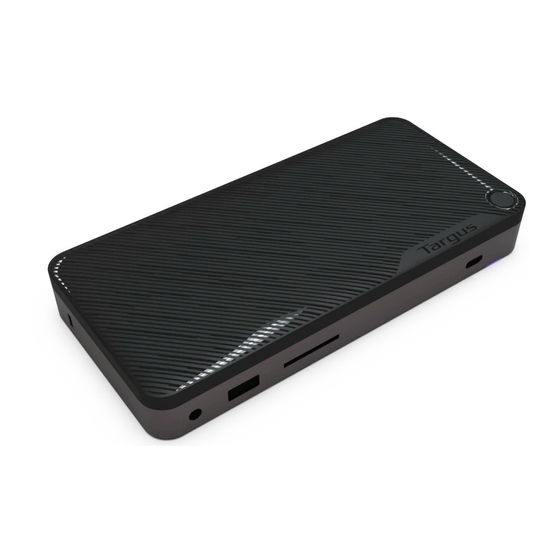

Targus DOCK221 Quick Start Manual

THUNDERBOLT 3
8K VIDEO
DOCKING STATION
WITH POWER
DELIVERY
QUICK START GUIDE
410-3917-001B / DOCK221USZ
Contents
• Thunderbolt 3 8K Video Docking Station
with Power Delivery
• 1 x Thunderbolt 3 0.8m 40Gbps Cable
• 1 x 150W AC Power Adapter
Workstation Setup
1. Connect all peripheral devices to the docking station
2. Connect the Targus Docking Station to your host device.
+
Specifications
• 2 x DisplayPort 1.4 supporting up to single 8K video or dual 4K video
• 1 x Thunderbolt 3 Upstream Facing Port supporting Power Delivery 3.0
up to 85W
• 1 x Thunderbolt 3 Downstream Facing Port
• 5 x USB-A 3.2 Gen 1 Downstream Facing Ports (port marked with
supports BC 1.2 and iOS device charging at 2.4A max)
• 1 x USB-C 3.2 Gen 2 Downstream Facing Port (data only)
• 1 x SD 4.0 Card Reader
• 1 x RJ45 Gigabit Ethernet
• 1 x 3.5mm Audio Port
• 1 x K Security Lock Slot
Docking Station Diagram
Lock Slot Audio Headset SD 4.0
Connector
USB-A 3.2 Gen 1
(with battery charging support)
Monitor & Resolution
Thunderbolt Host Laptop
Host Graphic
Single Video DP 1.2 HBR2
(choose any one output)
DP 1.4 HBR3
DP 1.2 HBR2
Dual Video *
(via MST, not MST daisy chain)
DP 1.4 HBR3
DP 1.2 HBR2
Dual Video #
(via TBT3 dual stream video)
DP 1.4 HBR3
Non-Thunderbolt Host Laptop (MFDP Mode)
Host Graphic
Single Video DP 1.2 HBR2
(choose any one output)
DP 1.4 HBR3
DP 1.2 HBR2
Dual Video *
(via MST)
DP 1.4 HBR3
* Requires host graphic adapter supporting Multi-Stream Transport (MST) Mode; Mac laptops do not support MST Mode
# Requires host Thunderbolt 3 ports support dual stream video
*# Performance varies depending on host graphics and monitor connection capabilities
Features and specifications are subject to change without
notice. Microsoft and Windows are registered trademarks of
Microsoft Corporation in the United States and/or other
countries. All trademarks and registered trademarks are the
property of their respective owners. ©2020 Targus, 1211 North
Miller Street, Anaheim, CA 92806
Power Button
USB-C 3.2 Gen 2 Power In TBT3
Devices
TBT3 Upstream Power & DP++ 1.4
Charge Laptop
DP++ DP++ TBT3 Daisy Chain Port
5120 x 3200 p60 5120 x 3200 p60
7680 x 4320 p30 7680 x 4320 p30
3840 x 2160 p30 3840 x 2160 p30
3840 x 2160 p60 3840 x 2160 p60
3840 x 2160 p60 (choose either one output)
4096 x 2160 p60 (choose either one output)
DP++ DP++ TBT3 Daisy Chain Port
3840 x 2160 p30 3840 x 2160 p30
3840 x 2160 p60 3840 x 2160 p60
1920 x 1080 p60 1920 x 1080 p60
3840 x 2160 p30 3840 x 2160 p30
Gigabit
Ethernet
USB-A Port 3.2
Gen 1
5120 x 3200 p60
7680 x 4320 p30
n/a
n/a
3840 x 2160 p60
4096 x 2160 p60
n/a
n/a
n/a
n/a
