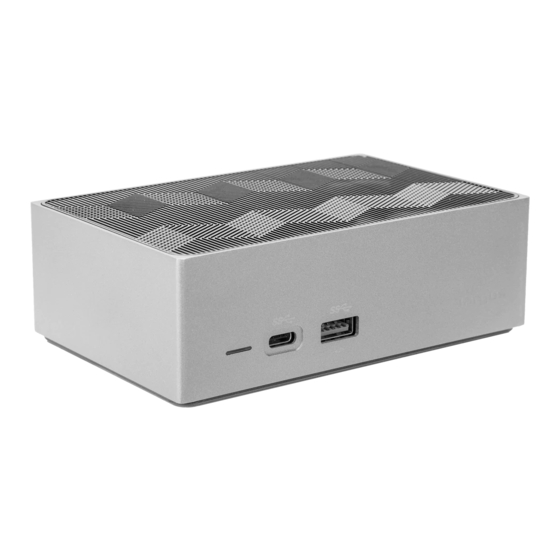

Targus DOCK220USZ Quick Start Manual

USB-C
THUNDERBOLT 3
DOCK WITH PD
85W

QUICK START GUIDE

410-3692-001A / DOCK220USZ
Contents
• USB-C Thunderbolt 3 Dock with PD 85W
• AC Power Adapter
• 0.5m Thunderbolt 3 Cable, 40Gbps
Workstation Setup
1. Connect all peripheral devices to the docking station
2. Connect the Targus Universal Docking Station to your host device.
Specifications
• Dual display mode supporting,
(i) DP++ (ii) Thunderbolt 3 daisy chain port / USB-C by DP alternative mode
• Single display mode supporting any of DP++ or Thunderbolt 3 daisy chain
port / USB-C by DP alternative mode
• 1 x Thunderbolt 3 upstream port (Supports Power Delivery 3.0 Charging,
85W max)
• 1 x Thunderbolt 3 daisy chain port / USB-C (DP alt. mode with USB 3.1 Gen
2 @ 10Gbps for data)
• 2 x USB 3.0 downstream ports (port marked with
iOS device charging at 1.5A max)
• 1 x USB-C downstream port
• Gigabit Ethernet
• Headphone and Microphone (3.5mm connectors)
• Security lock slot
• Thunderbolt 3 cable
• 180W AC power adapter
• Mounting holes for Targus Dock Mounting Kit
+
supports BC 1.2 and
Features and specifications are subject to change without notice. Microsoft
and Windows are registered trademarks of Microsoft Corporation in the
United States and/or other countries. All trademarks and registered
trademarks are the property of their respective owners. ©2017 Targus, 1211
North Miller Street, Anaheim, CA 92806
Docking Station Diagram
Thunderbolt 3 Thunderbolt 3
upstream to daisy chain / USB-C
laptop ( DP alt. mode with
Lock Slot (with power) USB 3.1 Gen 2)
Audio Out Audio In
Thunderbolt Link (purple) / USB-C
Power (white) Indicator (downstream)
System Requirements
Hardware
• Thunderbolt 3 enabled laptop
Operating System (any of the following)
• Windows ® 10 (32/64-bit)
• Mac OS X v10.11
®
Visit www.targus.com for a list of the latest compatible operating systems
DP++ Power In
USB 3.0 Gigabit Ethernet
USB 3.0
(supports charging)
