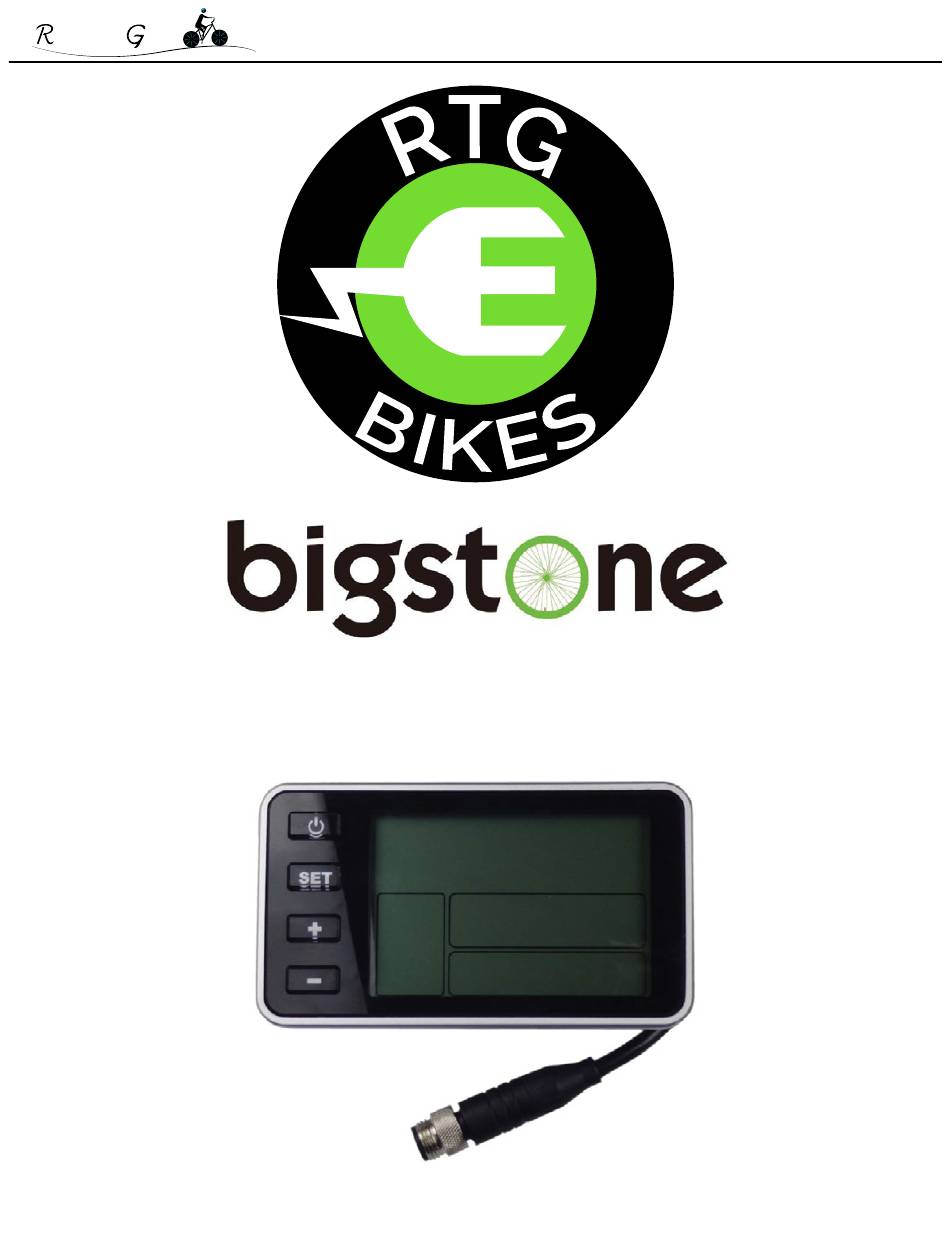

- Page 1 C500B Instructions...
-
Page 2: Table Of Contents
ide the lide www.RideTheGlide.ca Contents Introduction 3 Note about Warranty 3 The Display 3 The Buttons 4 The Display 4 Normal View 5 Operation 5 On/Off 5 Speed Display 6 Riding Mode 6 Current 6 Pedal Assist Level 7 Odometer, Trip, Time 7 Battery Indicator 8 6km/h Walk Assist 8 Settings 9 SET 0: Riding Mode 9 SET 1: Trip Reset 9 SET 2: Max Speed Limit ... -
Page 3: Introduction

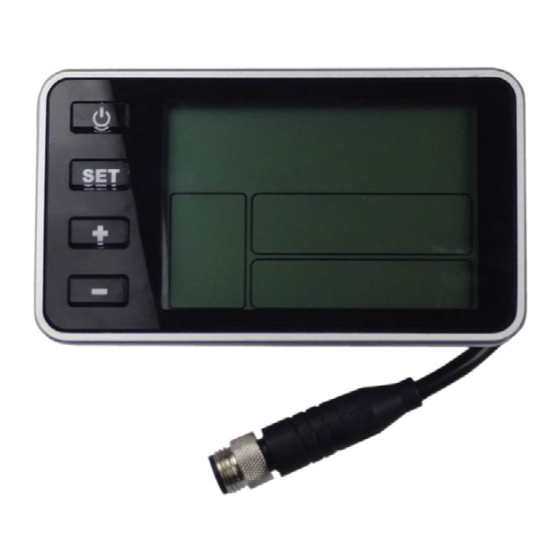

The Display The C500B display is made of black ABS plastic and the bracket is a nylon plastic. The normal operating temperature range is -20 to 60°C Dimensions in mm... -
Page 4: The Buttons
The Buttons The C500B has four buttons including ON/OFF, SET, UP and DOWN. The Display The C500B has wide range of functions and indicators. The diagram below shows the full contents of the display... -
Page 5: Normal View
ide the lide www.RideTheGlide.ca Normal View With the display on the default display is the speed, odometer (trip and time), pedal assist level (default to zero or one depending on model), mode indicator (eco, normal or power), current level and battery level. -
Page 6: Speed Display
ide the lide www.RideTheGlide.ca Speed Display The speed displays in the top right corner, the default reading is in km/h but can be changed to mph in the settings. Riding Mode There are three riding modes available, eco, normal and power, which regulate the amount of available power. -
Page 7: Pedal Assist Level
ide the lide www.RideTheGlide.ca Pedal Assist Level This determines the speed and amount of power when pedaling. Default is 0 or 1 depending on model and can be changed by clicking the up or down buttons. 0 pedal assist is no pedal assist, but power is still available with the throttle. -
Page 8: Battery Indicator
ide the lide www.RideTheGlide.ca Battery Indicator The battery frame has five segments, each representing 20% battery capacity. When the battery is severely depleted the outside edge of the battery frame will flash, indicating it needs to be charged immediately. Back light/Light Indicator With the display powered on click the on/off button to turn on the front and rear lights as well as back light the display. -
Page 9: Settings
ide the lide www.RideTheGlide.ca Settings Hold the set button for 2 seconds to enter the settings interface. The lights with flash on and the screen will become back light. Use the set button to cycle between settings and use the up and down buttons to select the desired parameter. -
Page 10: Usb Charging
ide the lide www.RideTheGlide.ca USB Charging There is a USB charge port below the display that allows you to charge a mobile phone or other device. In order to turn on USB charging press and hold the set and up buttons for 2 seconds. The USB icon, as shown below, will turn on.
