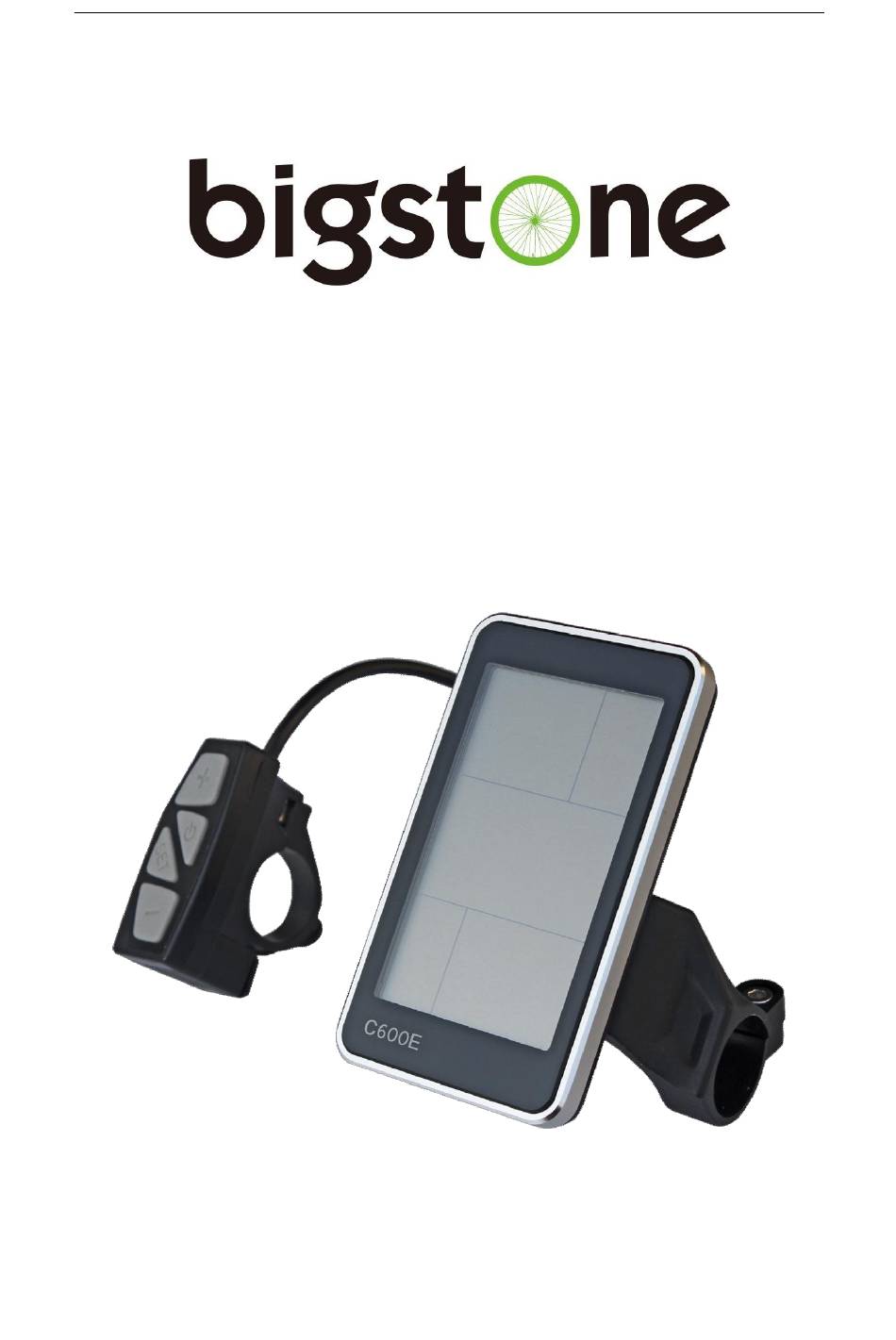

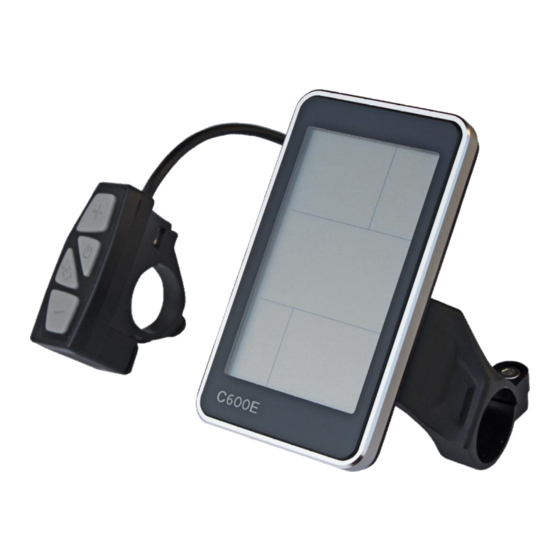

- Page 1 C600E-USB-LCD Instructions...
- Page 2 Button Definition C600E-USB has four buttons, which include ON/OFF , SET, UP＋ and DOWN－.
- Page 3 Function Summary C600E-USB provides a wide range of functions and indicators to fit the users’ needs. These are listed below. 1. ON/OFF 2. Current display 3. Speed display 4. KM/H & MPH 5. Backlight indicator 6. 6KM/H selection 7. PAS selection 8 PAS level selection.
-
Page 4: Normal Operation
Full View Area Normal Operation 1. ON/OFF Hold ON/OFF to start the display. Hold ON/OFF again to turn on the screen’s backlight. To turn off display, press ON/OFF for 2 seconds. ※ The display will go to sleep when the speed is 0 km/h for 5 minutes. - Page 5 2. Current Display Represents the discharging current of the controller. Each mark is 2A, six segments is >=12A. 4. Speed Display The speed is as below, and user can select KM/H or MPH in SET4. 5. Backlight Indicator With the power on, click the ON/OFF to turn on the display backlight.
- Page 6 the SET to cycle through each of the settings. Press UP or DOWN to select the desired parameter. Hold the SET for 3 seconds to save and exit. 、SET1: Reset Trip1 10.1.1 Click the DOWN and reset trip 1, TRIP1 icon will flash and the mileage will be cleared.
- Page 7 Error Code Meanings normal Current error or MOSFET damaged Throttle Error Phase position error Hall Sensor(s) error Brake cutoff error Under voltage Motor stalling Controller communication receiving error Display communication receiving error...
