Summary of Contents for OS 22112

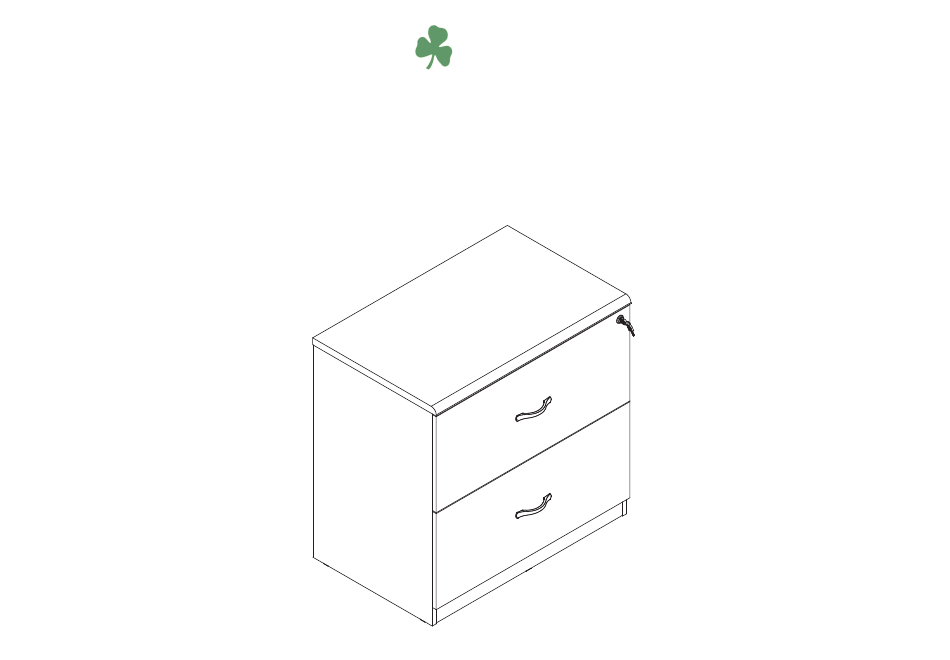

  • Page 1 & furniture 22112...
  • Page 2 Customer Service Department. For efficient and speedy service please indicate the model number and code letter of part(s) needed. If you have any damaged or missing parts please contact us at: OS Home & Office Furniture 1011a Gulf Lamar, MO 64759...
  • Page 3 hardware (U) x 10 (P) x 2 (Q) x 4 (R) x 10 (S) x 10 (T) x 8 small cam bolt drawer pull 3/4”round-head screw big cam bolt big cam lock 1 1/4”x 1/4”dia wood dowel with ridges (V) x 10 (W) x 24 (X) x 4 (Y) x 42...
  • Page 4 ITEM DESCRIPTION QUANTITY top panel left panel right panel bottom panel bottom panel bottom rail back rail back panel lower drawer front upper drawer front drawer left drawer back drawer right drawer bottom drawer support rail drawer pull 3/4”round-head screw big cam bolt big cam lock 1 1/4”x 1/4”...
  • Page 5 how to use the cam lock system 180º...
  • Page 6 step 1. Top Edge Front Edge (R) x 3 (Y) x 8 (Ii) x 1 big cam bolt 1/2 ” flat-head screw lock bar 1.Install big cam bolts (R) into right panel C. 2.Install lock bar (Ii) using screws (Y).
  • Page 7 step 2. Diagram B (X) x 2 (Y) x 8 three ball bearing slide 1/2 ” flat-head screw 1.Separate the drawer slide by pressing lock lever as shown in diagram A. 2.Attach drawer slide to panel C using the holes noted in diagram B. Diagram A...
  • Page 8 step 3. Diagram B (X) x 2 (R) x 3 (Y) x 8 (Cc) x 2 (Dd) x 1 three ball bearing slide big cam bolt 1/2 ” flat-head screw 1/2 ”round-head screw anti-tip hardware 1.Attach big cam bolts (R) to left panel (B). 2.Attach drawer slides to panel (B) using the holes noted in diagram B.
  • Page 9 step 4. (Z) glue (W) x 2 1 1/4”x 3/8”dia wood dowel with ridges 1.Attach parts E and F using dowels & glue.
  • Page 10 step 5. (W) x 2 (Z) glue 1 1/4”x 3/8”dia wood dowel with ridges 1.Attach parts D and F using dowels & glue.
  • Page 11 step 6. (S) x 6 (W) x 14 (Z) glue big cam lock 1 1/4”x 3/8”dia wood dowel with ridges Bottom Edge Back Edge 1.Glue dowels into both ends of parts E,F,G and D. 2.Place big cam locks (S) into both ends of parts D,E and G. 3.Carefully assemble as shown,tightening cam locks as you go.
  • Page 12 step 7. (W) x 6 (Z) glue (R) x 4 (S) x 4 1 1/4”x 3/8”dia wood big cam bolt big cam lock dowel with ridges 1.Slide back panel into grooves. 2.Insert big cam bolts (R) and glue dowels (W) into underside of top panel A. 3.Insert big cam locks (S) and a little glue into the top edge of left panel (B) and right panel (C).
  • Page 13 step 8. Diagram C Groove (X) x 4 (Y) x 16 (Hh) three ball bearing slide 1/2”flat-head screw lock plate Groove 1.Attach drawer slides to drawer left (K) and drawer right (M) using screws (Y) using the holes noted in diagram C. 2.Attach lock plate (Hh) to drawer right (M) as shown.
  • Page 14 step 9. Groove Groove (Bb) x 8 1 3/8 ” flat-head screw Groove 1.Attach parts K and M to drawer back (L) using screws (Bb).
  • Page 15 step 10. (Ff) x 2 (Bb) x 2 (Ee) x 4 1 3/8 ” flat-head screw 9/16 ” round-head screw plastic anti-tip hardware 1. Attach drawer support rail (O) to drawer back (L) using screw (Bb). 2. Slide drawer bottom (N) into grooves. 3.
  • Page 16 step 11. (Ll) x 2 (Ee) x 10 (T) x 8 (U) x 10 (Z) glue 9/16 ” round-head screw plastic file hanger 1 1/4”x 1/4”dia wood small cam bolt dowel with ridges 1.Install glue and small dowels (T) to drawer fronts (I) and (J). 2.Attach plastic file hanger (Ll) to drawer front.
  • Page 17 step 12. Top drawer (P) x 2 (Q) x 4 (V) x 10 Bottom drawer drawer pull round-head screw small cam lock 1. Attach drawer pull (P) to front with screw (Q). 2. Install small cam lock (U) into drawer sides. 3.
  • Page 18 step 13. (Jj) x 4 (Kk) x 2 (Y) x 2 (Gg) x 1 1/2 ” flat-head screw lock plastic file hanger plastic file hanger Diagram D 1. Remove washer from lock (Gg) and attach with screws (Y) per diagram D. 2.
  • Page 19 step 14. (Aa) x 4 plastic file hanger 1. Install plastic file hanger (Mm) as shown.
  • Page 20 step 15. Diagram E 1. Swing bottom tab of anti tip hardware (Dd) to the front as shown in diagram E. 2. Slide the bottom drawer into the corresponding slides on the cabinet.
  • Page 21 step 16. Diagram F 1. Swing the tab of anti tip hardware (Dd) to the front as shown in diagram F. 2. Slide the top drawer into the corresponding slides on the cabinet.
