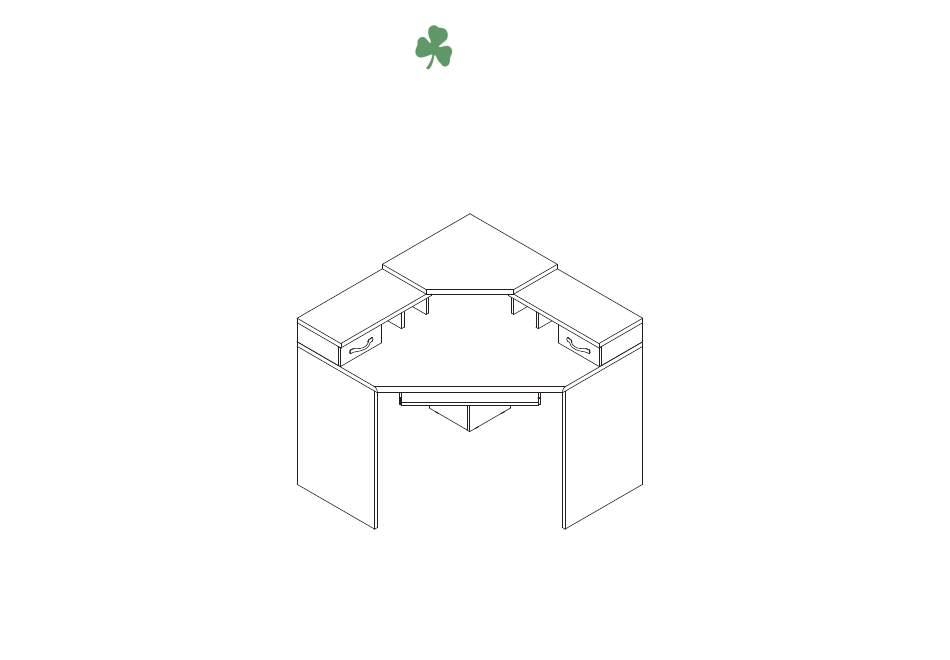

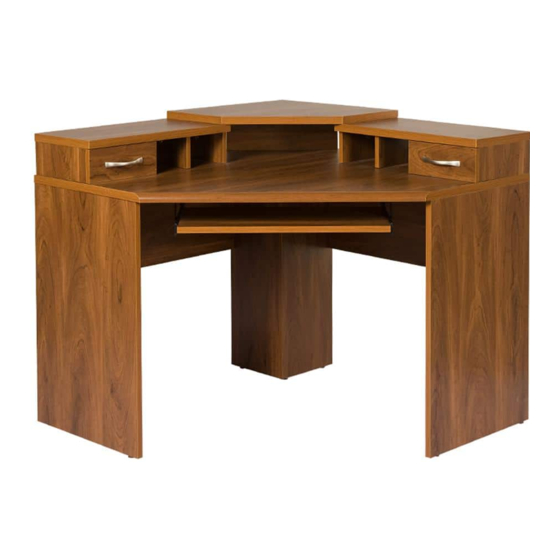

- Page 1 & furniture 22110 Stop !! If you are planning to combine this item with either one or two of model 22111 drawer extension units, set aside these instructions and use the instructions provided with model 22111.
- Page 2 Customer Service Department. For efficient and speedy service please indicate the model number and code letter of part(s) needed. If you have any damaged or missing parts please contact us at: OS Home & Office Furniture 1011a Gulf Lamar, MO 64759...
- Page 3 hardware (W) x 2 (X) x 4 (Y) x 37 (Z) x 37 (Aa) x 48 (Bb) x 4 small cam bolt drawer pull 3/4 ” round-head screw big cam bolt big cam lock 1 1/4 ”x 3/8” dia wood dowel with ridges (Cc) x 4 (Dd) x 8...
- Page 4 ITEM DESCRIPTION QUANTITY big top shelf left upright right upright T x2 back panel U x2 left partition right partition V x2 key board S x2 monitor platform R x2 small back support rail small left top shelf small right top shelf small left upright small right upright back panel...
- Page 5 how to use the cam lock system 180º...
- Page 6 step 1. (li) glue (Y) x 4 (Z) x 4 (Aa) x 4 (Kk) x 4 (Jj) x 7 big cam bolt big cam lock 1 1/4 ”x 3/8” dia wood plastic cap pvc cap dowel with ridges 1.Attach left upright B to back panel D as shown. 2.Attach left partition E to back panel D as shown.
- Page 7 step 2. (Jj) x 7 (Y) x 4 (Z) x 4 (Aa) x 4 (li) glue (Kk) x 4 big cam lock 1 1/4 ”x 3/8” dia wood pvc cap big cam bolt plastic cap dowel with ridges 1.Attach right upright C to back panel D as shown. 2.Attach right partition F to back panel D as shown.
- Page 8 step 3. (Y) x 3 (Z) x 3 (Aa) x 2 (li) glue (Kk) x 3 big cam lock 1 1/4 ”x 3/8” dia wood plastic cap big cam bolt dowel with ridges 1.Attach big cam bolts Y to panel F as shown. 2.Insert big cam locks Z and dowels Aa to panel E as shown.
- Page 9 step 4. (Ff) x 1 (Gg) x 1 (Nn) x 4 (Oo) x 4 left hanger glide right hanger glide metal plate 1/4 ” round-head screw 1.Attach metal plate (Nn) to the left and right hanger glides using screws (Oo).
- Page 10 step 5. (Ee) x 4 5/8 ” round-head screw 1.Attach keyboard shelf G to the right and left hanger glides as shown using screws Ee.
- Page 11 step 6. (Y) x 12 (Ee) x 8 big cam bolt 5/8”round-head screw 1.Install big cam bolts Y to underside of big top shelf A as shown. 2.Attach keyboard assembly to underside of big top shelf A as shown.
- Page 12 step 7. (Z) x 12 (Aa) x 10 (Kk) x 12 (li) glue big cam lock 1 1/4 ”x 3/8” dia wood plastic cap dowel with ridges 1.Install big cam locks (Z) and glue dowels （Aa) into parts B,D,E,F,D,and C. 2.With a helper, carefully place big top shelf (A) onto base of unit.
- Page 13 step 8. (Z) x 4 (Y) x 4 (Dd) x 4 (li) glue big cam bolt big cam lock 1 1/4 ”x 1/4” dia wood dowel with ridges 1. Attach left back rail (P) to small left upright (L) and small right upright (M) with hardware as shown. 2.
- Page 14 step 9. (Aa) x 4 (li) glue 1 1/4 ”x 3/8” dia wood dowel with ridges 1. Glue divider panels (O) to left back rail (P) with dowels (Aa). 2. Glue divider panels (O) to right back rail (Q) with dowels (Aa).
- Page 15 step 10. (li) glue (Y) x 8 (Z) x 8 (Aa) x 12 big cam bolt big cam lock 1 1/4 ”x 3/8” dia wood dowel with ridges 1. Install big cam bolts (Y) to the underside of small left top shelf (J) and small top shelf (K). 2.
- Page 16 step 11. (li) glue (Aa) x 8 1 1/4 ”x 3/8” dia wood dowel with ridges 1.Place dowels (Aa) into holes on big top shelf (A) - these holes are for location only.The glue is optional. 2. Place assemblies (J) and (K) on unit as shown.
- Page 17 step 12. (Y) x 2 (Z) x 2 (Kk) x 2 big cam bolt big cam lock 1.Attach parts (I) to platform (H) using cam bolts and cam locks. 2.Tighten cam locks.
- Page 18 step 13. (Aa) x 4 (li) glue 1 1/4 ”x 3/8” dia wood dowel with ridges 1.Using dowels and glue attach part H to desk.
- Page 19 step 14. (Dd) x 4 (Hh) x 8 (Cc) x 4 (li) glue (W) x 2 (X) x 4 (Bb) x 4 1 1/4 ”x 1/4” dia wood small cam lock 1 3/8 ” flat-head screw drawer pull 3/4 ” round-head small cam bolt dowel with ridges screw...
- Page 20 step 15. (Mm) x 8 sponge cushion 1. Place sponge cushions on the underside of drawer sides.
