KUDOS TITAN 808 Instruction Manual

TITAN 808 INSTRUCTION MANUAL
Thank you for choosing Kudos
Please read through these instructions before setting up and using
your new Titan 808 loudspeakers.

REGISTER YOUR PRODUCT

Register your new Kudos loudspeakers to activate your five-year extended warranty*
and to be kept informed of the latest news and events from Kudos.
*Kudos Warranty is available globally, is transferrable from owner-to-owner and includes ex-demonstration
products. Please visit kudosaudio.com/register-your-product for further details.

ASSEMBLY

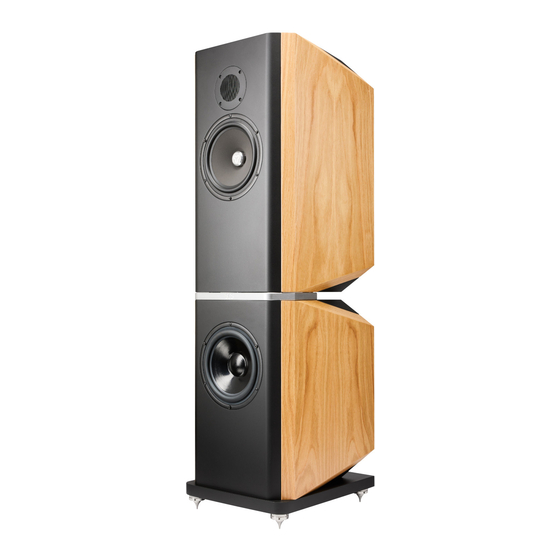

The Titan 808 loudspeaker is made up of two separate cabinets for each loudspeaker unit and are marked serial
number suffix A for one and B for the other. The bass section should be placed into position first and the supplied
spikes, with locknuts, inserted into the plinth. This bass section should be then levelled using the spikes and then
the locknuts tightened to ensure the unit is stable with no rocking motion. If you have a wood, or laminate floor
your dealer should be able to supply floor protectors to avoid spike damage to your floor.
Once the bass section is securely in place, insert the aluminium connecting dowels into the three indents on the top
surface, ensuring that the tapered end is uppermost. The upper cabinet containing the mid-bass and tweeter units
can be carefully lowered down so the connecters are inserted into the matching indents on the bottom of the
cabinet. Care should be taken when carrying out this operation to avoid damage to the cabinet and also not to trap
fingers! There is a little play on these locators so that the front baffles can be perfectly aligned. If in any doubt,
please ask your retailer to support you with this.
