GE Appliances

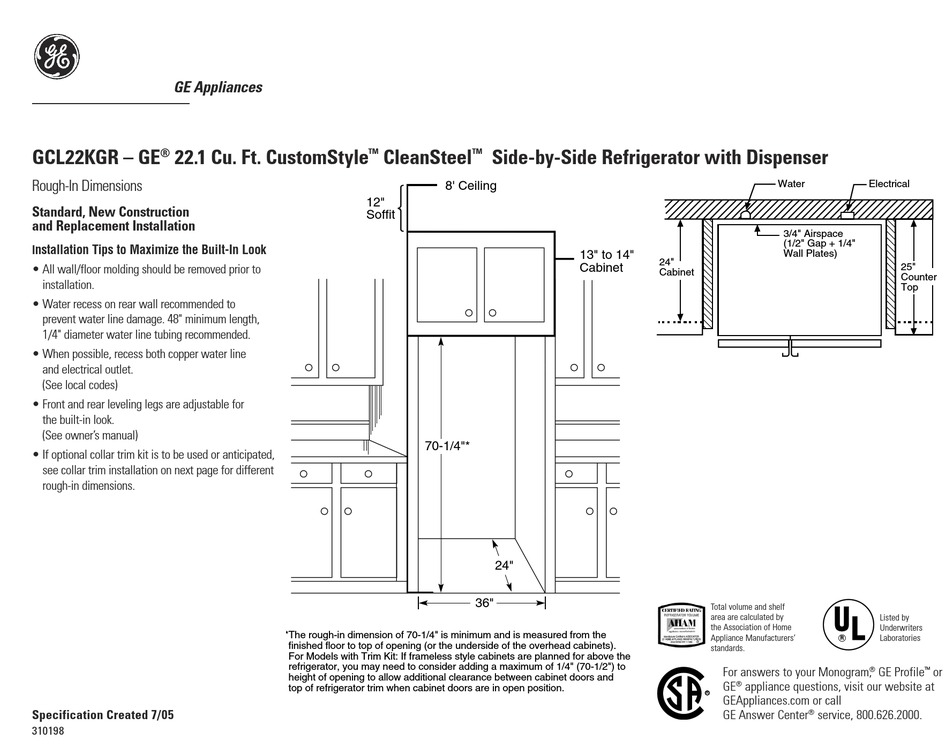

GCL22KGR – GE 22.1 Cu. Ft. CustomStyle
®
Rough-In Dimensions
Standard, New Construction
and Replacement Installation
nstallation Tips to Maximize the Built-In Look
I
• All wall/floor molding should be removed prior to
installation.
• Water recess on rear wall recommended to
prevent water line damage. 48" minimum length,
1/4" diameter water line tubing recommended.
• When possible, recess both copper water line
and electrical outlet.
(See local codes)
• Front and rear leveling legs are adjustable for
the built-in look.
(See owner's manual)
• If optional collar trim kit is to be used or anticipated,
see collar trim installation on next page for different
rough-in dimensions.
Specification Created 7/05
310198
CleanSteel
™
8' Ceiling
8' Ceiling
12"
Soffit
12"
Soffit
70-1/4"*
70-1/4"*
36"
