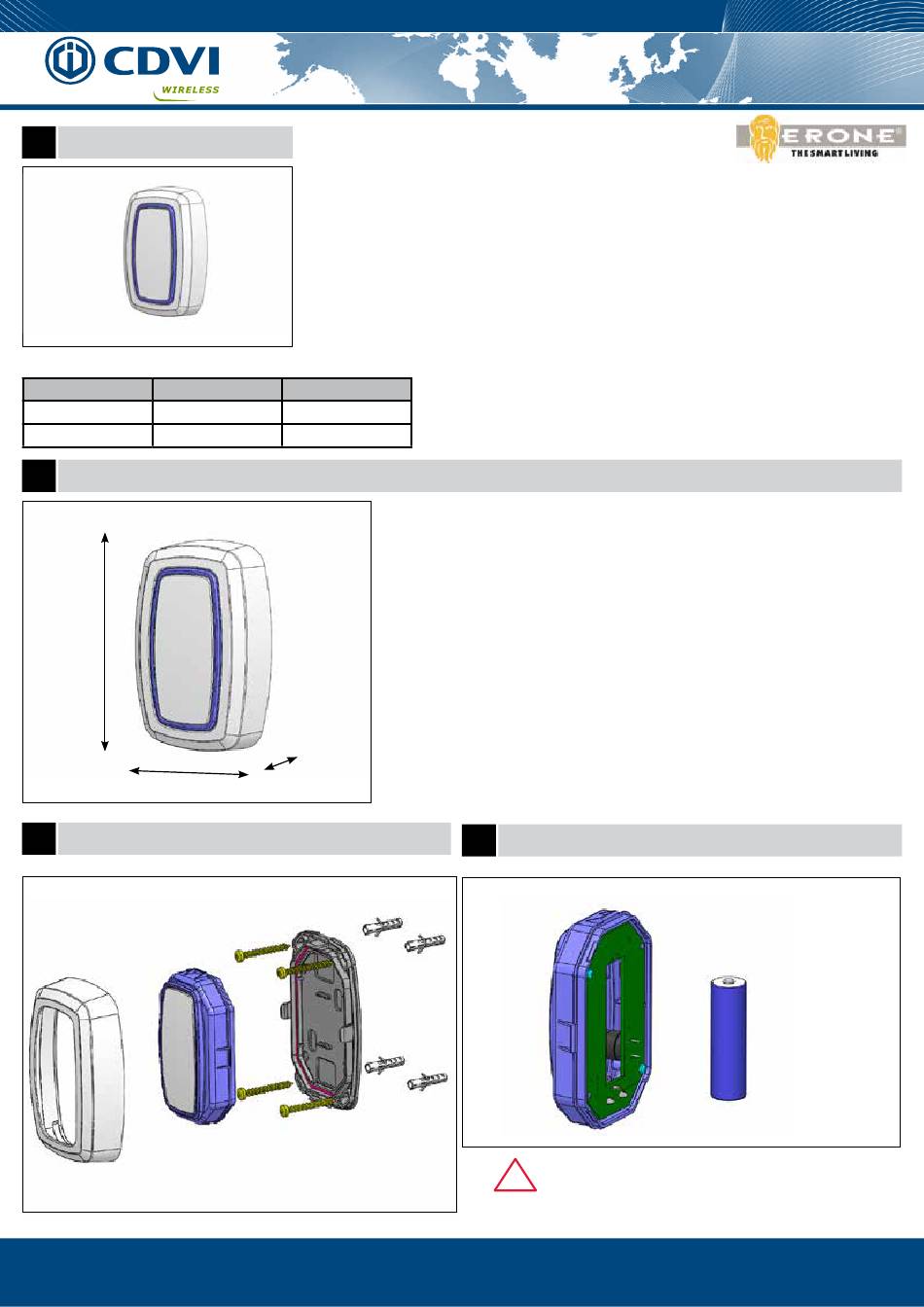

CDVI Erone TTH2641E1B Quick Start Manual

Fabricant de Contrôle d'Accès depuis 1985
1

Introduction

Color
White TTH2641E1B
Black TTH2641E1N
2

Technical Specifications

105
70
Fig. 2
3

Mounting

The installer's choice
1CH TOUCH TRANSMITTER TTH2641E1
The Erone Touch transmitter TTH2641E1 transmitter is a special radio transmitter operating at
433,92 MHz in AM/ASK modulation. It's mainly composed by a capacitive touch sensitive circuit
and by a radio transmitter. It can be used to operate gates, doors or garage doors or any device
with the corresponding compatible 433 MHz receiver.
The security protocol is a KeeLoq® Hopping code .
A special sensor lights the led frame when the hand approaches the device at about 10 cm and
triggers the radio transmission when it touches the front surface.
The enclosure allows outdoor installations ( IP55).
Each product is already factory programmed with a different security code. The transmitter is bat-
Fig.1
tery supplied with a ER14505 lithium battery for 2 year life.
P/N F-code
F0105000011
F0105000012
23,5
www.erone.com - www.cdvigroup.com
Manufacturing Access Control since 1985
FCC ID : PWJTTH
"The device complies with part 15 of the FCC Rules. Operation is subjected to the
following 2 conditions:
(1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation"
Carrier frequency ..............................433,92 MHz
Modulation ........................................AM/ASK
N° channels ......................................1
E.r.p. .................................................300 uW
Battery type ......................................ER14505 Lithium
Operating voltage .............................3,6 Vdc
Current consumption ........................2 µA : stand-by
..........................................................60 mA : transmission
Battery life:........................................ 2 years
Security protocol ...............................KeeLoq® Hopping code
Code combinations ...........................2exp64
Range in open space........................200/300 m
Operating temperature .....................-20°/+80°C
Enclosure IP grade ...........................IP55
Dimensions (mm) .............................105 x 70 x 23,5
Weight ( gr. ) .....................................100
4

Battery replacement

Replace the battery with another identical or equivalent
!
respecting the polarity as indicated above
Fig. 3
NOTE: Please dispose of the batteries correctly, they are
Fig. 3
hazardous waste.
+
_
ER14505
Fig. 4
3,6 V
