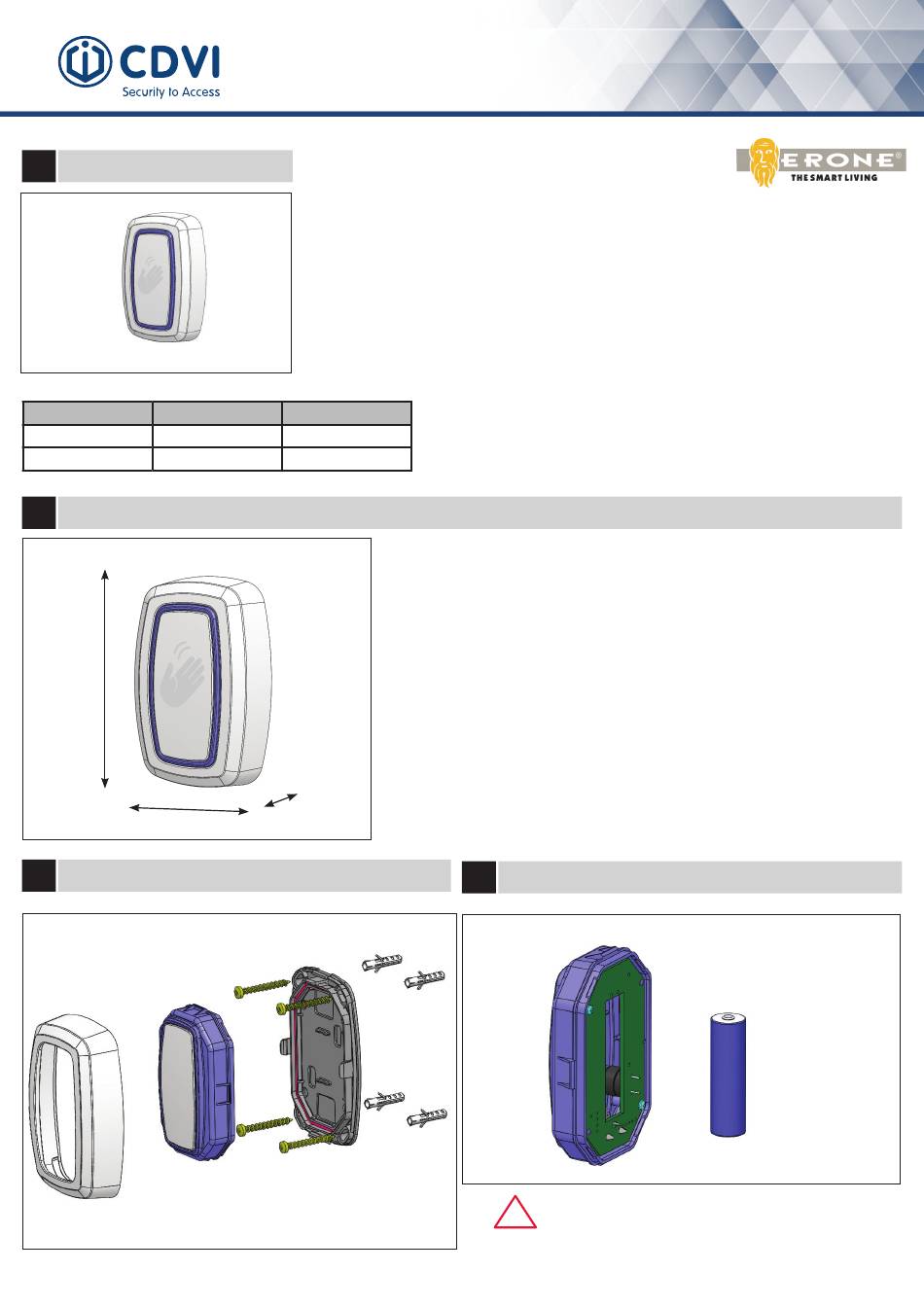

CDVI ERONE TTHS2641E1 Manual

1

Introduction

Color
White TTHS2641E1B
Black TTHS2641E1N
2

Technical Specifications

105
70
Fig. 2
3

Mounting

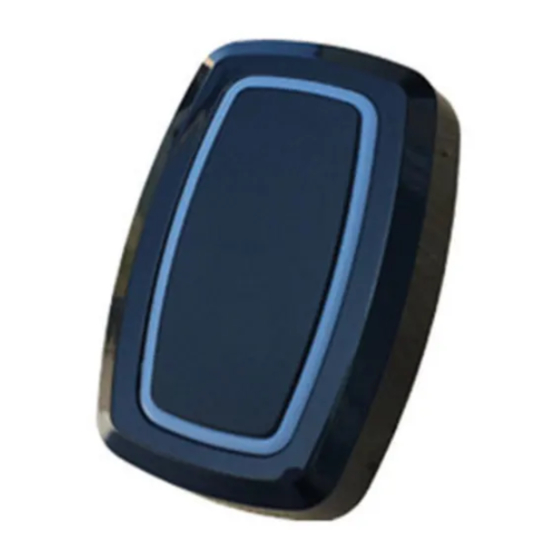

1CH TOUCHLESS TX TTHS2641E1
The Erone Touch transmitter TTHS2641E1 transmitter is a special radio transmitter operating at
433,92 MHz in AM/ASK modulation. It's mainly composed by a capacitive touch sensitive circuit
and by a radio transmitter. It can be used to operate gates, doors or garage doors or any device
with the corresponding compatible 433 MHz receiver.
It finds its best application everywhere the activation must be done without touching the surface,
avoiding in this way any diffusion of bacteries or virus
The security protocol is a KeeLoq® Hopping code .
The enclosure allows outdoor installations ( IP55).
Each product is already factory programmed with a different security code. The transmitter is bat-
Fig.1
tery supplied with a ER14505 lithium battery for 2 year life.
P/N F-code
F0105000013
F0105000014
23,5
FCC ID : PWJTTH
"The device complies with part 15 of the FCC Rules. Operation is subjected to the
following 2 conditions:
(1) this device may not cause harmful interference and (2) this device must accept any
interference received, including interference that may cause undesired operation"
Carrier frequency ..............................433,92 MHz
Modulation ........................................AM/ASK
N° channels ......................................1
E.r.p. .................................................300 uW
Battery type ......................................ER14505 Lithium
Operating voltage .............................3,6 Vdc
Current consumption ........................2 µA : stand-by
..........................................................60 mA : transmission
Battery life:........................................ 2 years
Security protocol ...............................KeeLoq® Hopping code
Code combinations ...........................2exp64
Range in open space........................200/300 m
Activation distance............................4 cm
Operating temperature .....................-20°/+80°C
Enclosure IP grade ...........................IP55
Dimensions (mm) .............................105 x 70 x 23,5
Weight ( gr. ) .....................................100
4

Battery replacement

Replace the battery with another identical or equivalent
!
respecting the polarity as indicated above
Fig. 3
NOTE: Please dispose of the batteries correctly, they are
Fig. 3
hazardous waste.
+
_
ER14505
Fig. 4
3,6 V
