Summary of Contents for Airwell MAY 180

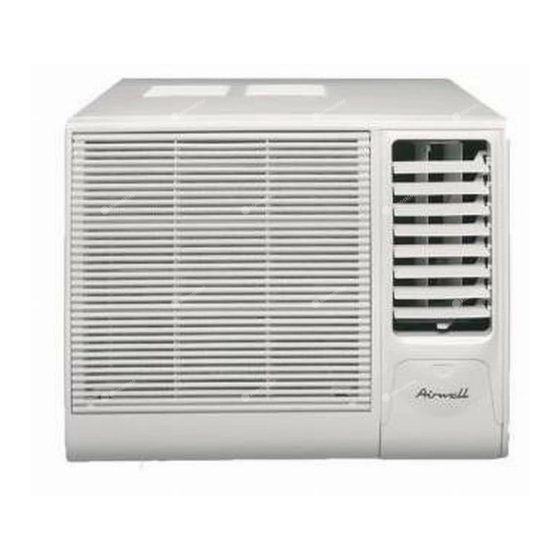

- Page 1 Owner’s Manual High Quality Window Type Room Air Conditioner MAY 180, MAY 220 RCA INST MANUAL...
-
Page 2: Table Of Contents
CONTENTS General Information Name and Function of Components Control Panel Preparations for Operation Cooling Operation Air Circulation Airflow Direction Adjustment Operation, Maintenance and Care Precautions Before calling for Service RCA INST MANUAL... -
Page 3: General Information
GENERAL INFORMATION To ensure that the air conditioner to be used correctly and safely, please proceed the installation in accordance with the installation manual and read through this manual carefully before using the system. Please keep the manual in a safe place after use. This is window - type cooling air conditioner. -
Page 4: Name And Function Of Components
NAME AND FUNCTION OF COMPONENTS Air Outlet Grille Power Cord Plug Intake Grille Control Panel (Inside the Cover) CONTROL PANEL Auto Swing Switch Ventilation Control When the slide level is set at the Left (position of Close), the ventilation door will close. Then the indoor air can only be circulated and adjusted. -
Page 5: Preparations For Operation
PREPARATIONS FOR OPERATION Set the function control switch to “Off”. Insert the power plug, and turn on the power of the unit. Turn the temperature control switch to position to “10” (the coolest) and make preparations for other operations. COOLING OPERATION COOLING OPERATION Turbo Cool Turn the function control switch to “TURBO Cool”... -
Page 6: Air Circulation
AIR CIRCULATION Cool Air Circulation Cool An adequate flow of air is very important for comfort. When the SELECTOR knob is set at “FAN” position, the fan only is adjusted so Turbo Cool that the air is filtered and circulate without cooling effect. If desired, it is possible to expel room air. - Page 7 1. Move the select lever fully left to the NEUTRAL”. To direct air flow to the centre 2. Position the vertical louvre approximate at the centre and move the select lever fully to the right end of the AIR SWING ZONE. AIR SWING 3.
- Page 8 1. Move the select lever fully left to the NEUTRAL”. To direct air flow to the right side 2. Lightly move the vertical louvres to the right until they stop and move the select lever fully to the right end of the AIR SWING ZONE AIR SWING 3.
-
Page 9: Operation, Maintenance And Care
OPERATION, MAINTENANCE AND CARE Room Air Filter. A filter is provided on the rear of the removable panel. Since the function of this filter is to filter dust Removable panel and dirt in the air, please clean it regularly before it Front panel become clogged with dust. -
Page 10: Precautions
PRECAUTIONS The drain outlet is set in the back at the bottom left of the body. Please select a correct draining method in accordance with the installation manual. Please turn off the air-conditioner, turn off the power and inform the service center immediately in the following cases. -
Page 11: Before Calling For Service
PRIOR TO CALLING FOR SERVICE Before calling for service, please check the followings which may correct the failure, saving time and money as well. The air conditioner does not operate Is the power cord connected to the power source? Is the circuit breaker or fuse open or broken? - Close the circuit breaker again or replace the fuse. - Page 12 FAX: (09) 820 0332 517A Rosebank Road Avondale, Auckland NZ NZ Tech Support Freecall TEL: 0800 180 094 www.airwell.com.au WITH A CONCERN FOR A CONSTANT IMPROVEMENT, OUR PRODUCTS CAN BE MODIFIED WITHOUT NOTICE. PHOTOS NON CONTRACTUAL. © Copyright 2003 RCA INST MANUAL...
