Thank you for choosing a Matthews product
We hope that this manual will be one of the reasons for your continued confidence in Matthews
marking products. Therefore any suggestions which can lead to the increased quality of our
instruction manuals will be gratefully received.
Please send any suggestions to
this address:
MATTHEWS SWEDOT AB
Technical Documentation
Box 93
431 22 Mölndal
SWEDEN
techdoc@matthews.se
www.matthewsmarking.com

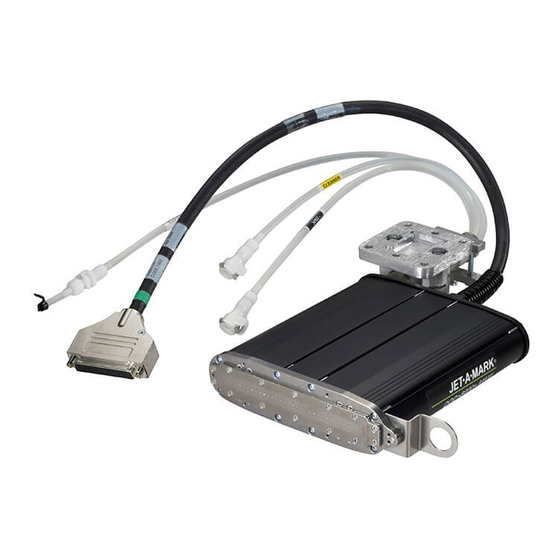

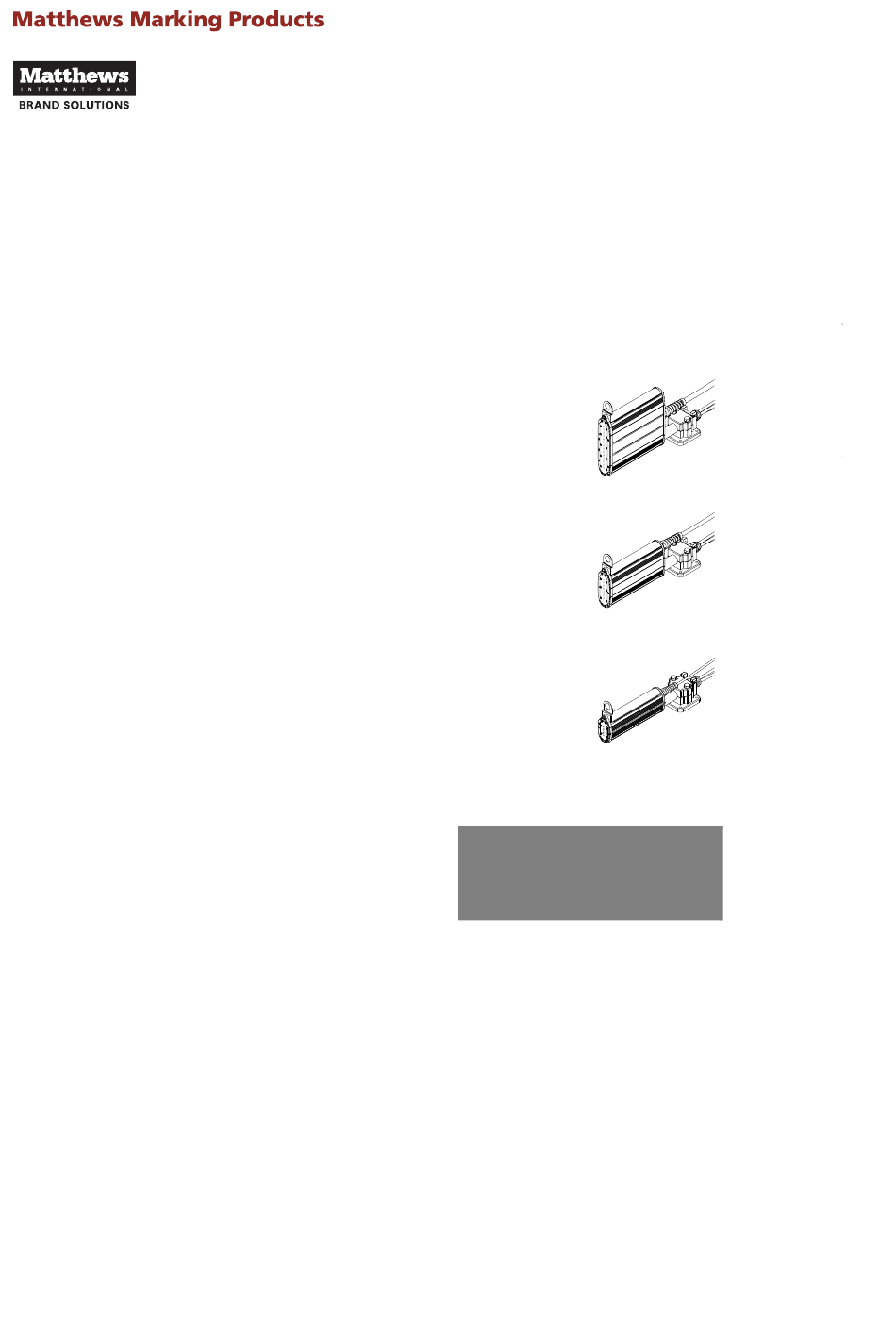

8000+ MINI 32v
8000+ MIDI 32v
8000+ MAXI 32v
8000+ MINI 16v
8000+ MIDI 16v
8000+ MAXI 16v
8000+ MINI 7v
8000+ MIDI 7v
8000+ MAXI 7v
Print Heads
8000+ Range
Technical Manual
Version: 1 Issue: 1
Order number 795 714.01
