Ammo doors B&D TRI-TRAN Coding Instructions

Hide thumbs
1
2
3

Advertisement

Table of Contents

Storing the Transmitter Code

1. Ensure that the battery is inserted into the transmitter.
2. Press the CODE SET button and release.
The CODE SET LED will illuminate to indicate the opener
is in Code Learn mode. If a valid code is not stored within
15 seconds the opener will exit Code Learn
3. Press the transmitter button (one of four) that you want
to control the door. The CODE SET LED will begin to flash.
4. Press the same transmitter button again. The CODE SET
LED will illuminate for one second and then go out.
The transmitter is now coded to operate the door – press the
button to test.
Setting the Transmitter to Operate the
Courtesy Light
Although the courtesy light comes on with each operation of the
opener, it may also be controlled by a transmitter without
operating the door.
1. Press the CODE SET button twice. The CODE SET LED will
illuminate and the courtesy light will turn on to indicate
that the light code learning is active
2. Choose a transmitter button not already coded into the
receiver. Press this button and the CODE SET LED will
begin to flash.
3. Press the same transmitter button again. The CODE SET
LED will illuminate for one second and then go out.
The transmitter is now coded to operate the light – press the
button to test.
: 07 3290 4444
: 07 3290 1614

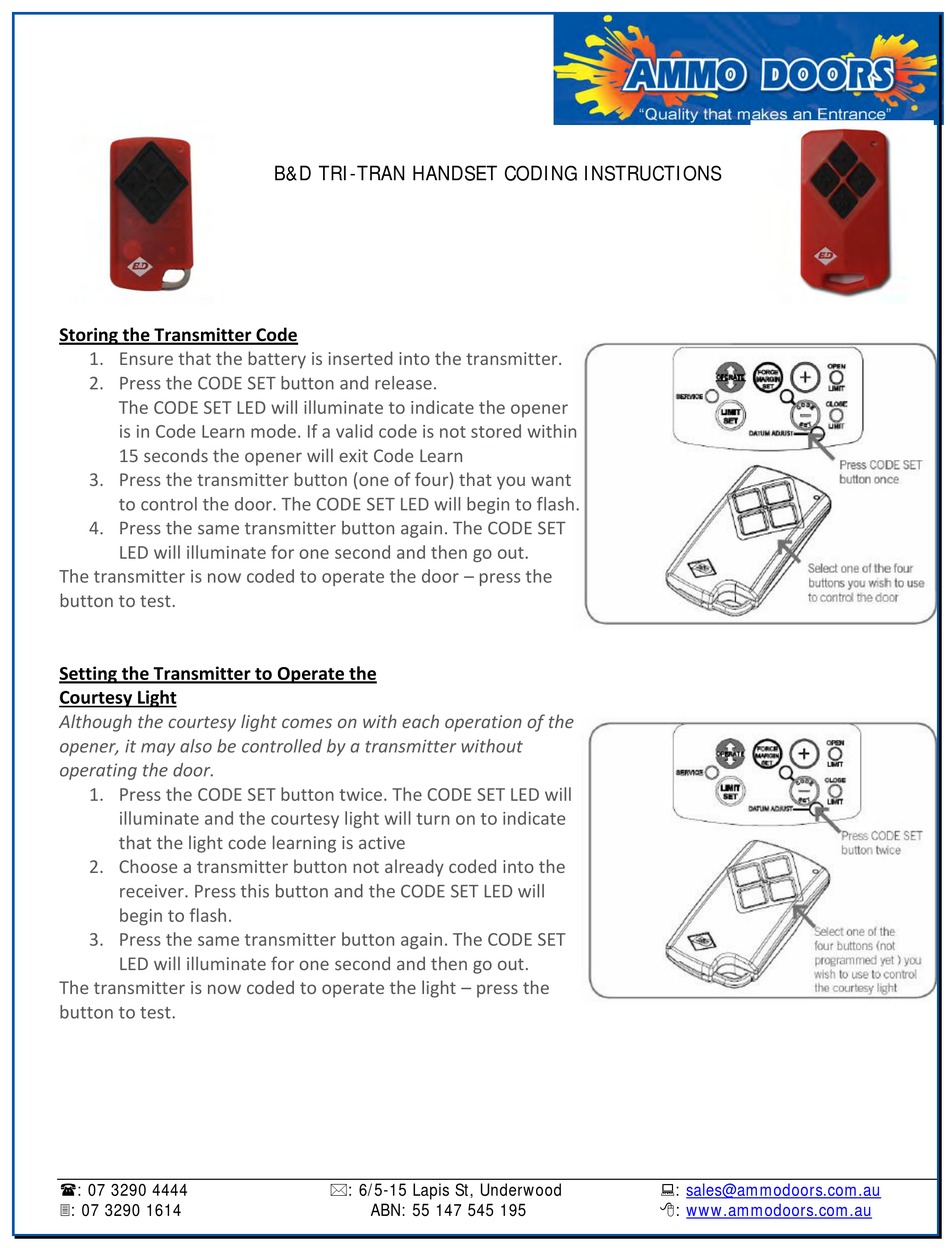

B&D TRI-TRAN HANDSET CODING INSTRUCTIONS
: 6/5-15 Lapis St, Underwood
ABN: 55 147 545 195
sales@ammodoors.com.au
:
www.ammodoors.com.au
:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B&D TRI-TRAN and is the answer not in the manual?

Questions and answers

Related Manuals for Ammo doors B&D TRI-TRAN

Summary of Contents for Ammo doors B&D TRI-TRAN

  • Page 1 B&D TRI-TRAN HANDSET CODING INSTRUCTIONS Storing the Transmitter Code 1. Ensure that the battery is inserted into the transmitter. 2. Press the CODE SET button and release. The CODE SET LED will illuminate to indicate the opener is in Code Learn mode. If a valid code is not stored within 15 seconds the opener will exit Code Learn 3.
  • Page 2 Setting the Transmitter to Operate Vacation Mode The opener can be programmed into a “Vacation Mode” where the opener will not respond to any transmitter except one pre-programmed unit. 1. Press CODE SET button three times. The CODE SET LED will illuminate and the courtesy light will flash slowly (once every two seconds) to indicate Vacation learning mode is active.
  • Page 3 Setting the Transmitter to Operate Pet (Pedestrian) Mode The opener can be programmed into a “Pet Mode” where the door opens partially to allow pets to enter/exit the garage: 1. Press the CODE SET button five times, the CODE SET LED will illuminate and the courtesy light will flash quickly (twice per second) to indicate learning mode for Pet Mode is active.
