Summary of Contents for Blueskysea B2M

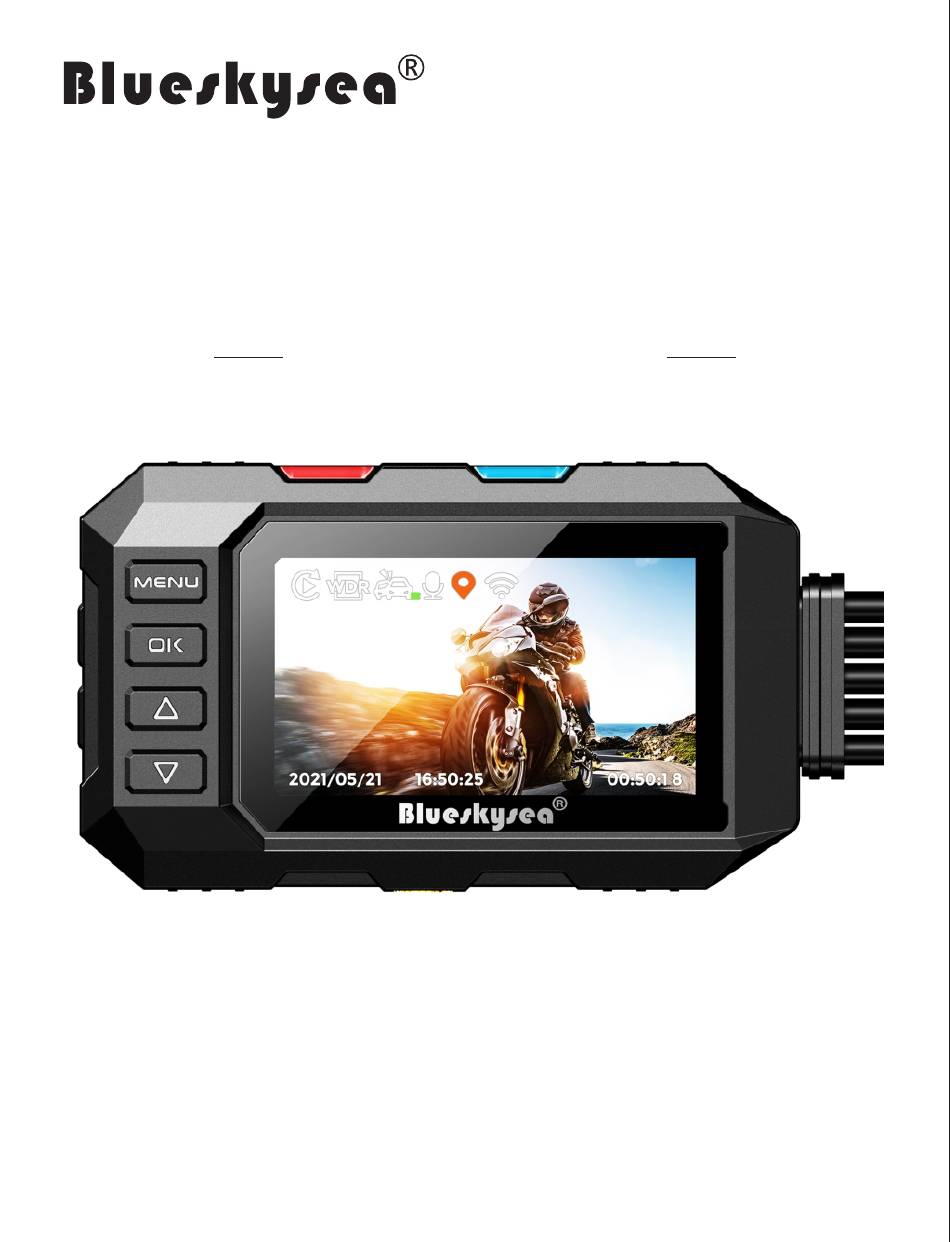

- Page 1 User Manual B2M Motorcycle Camera Thank you for your choosing Blueskysea B2M motorcycle camera. Please read this user manual carefully before use, and keep it for future reference . If you need any assistance please feel free to contact our customer support...
-
Page 2: Main Features
256GB Micro SD Card (not include) 3.B2M motorcycle dash camera supports WiFi function, Connect the B2M DVR to your mobile phone via WiFi, use your mobile phone to easily control the B2M recorder, preview, save, and delete videos or photos. APP Name：UCAM; Computer Software: GPSplayer.exe... -
Page 3: Structure Diagram

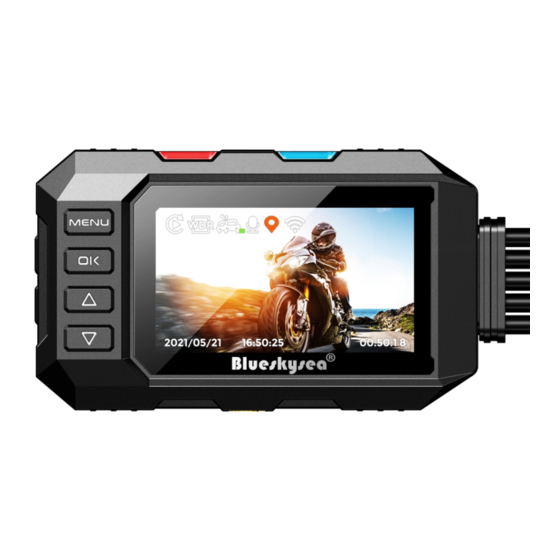

Structure Diagram SD Card Slot Red LED Blue LED MENU Button Power OK Button Wire controller Front camera UP Button Rear Camera DOWN Button MODE Button Bracket slot Power Button support@blueskysea-inc.com... -
Page 4: Package Included
Package Included 1 X B2M DVR Host 1 x Front Camera with Bracket 1 x Rear Camera with Bracket 2 x Lens Extend Cables 1 x DVR Host Bracket 1 x GPS Module 1 x Wire Controller 1 x Hardwire Kit... - Page 5 The camera will stop recording automatically when the ignition is switched off. You can also pause recording by short pressing the "OK" button. Start/Stop WiFi: Long press the “MODE” button on the DVR side for 3 seconds to start/stop the WIFI function. support@blueskysea-inc.com...
-
Page 6: Menu Settings
Frequency 50Hz/60HZ Screen Saver Off/1 Minute/3 Minutes Language English/简体中文,and more Rear cam Mirror ON/OFF Display Front/ Rear/ Front + Rear Plate Number ON/OFF GPS Speed Unit Off/KMH/MPH Time Zone GMT-12:00~GMT+12 Date/Time YYYY/MM/DD HH/MM/SS Default Setting Cancel/Ok Version version info support@blueskysea-inc.com... -
Page 7: Main Menu Settings
G-Sensor as it will disable the automatic lock that occurs when a collision is detected. Time Zone: There are 25 available settings for time zone: GMT-12/-11/-10/-9/-8/-7/-6/ -5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9/10/11/12. It is recommended to set your local time zone first and then set the system time. support@blueskysea-inc.com... -
Page 8: Led Indicator
Set to “OFF”, for no watermark. Version: This setting displays the current internal firmware version. When contacting customer service or support (support@blueskysea-inc.com) please have this information available. LED Indicator Detail Indicator... -
Page 9: Specification
Class 10, 256GB Maximum Power DC 5V Speaker& MIC Support Video Format Image Format Compression method H.264 English,简体 中文，and more Language G-SENSOR Support Loop Recording Support Voice Recording Support Support Item size 4.7x2.7x0.7 inches Working Temperature -20℃ ~ 80℃ Working Humidity 15%~60%RH support@blueskysea-inc.com... - Page 10 Connect to the device WiFI, find " TH001-xxxxxxx" in your phone's WiFi list, it's B2M WiFi Hotpoint, enter default password"12345678" to connect. Note: After connecting to the B2M WiFi Hotpoint, your smartphone may not be able to access the Internet, please set the network data access authority to UCAM.
- Page 11 3. Access APP Open the “UCAM” APP, and click the "Please connect DVR" to connect B2M DVR. After the connection is successful, you can access B2M through the smartphone. support@blueskysea-inc.com...
- Page 12 4. UCAM APP Homepage Details Open the “UCAM” APP, and click the "Please connect DVR" to connect B2M DVR. After the connection is successful, you can access B2M through the smartphone. Back System Setting Recording Current Resolution System Date & Time Coordinate &...
-
Page 13: Video Playback
Open the UCAM Dash Cam App, Press the file button, you will find video files and playback. Playback on PC: 1.Remove the Micro SD card from B2M DVR and connect to the computer USB socket via a micro SD card reader. Once connected, open a file browser and navigate to the SD card. - Page 14 The position of the DVR Unit and camera cables should be away from the high-voltage circuit like a xenon lamp, ignition plug, etc. If your motorcycle is a traditional carburetor system please try to change a suitable R-value ignition plug. support@blueskysea-inc.com -12-...
-
Page 15: Installation Detail
Wired Controller Front Camera 1. The waterproof level of the B2M DVR is IP65. It is recommended to put the DVR under the seat or in a storage compartment. When the DVR is installed on the handlebar of a motorcycle, it’s not recommended to drive on rainy days.(if needed, use a plastic bag to cover the unit for added water protection) -
Page 16: Troubleshooting
(TH1-xxxxxx), open UCAM Dash Cam App. Problem: The DVR machine crashed. Solution 1: Disconnect the power and restart the B2M DVR. Problem: The screen flickers and a purple bar appears. Solution 1: If it happens occasionally, it is normal, you must check that each connection part is secure. -
Page 17: Customer Contact Information
Customer Contact information Official Website: www.blueskysea-inc.com Official Twitter: twitter@Bob59521 Official Facebook: FB@BSSDashcam Tech Support Team: Support@blueskysea-inc.com support@blueskysea-inc.com -15-...
