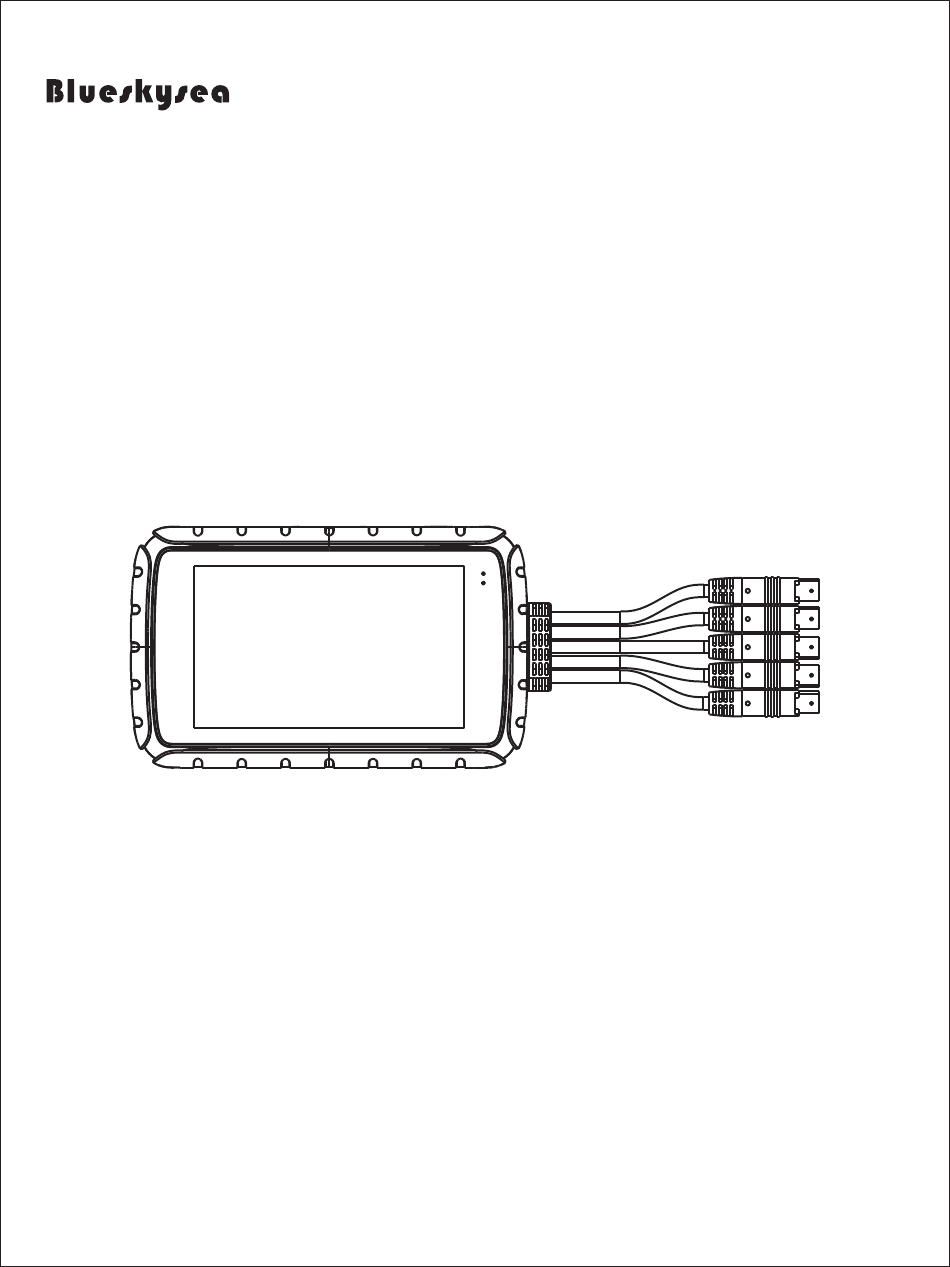

DV988 Motorcycle Camera
Thank you for you choosing Blueskysea DV988 Motorcycle camera. Please
Thank you for choosing Blueskysea DV988 Motorcycle camera. Please
read this user manual carefully before use, and keep it for future reference.
If you need any assistance please feel free to contact our customer support
If you need any assistance, please feel free to contact our customer support
team by email support@blueskysea-inc.com.
team by emailing us at support@blueskysea-inc.com.
User Manual
Advertisement
Table of Contents
Related Manuals for Blueskysea DV988
Summary of Contents for Blueskysea DV988
- Page 1 ® DV988 Motorcycle Camera User Manual Thank you for you choosing Blueskysea DV988 Motorcycle camera. Please Thank you for choosing Blueskysea DV988 Motorcycle camera. Please read this user manual carefully before use, and keep it for future reference. If you need any assistance please feel free to contact our customer support If you need any assistance, please feel free to contact our customer support team by email support@blueskysea-inc.com.
-
Page 2: Table Of Contents
Contents Main features Structure Diagram Package contents Button Function & LED Indicator Specification Display Overview Basic operation Vedio Playback 08-09 APP Install & Use Menu Settings 10-13 Notice Installation Guide Quick Installation Guide Camera Adjustment Camera System installation 16-17 Troubleshooting Customer Contact information... -
Page 3: Main Features
Main features 1. This DV988 Motorcycle camera comes with 2 (two) full HD 1080p cameras. Both the front and rear cameras record high quality video 1080P at 30fps. 2. This product has a 800x480 DPI (dot per inch) display, which can be operated by touch, it is very convenient to use and very bright on day and night. -
Page 4: Package Contents
Package contents 1x DV988 2CH Camera DVR unit 4x Screws for cameras 1x Wired Controller 6x Bandages 1x USB Power Adapter 3x Spare 3M tape 2x 1m connection cable 1x User manual 1x 2m connection cable 1x GPS module (optional) -
Page 5: Specification
Specification Blueskysea DV988 Chipset MSC8339D Sensor GC2053 Lens Optical Parameters 5G(4G+IR),F1.8 Lens Angle 140 degree Video resolution Front: 1080P 30fps Rear: 1080P 30fps Host Waterproof Level IP66 Lens Waterproof Level IP67 Video Codec/Format H.264 / MOV Photo Format JPEG G-sensor... -
Page 6: Display Overview
Display Overview Home view 3 4 5 6 7 8 9 00:45 2015-01-01 00:10:32 Recording mode indicator Video resolution indicator G-sensor Sensitivity indicator Microphone On/Off (mute) indicator Wi-Fi ON/OFF indicator Loop recording time indicator SD card status indicator GPS connect indicator Front and Rear camera status indicator Recording Time indicator Date/Time... - Page 7 Screensaver view Time Speed 08:11 0 0 0 Speed Unit When the screen saver time has expired, the screen displays this view, which i When the screen saver time has expired, the screen displays this view, which ncludes the current time and the current driving speed. includes the current time and driving speed.
-
Page 8: Basic Operation
Open the RoadCam App, Press the video button ,you will find video files. Open the RoadCam App and press the video button to locate the video files. Playback on DV988: 1. Click the menu button in the lower right corner to enter the menu page. -
Page 9: App Install & Use
GPS signal successfully. The GPS route will be displayed on Google maps when you playback the video in GPS Player. (Please download GPS Player software at https://www.blueskysea-inc.com) APP Install & Use APP Install: Search the app "RoadCam" on your phone, download and install it. - Page 10 APP Control: In the APP Preview mode, press "video recording" button to start/stop video recording; recording. In the APP Preview mode, press "photo snap button" to capture photo; In the APP Preview mode, press the menu button on the top right corner to enter main menu setup;...
- Page 11 Settings Picture Wi-Fi connection password 2019/04/01 Sound recording Camera watermark time image1 image2 image3 Cycle record time 1MIN G-Sensor sensitivity When the wehicle collides,the wideo is not coverd automatically when it is hit.It is used to provide the basis for the accident image1 image2...
-
Page 12: Menu Settings
Sets the on-screen display language to English, Japanese,Traditional Chinese, Sets the on-screen display language to English, Japanese, Traditional Chinese, Simplified Chinese. FW Version: This setting displays the current internal firmware version. When contacting customer service or support (support@blueskysea-inc.com) please have this information available. - Page 13 Preference LCD Save: OFF | 1 min | 3min The LCD screen display screensaver view if not used for this time period, if the screensaver is set to Off then the LCD screen will always be on. Having the screen display screensaver view will avoid distracting the driver unnecessarily, especially at night.
- Page 14 Auto-Rec: ON | OFF ON: if the screen is not operated within 30 seconds, it will automatically return to ON: If the screen is not operated within 30 seconds, it will automatically return to the home page and start recording. OFF: If the screen is not operated, it will stay on the current page and will not automatically return to the home page and start recording.
-
Page 15: Notice
Flicker: 50HZ | 60HZ There are two options available: 50Hz/60Hz. This option should be set according to the power supply specifications used in your country or geographical region. For example, US users should select 60HZ value. value. Time Zone There are thirty-three available settings for time zoom: -12:00/-11:00/-10:00/ -9:00/-8:00/-7:00/-6:00/-5:00/-4:00/3:30/-3:00/-2:00/-1:00/0/1:00/2:00/3:00/3:30/ 4:00/4:30/5/5:30/5:45/6:00/6:30/7:00/8:00/9:00/9:30/10:00/11:00/12:00/13:00. -
Page 16: Installation Guide
Installation Guide Quick Test 1. Insert a memory card (minimum 16GB – maximum 256GB) into DVR Unit. 2. Connect cameras A & B on DVR Unit being sure to match the arrows and to not force the connectors. 3. Use the USB cable provided to connect the DVR Unit to a power source, 5V USB phone charger or a USB power bank. -
Page 17: Quick Installation Guide
Quick Installation Guide 1. Locating the proper place to fix the front & rear camera, wired controller, GPS 1. Locate the proper place to fix the front & rear camera, wired controller, GPS tracker (optional) and DVR Unit. 2. Plan the path of camera cables and power cable before installation. Most bikes will require you to remove the fuel tank to properly run the cable for the front camera. -
Page 18: Camera Adjustment
Camera Adjustment Loosen the lens cap, viewing the screen on the RoadCam App on your phone and Loosen the lens cap, and while viewing the screen on the RoadCam App on your phone, rotate the lens body to adjust the horizontal view angle. DVR Unit 360°... - Page 19 Method 2 : The DVR unit is installed under the seat or in a storage compartment. In this installation method, the front camera cable is 2 meters, and the rear camera cable is 2 meters. Front camera Wired controller Back camera There are two supplied installation options for the DVR Unit.
-
Page 20: Troubleshooting
Solution 3: Power off the DVR Unit, close the App and power off your phone. Power on the DVR Unit, power on your phone, connect to the wireless network (NPD_CarDV_WiFi), open RoadCAM App. Customer Contact information www.blueskysea-inc.com twitter@Bob59521 FB@BSSDashcam CS@blueskysea-inc.com Support@blueskysea-inc.com Tel:(213)441-7188 9:00 AM--3:00 PM...
