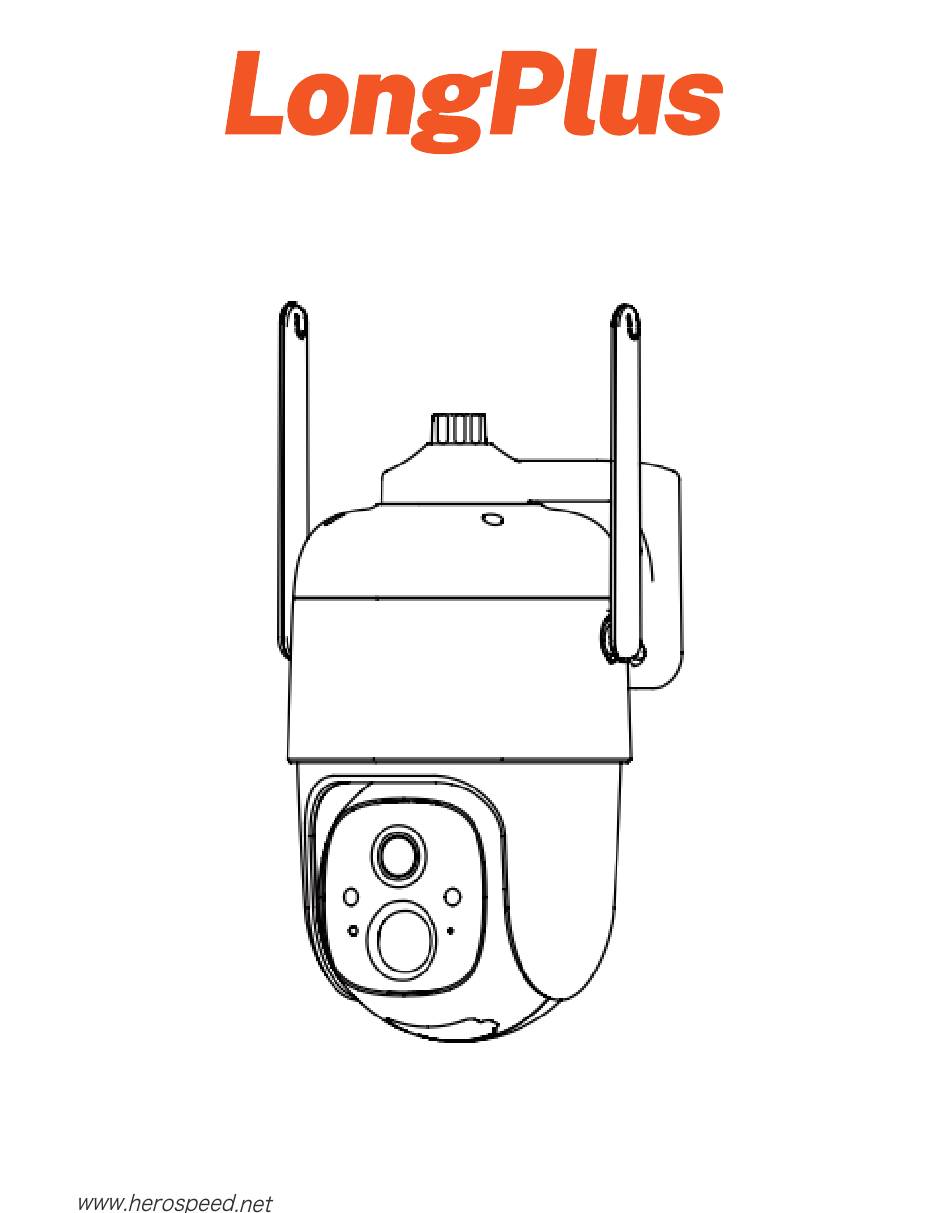

- Page 1 Quick Start Guide Please read the Quick Start Guide carefully before using the product and keep it. Related tools and documents of product, please download from...
-
Page 2: Table Of Contents
Contents 1.Packing list---------------------------------------01 2.Product appearance---------------------------02 3.Quick start---------------------------------------04 4.Set up the camera------------------------------ 06 5.Install the camera---------------------------------11 6.Share the camera---------------------------------14 7.Charge the camera------------------------------17 8.Indicator light status--------------------------18 9.Product specification------------------------18 10.Firmware upgrade -------------------------19 11.FCC warning-----------------------------------19 12.FAQ------------- --- --- ------ ---- --------------20... -
Page 3: Packing List
Packing list 1. Camera*1 2. Bracket*1 3. Mounting kit*1 4. USB charging cable *1 5. Operation instruction*1 6. Screw for bracket*1... -
Page 4: Product Appearance
Product appearance Wi-Fi antenna Lens Infrared lamp White light Indicator light Human body infrared sensor... - Page 5 Micro-USB port Speaker Micro-SD card slot Reboot hole Power button...
-
Page 6: Quick Start
Quick start The smart battery camera supports battery-powered supply and AC-powered supply. 1. Download and install the App The wireless smart battery camera supports Android and iOS App. For your best experience, please scan the QR code below with your mobile phone, install the app, and follow the instruction to complete the user registration. - Page 7 2. Add the device Sign in to the App connect to Wi-Fi and add the device according to the prompts (please bring the device close...
-
Page 8: Set Up The Camera
Set up the camera 1) Click the "Add Device" in the App and enter the Wi-Fi network name and password that you want the camera to connect. - Page 9 2) To ensure a longer distance connection, the camera only supports the 2.4Ghz Wi-Fi with stronger wall penetration capability and does not support Wi-Fi for enterprise level authentication currently. Please ensure that the entered Wi-Fi meets the requirements. After completion, click "Next" to generate the QR code for pairing the camera.
- Page 10 Dong Ding Dong" after it is turned on (if you do not hear it, please double click the power button). Power button 4) Take the lens of the camera facing the QR code generated on LongPlus about 20 cm (7 inches) until you hear a "Ding" sound. about 7 inches (20cm)
- Page 11 5) After a while, the camera will give out a prompt sound of a successful connection. At this moment, please set the name for the device on the App and select the location you want to place the device. Click "Done" to complete the pairing.
- Page 12 Possible problems with binding: When you hear the " Wi-Fi Password Error" , please check whether the Wi-Fi password you entered in the App is correct; When you hear the "Authentication error" , please ensure that your Wi-Fi network is not an enterprise-level network, and the device supports only the network with the security level below WPA-2;...
-
Page 13: Install The Camera
Install the camera You can place the camera on a shelf or other surfaces to use, or you can install it on a wall to use. (1) Select a good spot for your camera Select a good spot for your camera, please install the camera in a position where its view is not blocked and ensure that it is within the coverage of the Wi-Fi network. - Page 14 ommended height About 6 ft For outdoor use, please install the camera upside down to maximize the waterproof performance and the human body infrared sensor' s effectivity. (2) Install the bracket Fix the camera to the desired location. You can directly place ceiling by screws.
- Page 15 2) Fix the camera bracket by a screw .
-
Page 16: Share The Camera
Share the camera When you want to let other family members or friends view the camera, you can use this feature. Only the admin user and manage the settings for the camera. The shared users have limited access rights. (1) Steps for Admin User Find the camera you want to share on the App homepage or camera setting page. - Page 17 2) Tap "Camera sharing", a QR code for sharing will be generated.
-
Page 18: Charge The Camera
(2) Steps for Shared User For the family members or friends you want to share, find "Add friend's camera" on the Homepage to enter the scan code page, then scan QR code generared on the admin's phone, then send the access request to the admin user. Charge the camera The App will remind you to charge your camera when the battery is low. -
Page 19: Indicator Light Status
Indicator light status Mode Status Working mode Blue Sleep mode Charging mode Yellow Fully charged mode Green Item Camera lens Field of view: 110° Image resolution Max. 1920 X 1080 Video bit rate Adaptive Storage media Micro SD card (Up to 128GB) Rotation Angle 355°... -
Page 20: Firmware Upgrade
Firmware upgrade When you connect your camera through the App, it will manually check the firmware version in the settings of the App. Please make sure that your camera is fully charged or connected to the power adapter before upgrading the the upgrading. - Page 21 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 22: Faq
1.Q:Camera permission management: How to invite family and friends to use my camera together? A: Open the App and select your camera on the home page. Click the share button on the home page or the "Share" in the camera settings to enter the sharing page, and then click "Invite"... - Page 23 5.Q:How far should the camera be placed from the router? A: After testing, the Wi-Fi connection distance can normally reach up to150 meters in the open area. However, the actual situation depends on the strength of Wi-Fi and its surrounding environment (thick walls, electromagnetic devices, large metal objects will all cause interference to the Wi-Fi signals).
- Page 24 V1.0...
